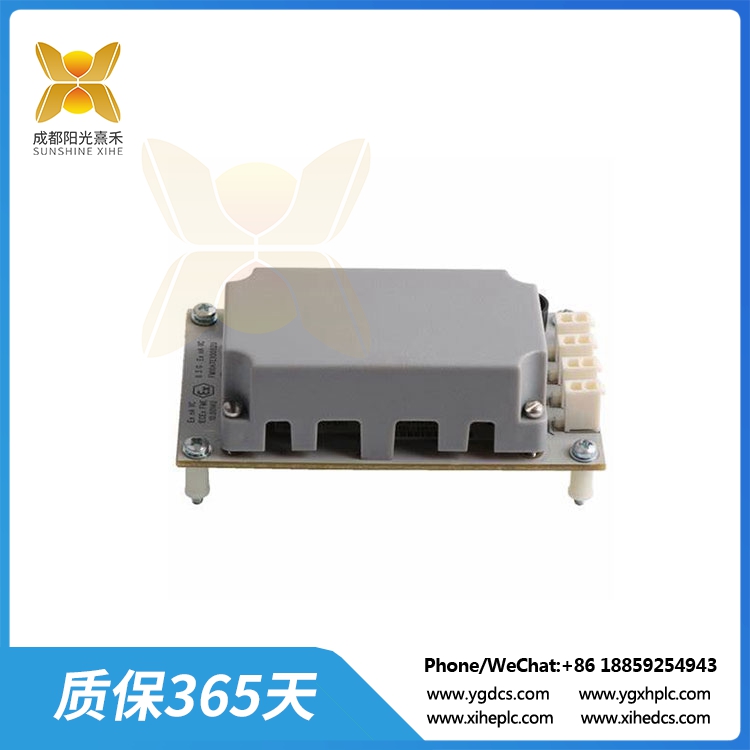

CC-SCMB02 C300内存备份组件

Description

CC-SCMB02 C300内存备份组件

制造商:霍尼韦尔

产品编号:CC-SCMB02

产品类型:C300内存备份组件

运输重量:2kg

特性
所有系列C组件具有创新的设计，支持增强的热管理。这种独特的外观显著减小了等效函数的总体尺寸。

C系列I/O的独特功能包括:
•I/O模块和现场终端组合在同一区域。I/O模块插入IOTA，以消除需要一个单独的机箱来容纳电子组件。
•两层“可拆卸”端子，用于将现场布线降落在外壳中，提供更容易的设备安装和维护。
•现场供电通过IOTA提供，不需要额外的电源和相关的工艺有线编组。
•IOTA直接提供冗余，无需任何外部电缆或冗余控制设备，只需向IOTA添加第二个IOM。
•C系列创新的造型是其独特的特点之一。这种样式包括
•垂直安装更有效的布线，因为大多数现场布线应用需要从系统柜的顶部或底部进入。
•一个“信息圈”，用于快速视觉提示，以吸引维护技术人员注意重要的状态信息。
•“倾斜”设计，在机柜外壳内进行有效的热量管理。由于C系列允许显着增加机柜密度，因此有效的热管理系统对于高系统可用性至关重要。
•输入和输出电路免受短路保护，以减轻在线熔断的需要，降低安装和维护成本

CC-SCMB02

CC-SCMB02 C300内存备份组件

Manufacturer: Honeywell

Product number: CC-SCMB02

Product type: C300 Memory backup component

Shipping weight: 2 kg

Features
All Series C components feature an innovative design that supports enhanced heat management. This unique lookprovides a significant reduction in overall size for the equivalent function.

The unique features of Series C I/O include:
• I/O Module and field terminations are combined in the same area. The I/O Module is pluggedinto the IOTA to eliminate the need for a separate chassis to hold the electronics assemblies.
• Two level “detachable” terminals for landing the field wiring in the enclosure, providing easierplant installation and maintenance.
• Field power is supplied through the IOTA, with no need for extra power supplies and theassociated craft wired marshalling.
• Redundancy is available directly on the IOTA without any external cabling or redundancy controldevices, by simply adding a second IOM to an IOTA.
• The Series C innovative styling is one of its unique features. This styling includes
• Vertical mounting for more effective wiring since most field wiring applications require entry from the top or bottom ofthe systems cabinet.
• An “information circle” for a quick visual cue to draw the Maintenance Technician’s eye to important statusinformation.
• “Tilted” design for effective heat management within the cabinet enclosure. Since Series C allows for a significantincrease in cabinet density, an effective heat management system is critical for high systems availability.
• Input and output circuits are protected from shorts to alleviate the need for in-line fusing, reducing installation andmaintenance costs
