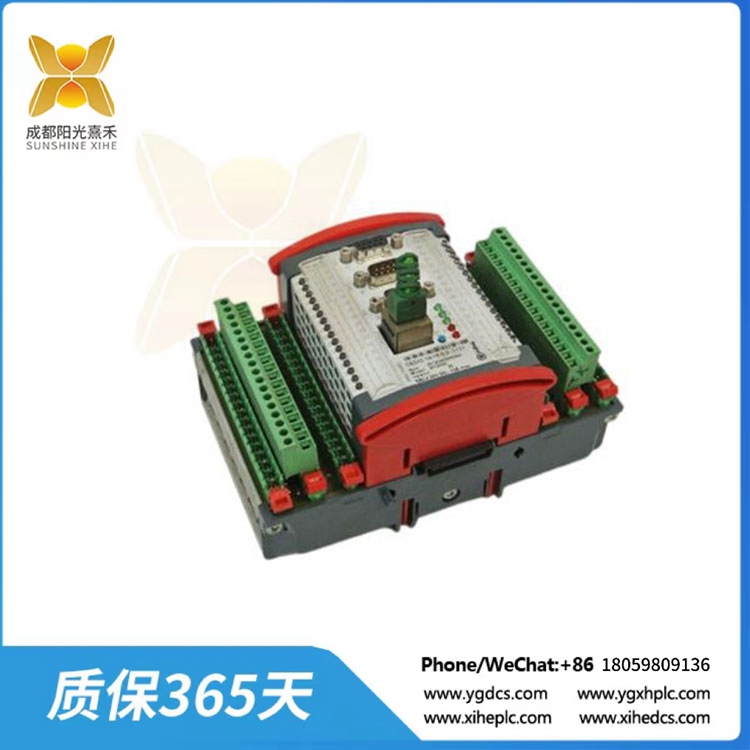

CDIO-1616-0 伺服驱动器

Description

CDIO-1616-0 伺服驱动器

CDIO 16/16-0,5提供了分布式智能透明自动化解决方案。除了它的实时处理器技术上,本模块具有16个数字的特点输入加上板上16个单独可配置的数字l/o。具有较小的空间要求CDIO 16/16-0,5是分布式解决方案的理想选择。设计为在线配置,这个模块简单地固定在标准轨道上。如果根据本地扩展的需要,最多为6外挂模块可按要求安装CDIO 16/16-0,5.模块化打展总线(E- Bus)用于相关的连接。这样设置的控制单元为通过can总线联网，该模块提供了一个成熟的CANCAL主/从实现和- -个CANopen的主实现作为IEC 1131和”C”的库。
–选择电源
I/O电源通过信号级提供连接器。I/O可以分为六组单独提供。每个组的I/ o从而可以有选择地从通过外部执行器供电。的信号电平为24VDC。
–字段级连接
信号级别是出厂配置的易于布线的连接器条。连接在前端。选择三种连接技巧中的任何- -种:
●螺钉连接
●弹簧锁
卷边
1/ o使用3条弓|线。前面板led提供关于I/O的信息状态和运行状态模块。led直接映射到/O端口，以便即时识别。标签条可以插入以识别每个/O通道。
–标准编程工具
像所有的Berghof control系列产品-样，CDIO 16/16-0,5是由指的是运行Windows XP的个人电脑。你会不会用你的编程软件选择。根据您的具体要求，选择符合IEC 1131-3的SPS用IL、LD、 FBD或高级语言”C” 编程。我们提供了广泛的工具来支持您处于软件开发的各个阶段。

CDIO-1616-0

CDIO-1616-0 伺服驱动器

CDIO 16/16-0,5 provides a distributed intelligent transparent automation solution. In addition to its real-time processor technology, this module features 16 digital inputs plus 16 individually configurable digital l/ OS on the board. With small space requirements CDIO 16/16-0,5 is ideal for distributed solutions. Designed for online configuration, this module is simply fixed to a standard track. If a maximum of 6 external modules are required for local expansion, install CDIO 16/16-0,5. The modular Expansion bus (E-Bus) is used for related connections. The control unit is so set up for networking via the can bus that the module provides a full-fledged CANCAL master/slave implementation and – a CANopen master implementation as an IEC 1131 and “C” library.
— Select power supply
The I/O power supply provides connectors through the signal level. I/O can be provided separately in six groups. Each group of I/ o can thus be selectively powered from an external actuator. The signal level is 24VDC.
— Field level connection
Signal levels are factory-configured connector strips for easy wiring. Connect at the front end. Choose any of the three connection techniques:
● Screw connection
● Spring lock
hem
1/ o Use 3 bow | lines. Front panel leds provide information about I/O status and operational status modules. Leds are mapped directly to the /O port for instant recognition. Label strips can be inserted to identify each /O channel.
— Standard programming tools
Like all Berghof control products, CDIO 16/16-0,5 refers to personal computers running Windows XP. You will not use your programming software to choose. Depending on your specific requirements, choose IEC 1131-3 compliant SPS programmed in IL, LD, FBD or the high-level language “C”. We offer a wide range of tools to support you in all stages of software development.
