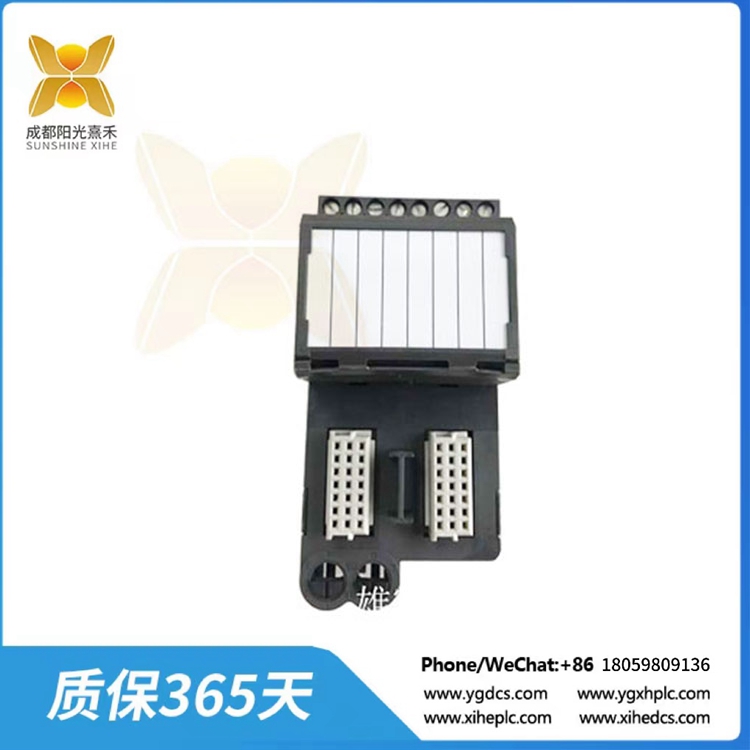

CE4005S2B1 DeltaV™s系列传统I/O

Description

CE4005S2B1 DeltaV™s系列传统I/O

介绍
s系列传统I/O接口提供了改进的安装便利性，具有m系列I/O接口相同的经过验证的功能。这种模块化I/O子系统在安装过程中提供灵活性，专为现场安装的极端环境条件而设计。s系列传统I/O配备了一个快速安装的固定系统。I/O接口可以安装在64个槽位中的任何一个槽位上。

所有的线路都是通过载体和终端块，所以模块可以很容易地拆除，而不断开任何电线。模块化、快速安装、在线扩展和环境坚固的硬件使DeltaV™s系列传统I/O成为您过程控制系统的明智选择。

优点
模块化和灵活的结构:s系列传统的i /O子系统的设计考虑到您的投资。每个控制器支持多达8个I/O载波，形成一个强大的无源总线，最多可提供64个I/O接口。每个接口都有一个匹配的I/O终端块，可以安装在总线上的任意I/O插槽中。运营商和接口可以在线添加，而不会中断现有的I/O通信。

这种模块化设计使您能够购买所需的确切数量的I/O卡，八宽载波，电源/控制器和两宽载波，并随着系统的增长添加更多的DeltaV I/O。

减少安装时间和费用:DeltaV系统的s系列I/O接口设计用于快速组装和防错误维护。所有载波卡在T-DIN导轨上，接口卡在I/O插槽上，无需使用任何工具。

每个I/O接口都有一个单独的接线端子块，将现场接线连接到接口。I/O卡可以很容易地拆卸，而不需要触摸终端块上的I/O接线。一些I/O卡也可以使用熔断端子块，该端子块配备了可拉出的在线熔断器，以隔离电源到现场电路。

传统的I/O接口具有I/O功能键，允许将终端块设置为接收特定的I/O卡。这些键确保正确的I/O卡总是插入相应的终端块。密钥通过防止安装错误的I/O卡提供安全措施。它非常容易使用，给你时间做更多的事情。

CE4005S2B1

CE4005S2B1 DeltaV™s系列传统I/O

introduce
The S-Series legacy I/O interface offers improved installation convenience with the same proven functionality as the M-Series I/O interface. This modular I/O subsystem provides flexibility during installation and is designed for the extreme environmental conditions of field installations. The S-Series traditional I/O is equipped with a fixed system for quick installation. The I/O port can be installed in any of the 64 slots.

All the wiring is through the carrier and the terminal block, so the module can be easily removed while constantly opening any wires. Modular, fast installation, online scalability and environmentally robust hardware make the DeltaV™s Series legacy I/O a smart choice for your process control system.

advantage
Modular and flexible construction: The S-Series traditional i /O subsystems are designed with your investment in mind. Each controller supports up to eight I/O carriers, forming a powerful passive bus that can provide up to 64 I/O interfaces. Each interface has a matching I/O terminal block that can be installed in any I/O slot on the bus. Carriers and interfaces can be added online without interrupting existing I/O communication.

This modular design enables you to purchase the exact number of I/O cards, eight-width carriers, power/controllers and two-width carriers you need, and add more DeltaV I/O as your system grows.

Reduce installation time and expense :DeltaV systems’ s Series I/O interfaces are designed for quick assembly and error-proof maintenance. All the carrier cards are on the T-DIN rail and the interface cards are on the I/O slots without the use of any tools.

Each I/O interface has a separate block of terminals to connect the field wiring to the interface. The I/O card can be easily removed without touching the I/O wiring on the terminal block. Some I/O cards can also use a fusible terminal block, which is equipped with a pull-out in-line fuse to isolate power to the field circuit.

Traditional I/O interfaces have I/O function keys that allow the terminal block to be set to receive a specific I/O card. These keys ensure that the correct I/O card is always inserted into the corresponding terminal block. Keys provide security by preventing the installation of incorrect I/O cards. It’s very easy to use and gives you time to get more done.
