CFP-AO-200 Compact FieldPoint模拟输出模块

Description

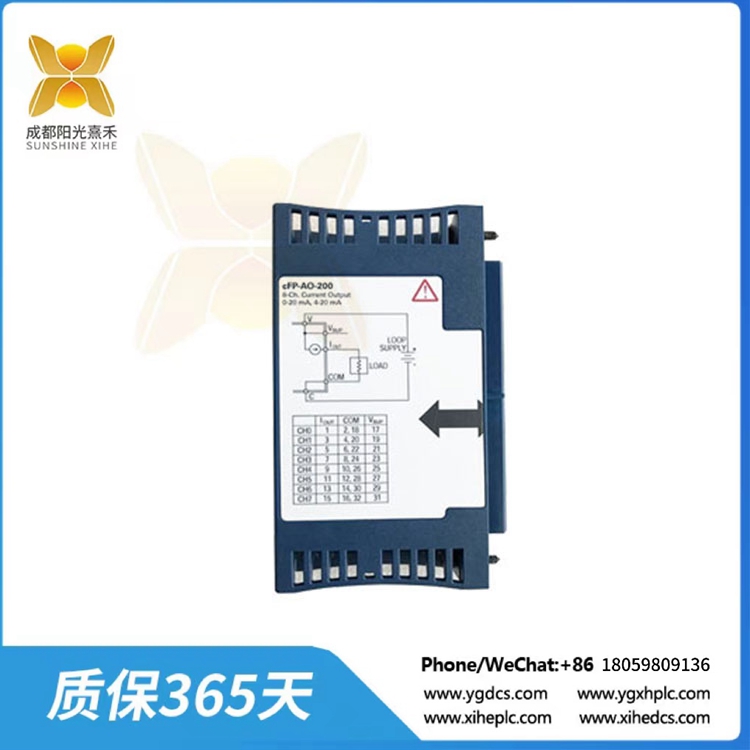

CFP-AO-200 Compact FieldPoint模拟输出模块

cFP-AO-200(零件号:777318-200)包含一个开路位置，用于接线和传感器调查，并为接线错误提供短路保险。每个通道都可以单独配置。为了降低建立和设置的要求，美国国家仪器公司的cFP-AO-200突出了HotPnP(装配和播放)任务，因此它被安排编程识别和区分。使用cFP-AO-200模块，用户可以直接与机械执行器或被测单元连接，并获得高精度功率。I/O模块根据传感器信号调整和扩展构建单元，同时还执行自我诊断以搜索模块或布线的问题，例如打开的动量圈。NI cFP AO 200模块的更新速率为200hz。一般来说，到控制器或PC的信息吞吐量取决于产品周期速度和系统速度。

该模块包含8个0至20 mA或4至20 mA简单产量输出通道(超量程为0.5 mA)，采用12位DAC生产，更新率为200 Hz。每个产量通道包含一个检查电路和用于开路电流环位置的LED标记。NI cFP-AO-200需要外部供电，供电电压为5 ~ 24 VDC。它可以防止短路，并在模块间通信总线和I/O通道之间具有2,300 Vrms瞬态过电压保护。NI器件的最大转换率为每秒200次更新，转换率为每微秒0.4 mA。

紧凑的FieldPoint模块包含一个隐式的权力传输传输，在模块上提供不同的权力关联。与电压(V)和正常(C)端子相关联的现场有线电源在内部与电源循环传输相关联，该传输为电压供应(VSUP)和正常(COM)提供额外的分断端子。这些终端提供了一种有用的方法来分散处理需要外部电源的小工具的容量。该设备重3.7盎司，尺寸为5.00 x 2.60 x 0.94英寸。在物理维度上。推荐使用温度范围为-40 ~ 70℃，存储温度范围为-55 ~ 100℃。

cFP-AO-200可进行校准。虽然个别零件的建议校准周期各不相同，但大多数零件应每年或每两年校准一次，以确保准确性。如果您需要校准cFP-AO-200, Apex Waves提供选项。我们通过第三方提供高质量的NIST认证校准，平均周转时间为1至2周。当您向我们订购cFP-AO-200时，您可以要求基本的(未经认证的)内部校准，该校准将在发货前将部件校准为制造商规格。

CFP-AO-200

CFP-AO-200 Compact FieldPoint模拟输出模块

The cFP-AO-200 (Part number: 777318-200) incorporates an open-circuit location for wiring and sensor investigating and shorting out insurance for wiring mistakes. Each channel is separately configurable. To make establishment and setup less demanding, the National Instruments cFP-AO-200 highlights HotPnP (fitting and-play) tasks, so it is consequently recognized and distinguished by the arrangement programming. With the cFP-AO-200 module, the user can straightforwardly interface with mechanical actuators or units under test and gain high-exactness power. The I/O modules adjust and scale building units to sensor signals, while also performing self-diagnostics to search for issues with the module or with the wiring, such as open momentum circles. The NI cFP AO 200 module has an update rate of 200 Hz. In general, information throughput to the controller or PC relies upon the product circle speeds and the system speeds.

This module incorporates eight 0 to 20 mA or 4 to 20 mA simple yield output channels (with an overranging of 0.5 mA), produced with a 12-bit DAC, and with an update rate of 200 Hz. Each yield channel incorporates a checking circuit and LED marker for open current circle location.   The NI cFP-AO-200 requires an outside power supply that gives 5 to 24 VDC. It is protected against short-circuits, and has a 2,300 Vrms transient overvoltage protection between the inter-module communication bus and the I/O channels. The NI device has a maximum conversion rate of 200 updates per second, and a slew rate of 0.4 mA per microsecond.

Compact FieldPoint modules incorporate an implicit power conveyance transport that gives different power associations on the module. A field wired power supply associated with the voltage (V) and normal (C) terminals is inside associated with a power circulation transport that gives extra breakout terminals to voltage supply (VSUP) and normal (COM). These terminals give a helpful method to disperse capacity to handle gadgets that require outer power. The device weighs 3.7 oz., and measures 5.00 x 2.60 x 0.94 in. in physical dimensions. It has a recommended operating temperature range of –40 to 70 °C, and a storage temperature range of –55 to 100 °C.

The cFP-AO-200 is available to be calibrated. While the recommended calibration period for individual parts varies, most parts should be calibrated either annually or every two years to ensure accuracy. If you need the cFP-AO-200 calibrated, Apex Waves provides options. We offer high-quality NIST accredited calibrations through a 3rd party, with an average turnaround time of 1 to 2 weeks. When you order the cFP-AO-200 with us, you can request basic (unaccredited) in-house calibration that will calibrate the part to the manufacturer specifications prior to being shipped.
