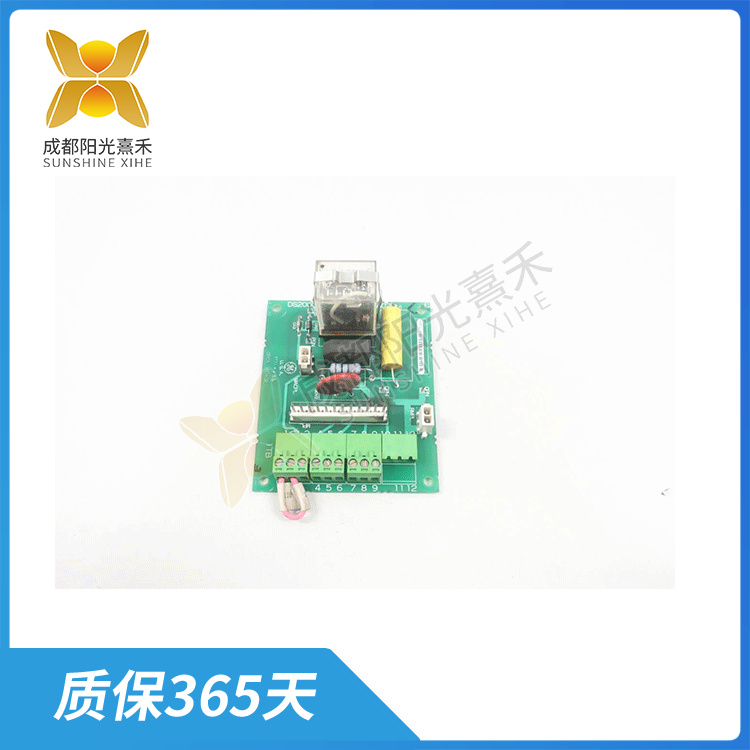

DS200CPCAG1ABB 电源连接板

Description

DS200CPCAG1ABB 电源连接板

DS200CPCAG1ABB是一个通用电气（GE）的电源连接板，通常用于PLC系统。这种电源连接板在工业自动化和控制系统中扮演着关键角色，确保电源的稳定供应和系统的正常运行。

在PLC系统中，接地问题尤为重要，DS200CPCAG1ABB电源连接板在接地方面也有严格的要求。为了确保系统的稳定性和安全性，最好使用独立的专用接地系统，并注意与其他相关设备的可靠接地。此外，不正确的接地可能导致电流问题，如逻辑错误、电路损坏或设备破坏，因此，PLC系统通常选用一点接地方式。

DS200CPCAG1ABB电源连接板还具有一些特定的配置功能。它配备了四个可配置跳线（JP1、JP2、WP3和WP4），这些跳线用于设置特定于应用的配置，通知驱动器缓冲电容器是否连接到电源桥与电压反馈通道相同的点。这些跳线的具体设置取决于系统的具体需求和应用场景。

此外，DS200CPCAG1ABB电源连接板在设计和使用上需要遵循一定的步骤和原则。对于较复杂的系统，需要绘制功能图；对于简单的控制系统，则可以省略这一步骤。然后，需要设计梯形图程序，并根据梯形图编写指令表程序。最后，对程序进行模拟调试和修改，直到满足控制要求。

总的来说，DS200CPCAG1ABB电源连接板是工业自动化和控制系统中的重要组成部分，其正确的安装、配置和使用对于确保系统的稳定性和安全性至关重要。在实际应用中，需要根据系统的具体需求和应用场景来选择合适的配置和使用方法。

DS200CPCAG1ABB 电源连接板

The DS200CPCAG1ABB is a General Electric (GE) power connection board commonly used in PLC systems. These power strips play a key role in industrial automation and control systems, ensuring a stable supply of power and the normal operation of the system.

In the PLC system, the grounding problem is particularly important, and the DS200CPCAG1ABB power connector also has strict requirements in terms of grounding. In order to ensure the stability and safety of the system, it is best to use an independent dedicated grounding system, and pay attention to reliable grounding with other related equipment. In addition, incorrect grounding can lead to current problems, such as logic errors, circuit damage or equipment damage, so PLC systems usually choose a one-point grounding method.

The DS200CPCAG1ABB power strip also has some specific configuration features. It comes with four configurable jumpers (JP1, JP2, WP3, and WP4) that are used to set an application-specific configuration that informs the driver whether the buffer capacitor is connected to the same point in the power bridge as the voltage feedback channel. The specific Settings of these jumpers depend on the specific requirements and application scenarios of the system.

In addition, the DS200CPCAG1ABB power connection board needs to follow certain steps and principles in design and use. For more complex system, it is necessary to draw function diagram; For simple control systems, this step can be omitted. Then, it is necessary to design the ladder diagram program and write the instruction table program according to the ladder diagram. Finally, the program is simulated and modified until it meets the control requirements.

Overall, the DS200CPCAG1ABB power connection board is an important part of industrial automation and control systems, and its proper installation, configuration and use is essential to ensure the stability and safety of the system. In actual applications, you need to select a proper configuration and usage method based on the specific requirements and application scenarios of the system.
