DS200DDTBG1A LCI 辅助 I/O 端子板

Description

DS200DDTBG1A LCI 辅助 I/O 端子板

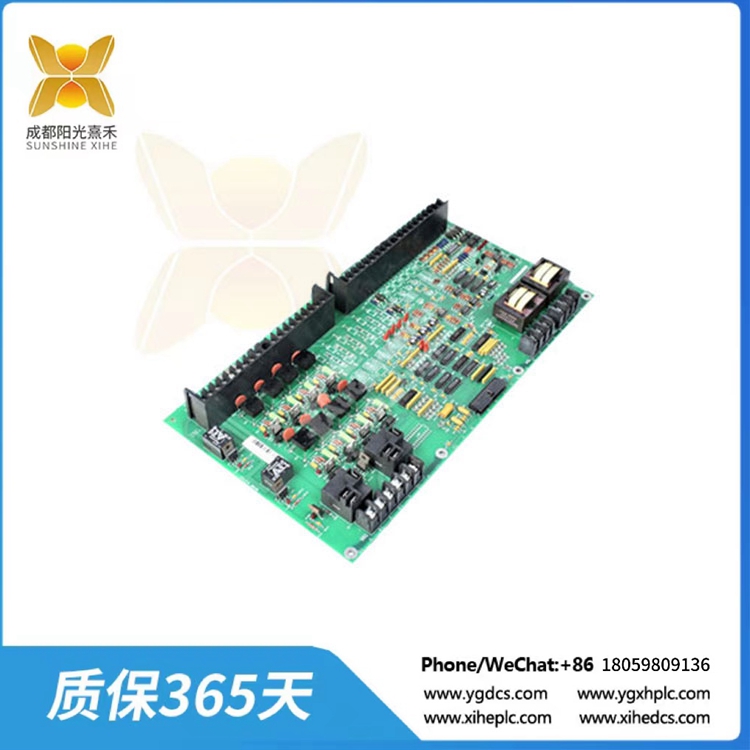

DS200DDTBG1A型号被称为辅助输入输出端子板。这种型号最适合用作所有辅助输入和输出的终端板。有GEH-100219的零件说明书，详细说明了功能、一般特性、应用数据以及保修和更换信息。

在DS200DDTBG1A型号中，有一个仅可添加的电子ID存储器功能，其中包含所有板标识和硬件修订信息。要访问此内存，必须通过1线LAN，该LAN允许附加的dsc板识别系统内存在的板。

DS200DDTBG1A型号配备了一个4-20 mA电流回路输入，允许LEM或CT输入通道在模型内重新分配，为了执行此功能，某些跳线必须复位。该型号还配备了33个测试点，可用于信号测量。该型号共有17个led，其中一个led用于指示DS200DDTBG1A板的状态，而其他15个led则由软件和硬件驱动。

DS200DDTBG1A

DS200DDTBG1A LCI 辅助 I/O 端子板

The DS200DDTBG1A model is known as an Auxiliary Input Output Terminal Board. This model is best suited to be used as a terminal board for all of the auxiliary inputs and outputs. There is a parts manual labeled GEH-100219 which details function, general features, application data as well as warranty and replacement information.

Within the DS200DDTBG1A model, there is an add-only electronic ID memory feature that contains all of the board identification and hardware revision information. To access this memory you must go through the 1-wire LAN which allows for the attached DSPC board to identify the boards that are present within the system.

The DS200DDTBG1A model is equipped with a 4-20 mA current loop input which allows for the LEM or CT input channels to be reassigned within the model, to perform this function certain jumpers must be reset. This model is also equipped with thirty-three test points which can be used for signal measurement. This model has a total of 17 LEDs, one of the LEDs on this board is used to indicate the status of the DS200DDTBG1A board while the other fifteen are software and hardware driven.
