DS200DTBAG1AAA 数字触点端子板

Description

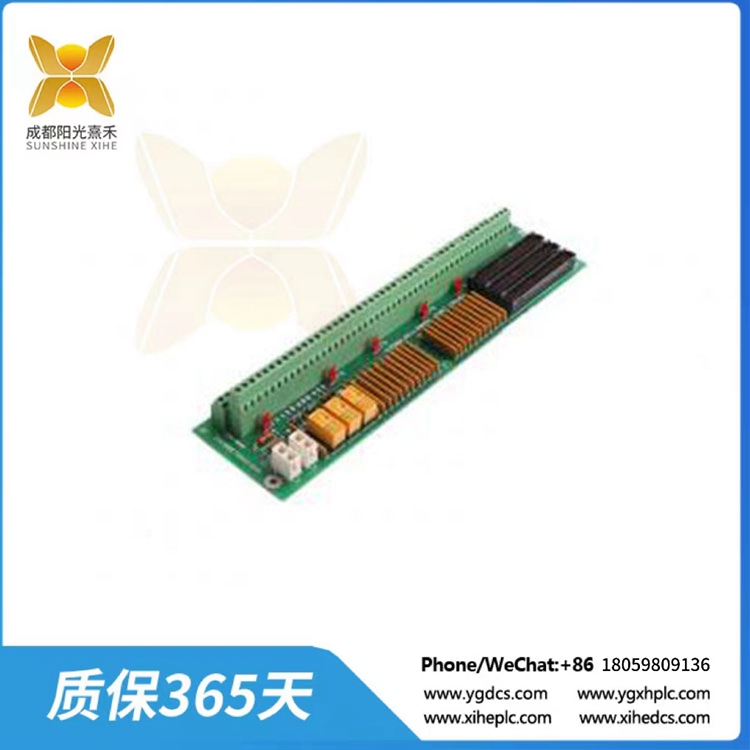

DS200DTBAG1AAA 数字触点端子板

产品描述
数字接触端子板DS200DTBAG1AAA由通用电气生产，是Mark V系列的一部分，具有两个端子排，最多连接95根电线。该单元还具有五个跳线和两个2针连接器。终端块连接发送和接收驱动器使用的信息的信号线。GE数字接触端子板DS200DTBAG1AAA上最多可连接190根电线，因此您必须意识到可能对其他组件和板造成的损坏。拆卸端子时需使用螺丝刀松开端子，以免碰伤或刮伤其他部件。为了防止这种情况，用一只手引导螺丝刀到你想要松开的端子。

当您从DS200DTBAG1AAA移除信号线时，请尝试将它们移动到一侧并避开其他板。如果可能，请在安装更换板之前重新安装信号线，以限制损坏驱动器中易碎板的机会。如果你可以连接电线，只从侧面握住板，用两只手。小心地将单板推入机柜，并对准机架上安装单板的孔位。更换部件时，必须佩戴防静电腕带，防静电腕带的一端必须固定在未涂漆的金属结构上。

当将DS200DTBAG1AAA型号连接到Mark V DS200系列中的其他型号时，使用了四种连接方式。可选的连接方式有J12、JQR、JQS/T、JY;所有这些连接都有其特定的功能。例如，虽然在电路板上提供了JQS/T连接，但很少使用。

DS200DTBAG1AAA

DS200DTBAG1AAA 数字触点端子板

Product Description
Produced by General Electric as part of the Mark V series, the Digital Contact Terminal Board DS200DTBAG1AAA features two terminal blocks that connect a maximum of 95 wires. This unit also features five jumpers and two 2-pin connectors. The terminal blocks attach signal wires that send and receive information used by the drive. The potential is for a maximum of 190 wires attached to the GE Digital Contact Terminal Board DS200DTBAG1AAA, so you must be aware of the damage that can be caused to the other components and boards. A screwdriver is used to loosen the terminal to remove the wires meaning it might hit or scratch other components when uninstalling. To prevent that, use one hand to guide the screwdriver to the terminal you want to loosen.

As you remove the signal wires from the DS200DTBAG1AAA, try to move them to one side and out of the way of the other boards. If possible, reinstall the signal wires before you install the replacement board to limit the opportunity to damage the fragile boards in the drive. If you can attach the wires, hold the board from the sides only and use two hands. Carefully maneuver the board into the cabinet and align the holes with the holes in the rack where you will install the board. When you perform the replacement, it is necessary to wear a wrist strap and have the end of the strap attached to a metal structure that is not painted.

There are four connections used when connecting the DS200DTBAG1AAA model to other models within the Mark V DS200 series. The available connections are J12, JQR, JQS/T, and JY; all of these connections have their own specific function. For example, while the JQS/T connection is offered on the board, it is sparingly used.
