DS200PCCAG9ACB 电源连接卡

Description

DS200PCCAG9ACB 电源连接卡

产品描述
GE直流电源连接板DS200PCCAG9ACB由通用电气设计，用于与Mark V DS200系列一起工作，并用作驱动器和可控硅电源桥接之间的接口。DS200PCCAG9ACB板包含多个连接器，提供电源和控制信号，向驱动器发送和接收信息。更换过程中的一项关键任务是将电缆从板上拆下并重新连接到更换板上，因为在此Mark V系列产品的组装中可能存在潜在的致命表面电压。

硬件须知和规格

关于电源连接卡组件的基础修订PCCA模式，有几个组修订。DS200PCCAG9ACB型号是第九组的一部分，在再生状态下工作在630伏。除此之外，PCCA电源连接卡组件的这组九变体具有直流电压缓冲器，由J和m型框架提供的支持辅助工作，使用此SDCI Mark V系列电源板，并在其组件中采用腿保险丝和腿电抗器。在母线变压器方面，这款DS200PCCAG9ACB型号的电源连接卡组件能够使用单独或共同的母线变压器，并且该Mark V系列产品接受的交流电压被分类为小于或等于600v均方根。关于分组之间差异的更多信息可以在GEH-6005手册中找到。

虽然这是关于详细介绍这个pca缩写的通用电气产品的原始说明手册信息的程度，但毫无疑问，这个Mark V系列产品以其DS200PCCAG9ACB功能产品编号的形式提供了更多信息，该编号以DS200系列标签开始。该系列标签具有双重命名功能，详细介绍了PCCA电源连接卡组件作为在美国制造的正常组装版本的产品。从DS200PCCAG9ACB产品编号中收集的其他一些信息包括:

PCCA功能缩写
一种普通的PCB涂层
一组九马克V系列分组
两个功能产品修订和一个美术产品修订

DS200PCCAG9ACB

DS200PCCAG9ACB 电源连接卡

Product Description

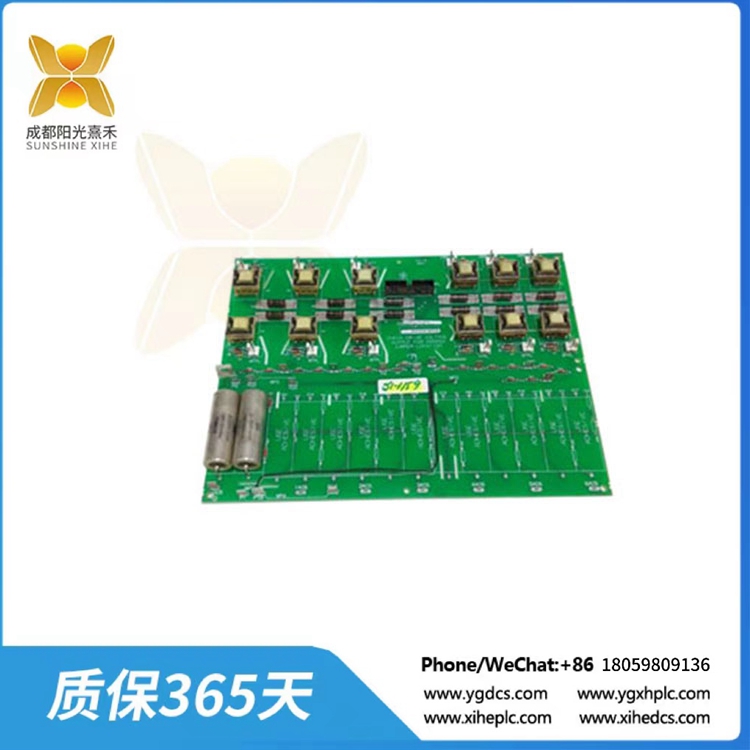

The GE DC Power Connect Board DS200PCCAG9ACB was designed by General Electric to work with the Mark V DS200 series and serves as an interface between the drive and the SCR power bridge. The DS200PCCAG9ACB board contains multiple connectors that supply power and control signals that transmit and receive information to the drive. A critical task in the replacement procedure is to remove the cables from the board and reconnect them on the replacement board, as potentially lethal surface votlages may exist in the assembly of this Mark V Series product otherwise.

Hardware Tips and Specifications

There are several group revisions in relation to the base-revised PCCA mode of Power Connect Card Assembly. The DS200PCCAG9ACB model is part of group nine, which operates on 630 volts in a regenerative state.  In addition to this, this group nine variant of PCCA Power Connect Card Assembly has DC voltage snubbers exclusively, works assisted by the support offered by J and M-style frames, utilizes this SDCI Mark V Series power board, and adopts both a leg fuse and a leg reactor into its assembly. In terms of its bus transformer, this DS200PCCAG9ACB model of Power Connect Card Assembly is able to make use of either separate or common bus transformers, and the AC Volts accepted by this Mark V Series product are classified as less than or equal to 600 V rms. More information on the differences between the grouping can be found in the GEH-6005 manual.

While this is about the extent of original instructional manual information detailing this PCCA-abbreviated General Electric product specifically, it is no question that this Mark V Series offering offers more information in the form of its DS200PCCAG9ACB functional product number, which begins with the DS200 series tag. This series tag has dual naming functionality, detailing the PCCA Power Connect Card Assembly as a product with a normal assembly version that was manufactured in the United States. Some of the other information collectible from the DS200PCCAG9ACB product number includes:

The PCCA functional acronym
A normal style of PCB coating
A group nine Mark V Series grouping
Two functional product revisions and an artwork product revision
