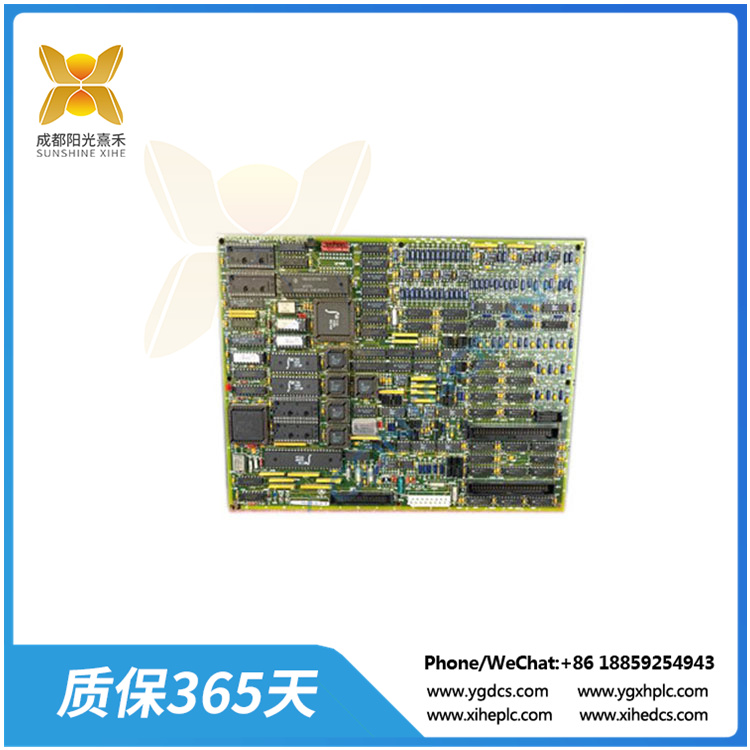

DS200TCCBG1A 通用扩展模拟 IO 板

Description

DS200TCCBG1A 通用扩展模拟 IO 板

DS200TCCBG1A 通用扩展模拟 IO 板

This DS200TCCBG1A TC2000 Analog Board was originally manufactured to exist as a member of General Electric’s Mark V Series of turbine control systems. This DS200TCCBG1A TC2000 Analog Board is actually more accurately describable through its true functional description as a Common Extended Analog IO Board. The IO acronym in this functional description points to this DS200TCCBG1A printed circuit board’s specific role as an Input/Output Board within the Mark V Series.

Hardware Tips and Specifications

The GE I/O TC2000 Analog Board DS200TCCBG1A features one 80196 microprocessor and multiple PROM modules. It also contains one LED and 2 50-pin connectors, with the LED is visible from the side view of the board. The IDs for the 50-pin connectors used in the assembly of this DS200TCCBG1A board are JCC and JDD. The board also is populated with 5 34-pin connectors. The IDs for the five connectors are JAA, JBB, JAT, JAS, and JAR. Because the board contains multiple 34-pin connectors it is important to record where the ribbon cables are connected before you disconnect them. It is important to get the drive back online as quickly as possible and doing that requires making the right signal connections when you first replace the board and restart the drive. You might not know you have made the wrong connections until you have restarted the drive and find that the right signals are not being transmitted or received by the board. In that case, you can shutdown the drive and reconnect the ribbon cables. To disconnect the cables, avoid pulling the ribbon cable from the ribbon section of the cable. This will pull the fine copper strands out of the connector in a safe manner.

Some additional hardware specifications and component elements for this DS200TCCBG1A Common Extended Analog I/O Board are available simply upon an inspection of this product’s individualized DS200TCCBG1A functional product number, which reveals informations such as this DS200TCCBG1A PCB’s normal assembly type, domestic location of manufacture, TCCB functional acronym, normal PCB coating style, group one Mark V Series grouping, and lone A-rated functional revision.
