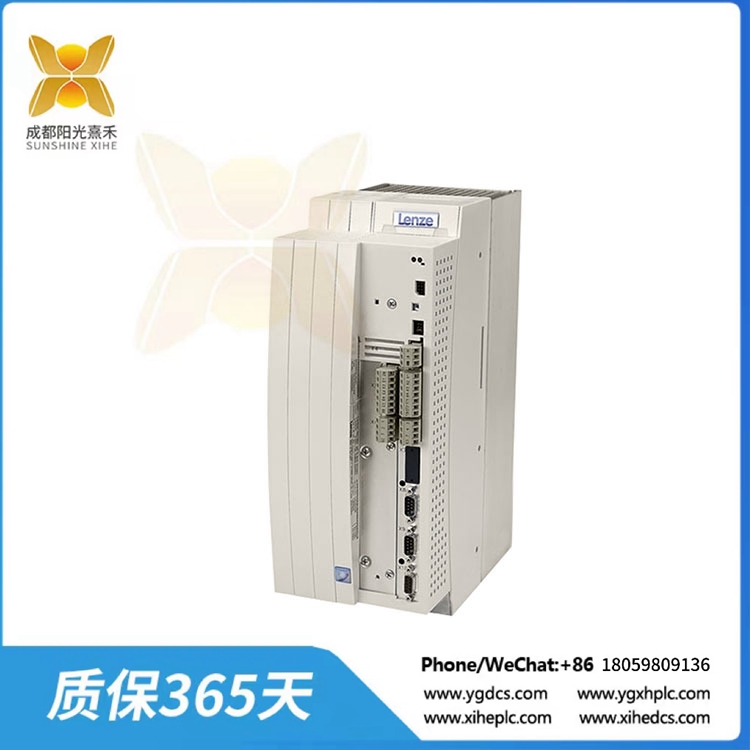

EVS9325-ETV004 伺服变频器

Description

EVS9325-ETV004 伺服变频器

制造商:伦茨
EVS9325-ESV004
9300伺服变频器
Axis模块
电机功率(异步电机，4极)PN [kW]:5.5
电源电压范围
UNetz[V]:3/PE AC 320V-0%…5287+0%; 45赫兹-0% ..65赫兹+0%
替代DC供应
DC 460-0% .. 740 V+0%
额定电源电流
带电源扼流圈1) INetz [A]: 12
无电源扼流圈INetz [A]: 16.8
额定输出电流
8千赫在[A] 13
[A] 9.7中的16 kHz
最大值输出电流
8千赫lmax [A] 19.5
16千赫Imax [A] 14.6
制动斩波器数据
连续制动功率P [kW]: 11,取决于外部制动电阻
峰值制动功率PBRmax [kW]:25
量滴制动电阻R[Ohm]:27+10%
功率损耗PV[W] : 260
规模
高度H[毫米] : 350
宽度B[毫米]: 135
深度T[毫米] :250
深度“冷板”T[mm]: 158
质量m [kg]: 7.5
允许的屏蔽电机电缆长度| [m] :50
运输重量:8公斤

EVS9325-ETV004

EVS9325-ETV004 伺服变频器

Manufacturer: Lentz
EVS9325-ESV004
9300 servo inverter
Axis module
Motor power (asynchronous motor, 4 poles)PN [kW]:5.5
Supply voltage range
UNetz[V]:3/PE AC 320V-0%… 5287 + 0%; 45 Hz -0%… 65 Hz +0%
Alternative DC supply
DC 460-0% .. 740 V+0%
Rated supply current
With power choke 1) INetz [A]: 12
No power choke INetz [A]: 16.8
Rated output current
8 KHZ in [A] 13
[A] 16 kHz in 9.7
Maximum output current
8 KHZ lmax [A] 19.5
16 KHZ Imax [A] 14.6
Brake chopper data
Continuous braking power P [kW]: 11, depending on external braking resistance

Peak braking power PBRmax [kW]:25
Metering brake resistance R[Ohm]:27+10%
Power loss PV[W] : 260
scale
Height H[mm] : 350
Width B[mm]: 135
Depth T[mm] :250
Depth “cold plate “T[mm]: 158
Mass m [kg]: 7.5
Allowable shielded motor cable length | [m] :50
Shipping weight :8 kg
