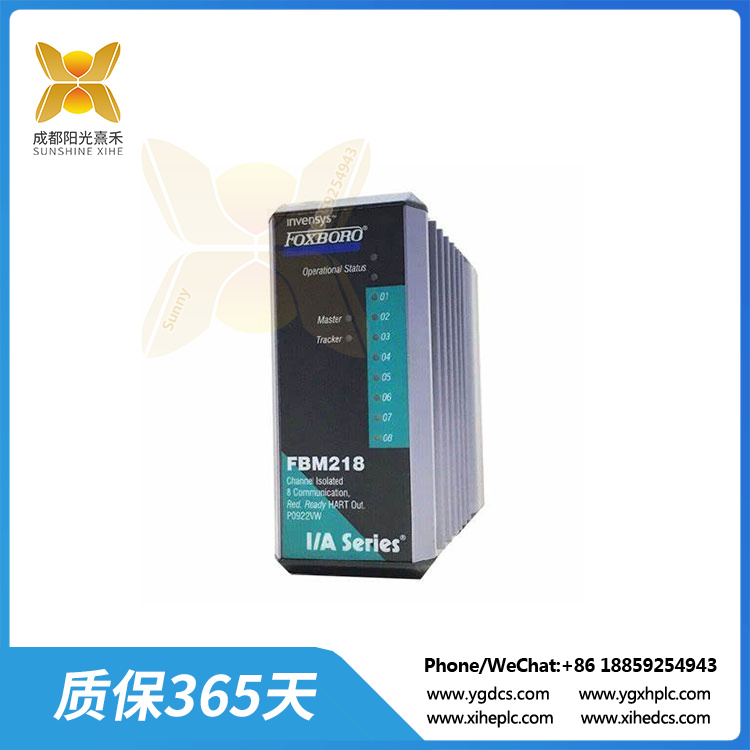

FBM218-RH922VW HART通信冗余输出接口模块

Description

FBM218-RH922VW HART通信冗余输出接口模块

福克斯博罗(施耐德电气)
产品编号:P0922VW
产品型号:FBM218 HART通信冗余输出接口模块
支持的HART仪器类型:可使用符合HART规范第5、6或7 版的Hart仪器
接口:8个隔离输出通道
隔离:通道相互之间以及与地和模块逻辑之间电流隔离(光学和变压器隔离)。在隔离通道和大地(地)之间施加600 V交流电压一分钟后， 模块可以承受
而不会损坏。
现场总线通信:通过冗余的2 Mbps HDLC现场总线与其相关的FCM或FCP通信
工作温度:模块20至+ 70摄氏度(-4至+ 158华氏度)终端组件PVC -20至+ 50摄氏度( -4至+ 122华氏度)
尺寸:10.4厘米x 4.5cm厘米x 11.4cm厘米
重量:0.284千克
装运重量:1.5千克

FBM218-RH922VW HART通信冗余输出接口模块

Foxboro (Schneider Electric)
Product number :P0922VW
Product Model :FBM218 HART communication redundant output interface module
Types of HART instruments supported: HART instruments that comply with version 5, 6 or 7 of the Hart specification can be used
Interface :8 isolated output channels
Isolation: Current isolation (optical and transformer isolation) of channels from each other and from ground and module logic. After applying 600 V AC voltage between the isolated channel and the ground (ground) for one minute, the module can withstand it
Without damage.
Fieldbus communication: Communication with its associated FCM or FCP via a redundant 2 Mbps HDLC fieldbus
Operating temperature: Modules 20 to + 70 ° C (-4 to + 158 ° F) Terminal components PVC-20 to + 50 ° C (-4 to + 122 ° F)
Size :10.4 cm x 4.5cm x 11.4cm
Weight :0.284 kg
Shipping weight :1.5 kg
