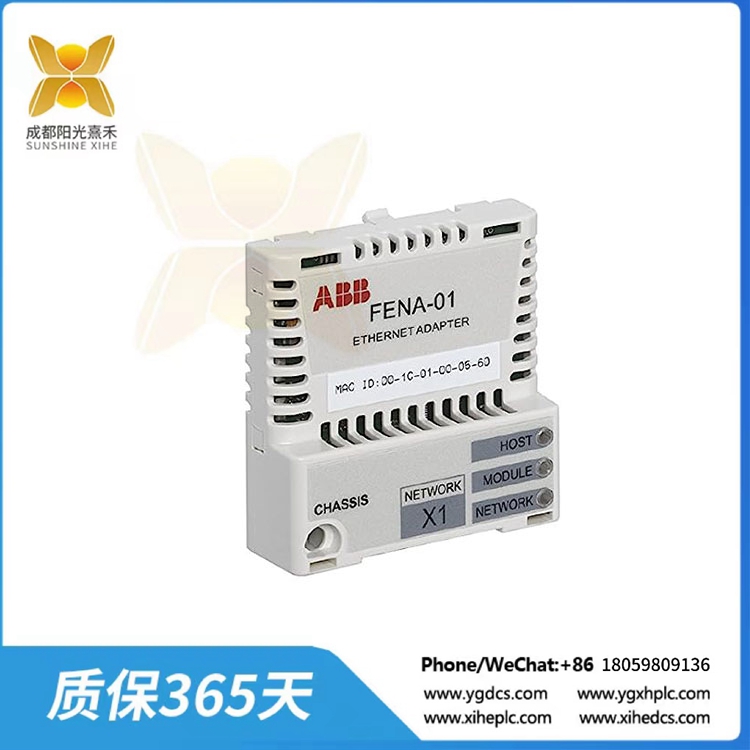

FENA-01 以太网适配器模块

Description

FENA-01 以太网适配器模块

F系列FENA-01是1端口以太网适配器，支持多个通信协议：PROFINET IO、EtherNet/IP和Modbus TCP。协议的选择在变频器内通过一个参数完成。

PROFINET
适配器模块支持PROFINET IO DP-V1通信。通过FENA-01/-11模块，PROFINET网络可以利用PROFIdrive配置文件或ABB变频器配置文件。此外，还提供两种透明模式——分别针对16位和32位的字。

EtherNet/ IP
FENA以太网适配器用作EtherNet/IP服务器，支持ODVA AC/DC Drive、ABB变频器和Transparent配置文件。该适配器模块既支持对一类的每个属性分别进行设置的显式报文，也支持使用输入和输出实例的隐式报文。

Modbus TCP
适配器模块用作Modbus TCP服务器，支持ABB变频器和Transparent配置文件。支持通用的读/写单寄存器功能代码和多寄存器功能代码。

FENA-01

FENA-01 以太网适配器模块

The F-Series FENA-01 is a 1-port EtherNet adapter that supports multiple communication protocols: PROFINET IO, EtherNet/IP, and Modbus TCP. The selection of the protocol is done by a parameter in the inverter.

PROFINET
The adapter module supports PROFINET IO DP-V1 communication. With the FENA-01/-11 module, the PROFINET network can take advantage of the PROFIdrive profile or ABB inverter profile. In addition, two transparency modes are available – one for 16-bit and one for 32-bit words.

EtherNet/ IP
The FENA EtherNet adapter acts as an EtherNet/IP server, supporting ODVA AC/DC Drive, ABB inverter, and Transparent profile. The adapter module supports both explicit messages that set each attribute of a class separately and implicit messages that use input and output instances.

Modbus TCP
The adapter module acts as a Modbus TCP server, supporting ABB drives and Transparent profiles. Support general read/write single register function code and multi-register function code.
