FW1-2-1-D 模拟/频率转换器

Description

FW1-2-1-D 模拟/频率转换器

特点:
●线性误差< 0.01
●最大输出频率。100kHz / 200khz
●输入0-10V / 0/4-20mA
●推挽输出，防短路
●频率可通过拨码开关配置
●输出频率状态显示
●电源24VDC
●可安装在35mm帽轨TS35上
●终端标识清晰
●窄设计
●外形17.5 mm
●PB -电源总线兼容
●高可靠性，5年质保

描述:
开发了FW2系列模拟/频率转换器，用于将范数信号按比例转换为频率。使用该系列0/4…20v范围内的范数信号，分别可以将0…10V转换为0Hz至100khz / 200kHz的频率。脉冲占空比为1:1。光耦合器的抗短路推挽输出可加载100mA。输出频率通过dip开关S1和两个电位器(V)，(0)进行粗略调整，然后您将能够进行精细调整。LED显示输出频率的状态

FW1-2-1-D

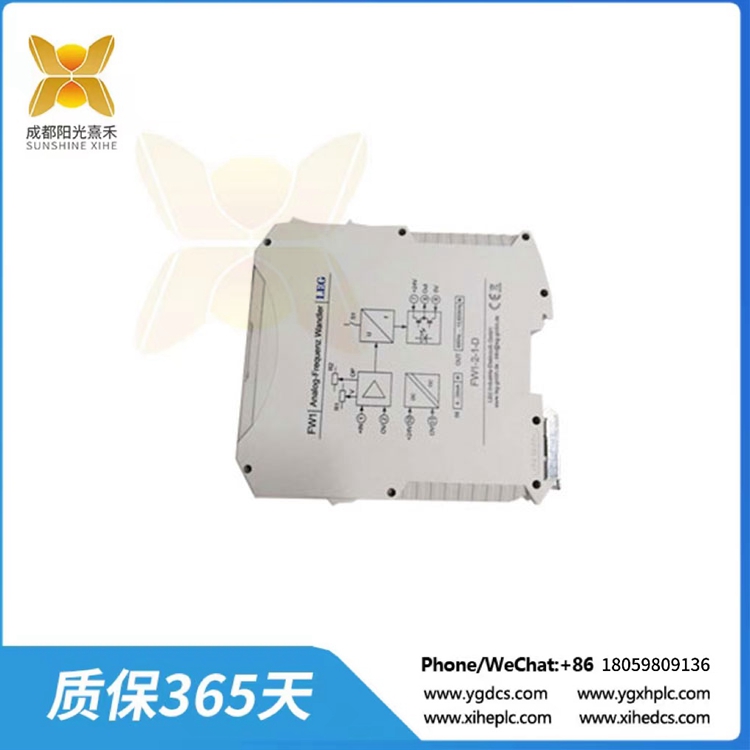

FW1-2-1-D 模拟/频率转换器

Characteristics:
● Linearity error < 0,01%
● Output frequency max. 100kHz / 200 kHz
● Input 0-10V / 0/4-20mA
● Push-pull output, short-circuit proof
● Frequency configurable by DIP-Switch
● Status display for the output frequency
● Power supply 24VDC
● Mountable on 35mm cap rail TS35
● Clear terminal labeling
● Narrow design
● Shape 17,5mm
● PB – Power -Bus compatible
● High reliability, 5 years warranty

Description:
The devices of the series FW2 analog / frequency – converter have been developed for proportionalconverting of norm signals into frequencies. With this series norm signals in the range of 0/4…20mArespectively 0…10V can be converted into frequencies of 0Hz to 100 kHz/ 200kHz. The pulse duty factor is1 : 1. The short-circuit proof push-pull output of the optocoupler is loadable with 100mA. The outputfrequency has a rough adjustment by the Dip-Switch S1 and by two potentiometers (V), (0) then you will beable to do the fine adjustment. A LED displays the status of the output frequency
