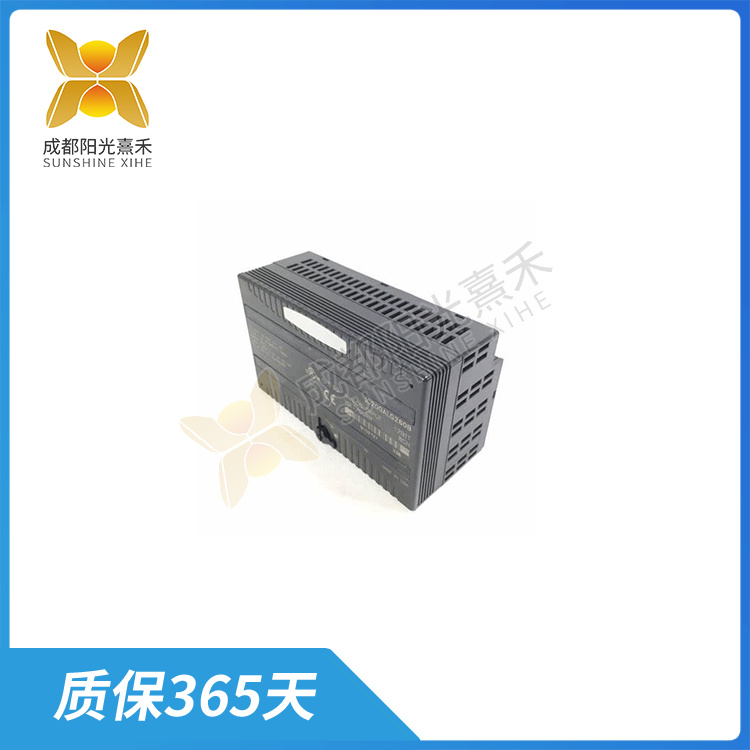

IC200ALG260B 可以与其他设备、传感器和执行器进行连接，实现数据的传输和控制

描述

IC200ALG260B 可以与其他设备、传感器和执行器进行连接，实现数据的传输和控制

IC200ALG240是一款由GE Intelligent Platforms制造的VersaMax模拟输入模块。该模块能够处理来自8个模拟设备的输入信号，并提供16位分辨率的数据输出。它有两种工作模式：电压模式和电流模式。在电压模式下，输入范围为1至20毫安；在电流模式下，输入范围为±10伏。此外，该模块具有八个隔离输入通道，每个通道的电流范围为4至20毫安。

IC200ALG240模块通常用于工业自动化和控制系统中，以实现模拟信号的采集、转换和处理。它可以与其他设备、传感器和执行器进行连接，实现数据的传输和控制。由于其高可靠性和稳定性，该模块广泛应用于各种工业环境和使用场景。

在选择和使用IC200ALG240模块时，需要根据实际的应用场景和需求来确定合适的模块类型和规格，并参考产品手册或联系制造商获取准确信息。同时，还需要遵守相关的安全规范和操作指南，以确保设备的正常运行和人身安全。

需要注意的是，产品规格和功能可能随时间而更新，建议直接联系制造商或查阅最新的技术文档以获取最新信息。此外，在购买和使用模块时，还需要注意价格、供货周期、售后服务等因素，以确保项目的顺利进行。

IC200ALG260B是Versamax I/O平台的模拟输入模块。以下是其主要参数和特点：

1. 通道数：该模块是一个八（8）通道输入模块。
2. 信号接受范围：可接受单极和双极电压信号，具体分别为0至10V和+/-10VDC，以及电流输入信号，如4-20 mA。
3. 分辨率：该模块将接收到的信号转换为分辨率为12位的数字数据。
4. 电源需求：该模块无需外部电源即可运行。
5. 隔离额定值：具有持续250VAC和持续1分钟1500VAC的光隔离额定值。
6. LED状态指示器：包括内部电源LED（INT PWR LED）和OK LED。
7. 电流消耗：在5 VDC时，它的最大背板电流消耗为130 mA。
8. 诊断功能：具有内置的失电诊断功能。
9. 可配置参数：包括范围选择和模式选择。
10. 输入阻抗：在电压模式下的最大输入阻抗为126千欧，在电流模式下的最大输入阻抗为200欧姆。
11. 精度：该模块的典型精度为满量程的+/-0.3%，在25摄氏度下工作时为满量程的+/-0.5%，在0-60摄氏度下为满量程的+/-1%。
12. 分辨率（电流模式）：分辨率为4?A =当前模式下的8个计数。
13. 分辨率（电压模式）：双极性电压模式下2.5 mV = 8次计数，单极性电压模式下2.5 mV = 8次计数。
14. 串扰抑制：该模块的通道间串扰抑制最小为30 dB。
15. 接线配置：支持单端接线配置，其中模拟测量以接地线为基准。

IC200ALG260B 可以与其他设备、传感器和执行器进行连接，实现数据的传输和控制

The IC200ALG240 is a VersaMax analog input module manufactured by GE Intelligent Platforms. The module is capable of processing input signals from eight analog devices and provides data output with 16-bit resolution. It has two operating modes: voltage mode and current mode. In voltage mode, the input range is 1 to 20 mA; In current mode, the input range is ±10 volts. In addition, the module has eight isolated input channels, each with a current range of 4 to 20 mA.

The IC200ALG240 module is commonly used in industrial automation and control systems to achieve analog signal acquisition, conversion and processing. It can be connected with other devices, sensors and actuators to achieve data transmission and control. Due to its high reliability and stability, the module is widely used in various industrial environments and use cases.

When selecting and using the IC200ALG240 module, determine the appropriate module type and specifications based on actual application scenarios and requirements, and refer to the product manual or contact the manufacturer for accurate information. In addition, you must comply with relevant safety regulations and operation guidelines to ensure the normal operation of the device and personal safety.

It is important to note that product specifications and features may be updated over time, it is recommended to contact the manufacturer directly or consult the latest technical documentation for the latest information. In addition, when purchasing and using modules, it is also necessary to pay attention to factors such as price, supply cycle, after-sales service to ensure the smooth progress of the project.

IC200ALG260B is the analog input module for the Versamax I/O platform. The following are its main parameters and characteristics:

Number of channels: The module is an eight (8) channel input module.
Signal acceptance range: Unipolar and bipolar voltage signals ranging from 0 to 10V and +/-10VDC, respectively, as well as current input signals such as 4-20 mA are acceptable.
Resolution: The module converts the received signal into digital data with a resolution of 12 bits.
Power requirements: The module can operate without an external power supply.
Isolation rating: Has an optical isolation rating lasting 250VAC and 1500VAC lasting 1 minute.
LED status indicator: including internal power LED (INT PWR LED) and OK LED.
Current consumption: At 5 VDC, its maximum backplane current consumption is 130 mA.
Diagnostic function: With built-in power loss diagnostic function.
Configurable parameters: Range selection and mode selection.
Input impedance: The maximum input impedance in voltage mode is 126 kω, and the maximum input impedance in current mode is 200 ohms.
Accuracy: The typical accuracy of the module is +/-0.3% of full scale, +/-0.5% of full scale when operating at 25 degrees Celsius, and +/-1% of full scale at 0-60 degrees Celsius.
Resolution (current mode) : Resolution is 4? A = 8 counts in the current mode.
Resolution (voltage mode) : 2.5mV = 8 counts in bipolar voltage mode, 2.5mV = 8 counts in unipolar voltage mode.
Crosstalk suppression: The module has a minimum interchannel crosstalk suppression of 30 dB.
Wiring configuration: Single-ended wiring configuration is supported, where the analog measurement is based on the ground cable.
