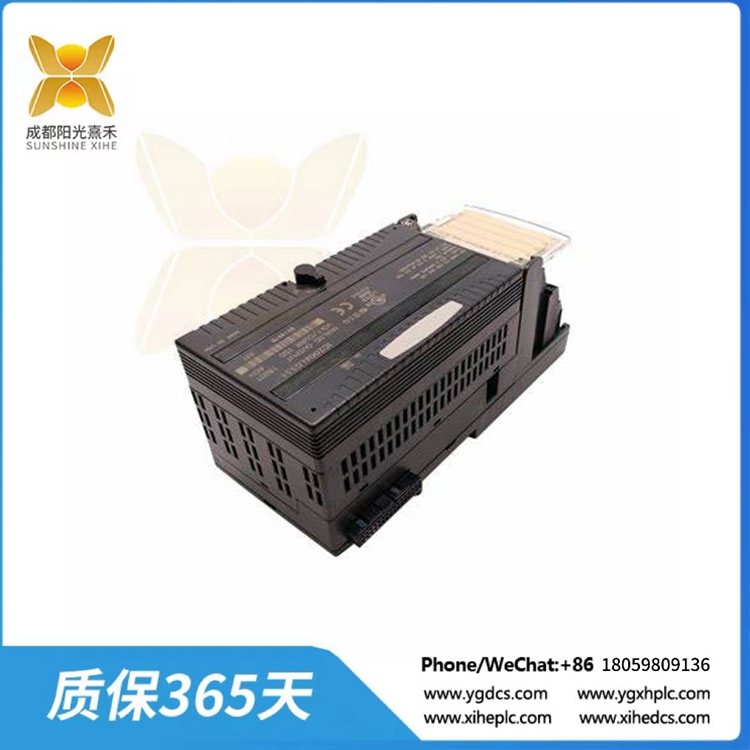

IC200ALG331-KD 模拟量输出模块

Description

IC200ALG331-KD 模拟量输出模块

IC200ALG331是一款来自VersaMax I/O平台的模拟输出模块，该平台具有紧凑、通用和可扩展的分布式I/O模块。该部件号代表一个16位，电压和电流可配置模块，具有四(4)个单独隔离的输出通道。该模块用于驱动和调节最终控制元件(FCE)，如用于流量控制的控制阀，用于电机速度和扭矩控制的变频驱动器(VFD)，设施和HVAC应用中的阻尼器和百叶，以及其他配备定位器的设备。该模块也可用于中继模拟信号，该信号可能是可编程逻辑控制器(PLC)逻辑内连续计算的结果，由面板仪表显示并由数据记录器记录。它还可用于与信号隔离器或信号分离器接口，或将参考信号级联到另一个单回路控制器或PLC，以实现更复杂的控制器架构，如级联控制。

IC200ALG331具有软件可配置的输出通道，可产生+/- 10vdc或4- 20ma输出信号。每个通道的最大更新率为7毫秒，精度为满量程的+/- 0.1%。每个通道也能够配置和检测高/低限制，过/过量程，开线，现场电源丢失，非易失性存储器故障，以及单独分配输出行为，以响应PLC停止或模块错误，如保持最后状态或降阶到零(0)，也可以修改。终端跳线不需要安装到该模块，以设置工作模式，因为IC200ALG331是完全软件可配置的。

GE IC200ALG331模块为16位模拟输出模块。它配备了4个隔离通道。它是通用发那科Versamax模块系列的一部分。该模块的主要功能是一次控制多个模拟设备。该模块只需使用软件即可轻松配置。该输出模块变体中不存在跳线或开关。该模块的工作电压范围为-10至10伏直流。该模块的额定电流为4至20毫安。模拟输出模块在7毫秒的时间周期内自我更新。它从5伏总线上总共消耗15毫安的电流。

IC200ALG331输出模块前面板有LED指示灯。它有FLD PWR和OK LED指示灯。它配备了16位转换器分辨率，并具有高精度的工厂校准。IC200ALG331输出模块为智能模块。它具有诊断功能，并支持每通道缩放。该模块能够一次从系统接收多达4个字的模拟输出数据。用户输入到逻辑的隔离是250伏交流连续和1500伏交流输入到地1分钟。在这种输出模块变体中不发生热降额。IC200ALG331输出模块能够在模块启动和运行过程中指出断线情况、现场电源丢失、内存故障等不同事件。该模块带有可配置的警报，可以针对不同的事件进行设置。

IC200ALG331-KD

IC200ALG331-KD 模拟量输出模块

The IC200ALG331 is an analog output module from the VersaMax I/O platform of compact, versatile and scalable distributed I/O modules. This part number represents a 16-bit, voltage and current configurable module with Four (4) individually isolated output channels. This module is used to actuate and modulate Final Control Elements (FCE) such as Control Valves for flow control, Variable Frequency Drives (VFD) for motor speed and torque control, Dampers and Louvers in facilities and HVAC application other devices equipped with positioners. This module may also be used to relay an analog signal that could be a result of continuous calculation within the Programmable Logic Controller (PLC) logic to be displayed by Panel meters and recorded by Data loggers. It can also be used to interface with signal isolators or signal splitters or to cascade reference signals to another single loop controller or PLC to implement a more complex controller architecture such as Cascade control.

The IC200ALG331 has output channels that are software configurable to generate +/- 10 VDC or 4-20 mA output signals. Each channel has a maximum update rate of 7 ms with accuracy of +/- 0.1% maximum of full scale. Each channel is also capable of being configured and detecting High/Low Limit, Over/Underrange, Open Wire, Loss of Field Power Supply, Non-volatile memory fault as well as individually assign output behavior in reaction to PLC stop or module error such as hold last state or downscale to Zero (0) which may also be modified. Termina jumpers are not required to be installed to this module in order to set operating mode as the IC200ALG331 is fully software configurable.

The GE IC200ALG331 module is a 16-bit analog output module. It is equipped with 4 isolated channels. It is part of the Versamax module series by GE Fanuc. The main function of the module is to control multiple analog devices at a time. The module can be configured easily just by using software. No jumpers or switches are present in this output module variant. The voltage range of operation for this module ranges between -10 and 10 Volts DC. The current rating of the module is 4 to 20 milliamps. The analog output module updates itself within a time period of 7 milliseconds. It consumes a total of 15 milliamps of current from the 5 Volts bus.

The IC200ALG331 output module is equipped with LED indicators on the front. It has the FLD PWR and the OK LED indicators. It comes with a 16-bit converter resolution and it has high-accuracy factory calibration. The IC200ALG331 output module is an intelligent module. It comes with diagnosis features and supports per-channel scaling. The module is able to receive up to 4 words of analog output data from the system at a time. The isolation for user input to logic is 250 Volts AC continuous and 1500 Volts AC for input to ground for 1 minute. No thermal derating occurs in this output module variant. The IC200ALG331 output module is able to point out open wire situations, the loss of the field power supply, memory faults, and other different events during the starting and the running of the module. The module comes with configurable alarms that can be set for different events.
