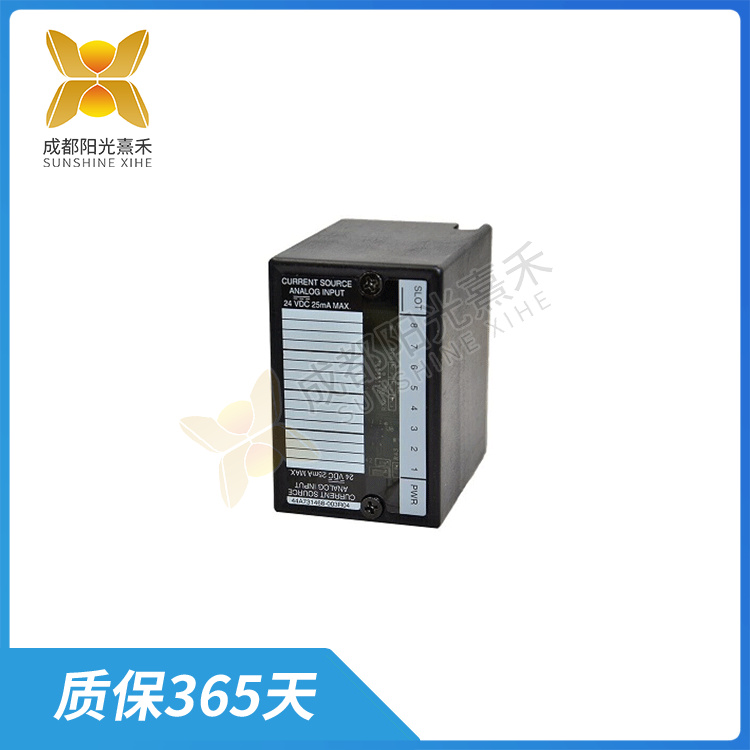

IC670ALG230 GE发那科现场控制系列的8点模拟电流源输入模块

Description

IC670ALG230 GE发那科现场控制系列的8点模拟电流源输入模块

IC670ALG230 是一款由GE Fanuc提供的模拟输入模块，属于现场I/O控制产品系列。这款模块有八个模拟输入通道，可接受0-20 mA和4-20 mA的模拟输入信号。它被广泛应用于多种类型的现场信号变送器、面板仪表输出、数据记录器、信号分离器、变频驱动器（VFD）等设备中。

IC670ALG230的模拟分辨率为5.0 A，数字分辨率为12位。模块的转换时间为每个通道60 s，在1 MHz的模块时钟下。此外，它还具有一阶RC输入滤波器，其典型转换能力为160 Hz。

这款模块还具有内部保护功能，如开路检测和超量程故障检测。每个通道都有接地和逻辑隔离，额定电压为1500 VAC分钟，250 VAC连续。模块的额定电流为51毫安，最大值来自BIU电源。

总的来说，IC670ALG230是一款功能强大且应用广泛的模拟输入模块，适用于各种工业自动化和控制系统。在选择和使用时，需要根据实际需求和应用场景进行考虑和配置。

IC670ALG230 GE发那科现场控制系列的8点模拟电流源输入模块

The IC670ALG230 is an analog input module from GE Fanuc, part of the field I/O control product family. The module has eight analog input channels and can accept analog input signals from 0-20 mA and 4-20 mA. It is widely used in many types of field signal transmitters, panel instrument outputs, data loggers, signal separators, variable frequency drivers (VFDS) and other equipment.

The IC670ALG230 has an analog resolution of 5.0A and a digital resolution of 12 bits. The module conversion time is 60 s per channel, under a 1 MHz module clock. In addition, it has a first-order RC input filter with a typical conversion capacity of 160 Hz.

The module also has internal protection features such as open circuit detection and over range fault detection. Each channel is grounded and logically isolated with a rated voltage of 1500 VAC minutes and 250 VAC continuous. The module has a rated current of 51 MA, with the maximum coming from the BIU power supply.

Overall, the IC670ALG230 is a powerful and widely used analog input module for a variety of industrial automation and control systems. When selecting and using the device, you must consider and configure the device based on actual requirements and application scenarios.
