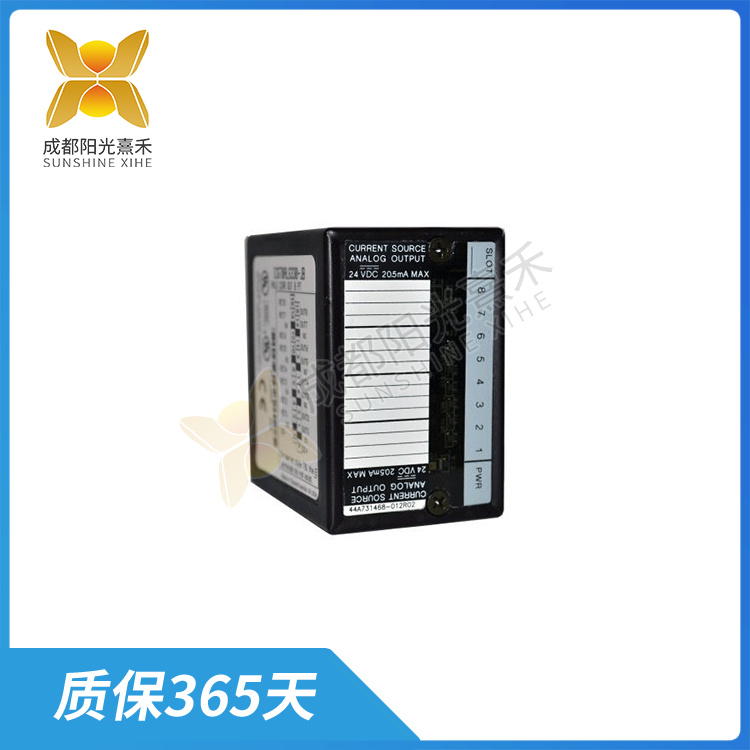

IC670ALG330 GE 现场控制I/O模块

Description

IC670ALG330 GE 现场控制I/O模块

IC670ALG330是GE Fanuc提供的一款总线接口单元，具体为一个8点模拟电流源输出模块。

它的主要功能是从总线接口接收工程单元输出数据单元（BIU），并根据其校准和配置的缩放参数来缩放该数据。然后，这个数据会被转换为0mA到大约20.48mA范围内的输出电流。如果缩放后的数据低于数模转换器的最小极限，模块将输出电流设置为0mA；如果高于最大限制，则输出电流会被设置为约20.48mA。

此外，IC670ALG330模块还具有多种警报功能，如超出/低于范围警报和开路警报等。这些警报功能可以帮助用户及时发现和处理可能出现的问题，保证系统的正常运行。

在数据交换方面，IC670ALG330模块采用与其他类型的总线接口单元相同的方式与BIU进行交换。当BIU请求时，它会提供所有输入数据和状态位，同时接收来自BIU的故障清除命令和模拟输出数据。此外，模块还可以配置为与BIU或其他同一现场控制站中的智能设备进行组数据传输。

需要注意的是，IC670ALG330模块必须与2.0版或更高版本的总线接口单元一起使用，以保证其正常工作和兼容性。

总的来说，IC670ALG330是一款功能强大、应用广泛的总线接口单元，适用于各种工业自动化和控制系统。在选择和使用时，需要根据实际需求和应用场景进行考虑和配置。同时，为了确保模块的正常工作和可靠性，需要遵守相关的安全规定和操作规程。

IC670ALG330 GE 现场控制I/O模块

The IC670ALG330 is a bus interface unit provided by GE Fanuc, which is specifically an 8-point analog current source output module.

Its main function is to receive the engineering unit output Data Unit (BIU) from the bus interface and scale that data according to its calibrated and configured scaling parameters. This data is then converted into an output current in the range of 0mA to approximately 20.48mA. If the scaled data is lower than the minimum limit of the ADC, the module sets the output current to 0mA; If it is higher than the maximum limit, the output current is set to approximately 20.48mA.

In addition, the IC670ALG330 module also has a variety of alarm functions, such as out of range alarm and open circuit alarm. These alarm functions can help users discover and deal with possible problems in time to ensure the normal operation of the system.

In terms of data exchange, the IC670ALG330 module exchanges with the BIU in the same way as other types of bus interface units. When requested by the BIU, it provides all input data and status bits, while receiving troubleshooting commands and analog output data from the BIU. In addition, the module can be configured for group data transfer with the BIU or other smart devices in the same field control station.

It should be noted that the IC670ALG330 module must be used with the bus interface unit version 2.0 or later to ensure its normal operation and compatibility.

Overall, the IC670ALG330 is a powerful and widely used bus interface unit for a variety of industrial automation and control systems. When selecting and using the device, you must consider and configure the device based on actual requirements and application scenarios. At the same time, in order to ensure the normal operation and reliability of the module, it is necessary to comply with the relevant safety regulations and operating procedures.
