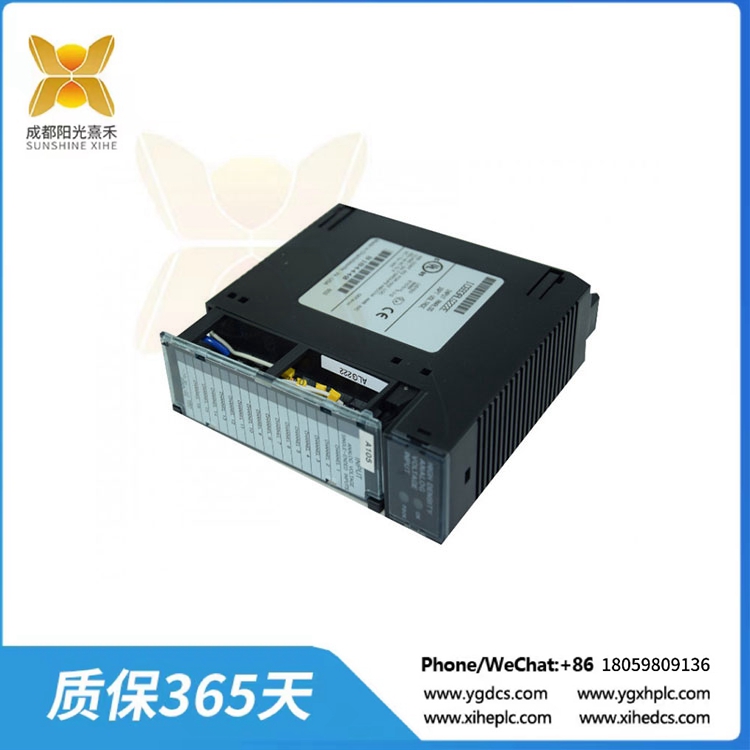

IC693ALG222E 16通道模拟电压输入模块

Description

IC693ALG222E 16通道模拟电压输入模块

产品描述
IC693ALG222是GE发那科90-30系列的16通道模拟电压输入模块。该PLC将提供16个单端或8个差分输入通道。模拟输入具有易于使用的配置软件2个输入范围:从-10到+10和0到10伏。该模块将模拟信号转换为数字信号。IC693ALG222接收单极和双极两个输入信号。单极信号范围从0到+10V，而双极信号范围从-10V到+10V。该模块可以在90-30可编程控制系统中的任何I/O插槽中设置。模块上将安装连接器块，用于连接用户设备。

IC693ALG222支持单端通道(1 ~ 16通道)和差动通道(1 ~ 8通道)。该模块的功率要求是来自5V总线的112mA，并且需要来自24V直流电源的41V来为转换器供电。两个LED指示灯反映用户电源的状态和模块的状态。这两个led是MODULE OK，它给出了关于上电的状态，POWER SUPPLY OK，它检查电源是否高于最低要求水平。IC693ALG222模块可以通过逻辑主编程软件配置，也可以通过手持编程配置。如果用户选择通过手持编程对模块进行编程，则只能编辑活动通道，不能编辑活动扫描通道。该模块使用%AI数据表记录模拟信号，供可编程逻辑控制器使用。

技术规格
编号. 通道:1 ~ 16路单端或1 ~ 8路差分
输入电压范围:0 ~ +10V或-10 ~ +10V
校准:工厂校准到:2.5mV每计数或5mV每计数
更新速率:6毫秒(全部16)或3毫秒(全部8)
输入滤波器响应:41hz或82hz
功耗:112ma从+5VDC总线或41mA从+ 24vdc总线

IC693ALG222E

IC693ALG222E 16通道模拟电压输入模块

Product description
The IC693ALG222 is a 16-channel analog voltage input module in the GE Fanuc 90-30 series. The PLC will provide 16 single-ended or 8 differential input channels. Analog inputs feature easy-to-use configuration software for 2 input ranges: from -10 to +10 and 0 to 10 volts. The module converts analog signals to digital signals. IC693ALG222 receives both unipolar and bipolar input signals. The unipolar signal ranges from 0 to +10V, while the bipolar signal ranges from -10V to +10V. The module can be set in any I/O slot in a 90-30 programmable control system. A connector block will be installed on the module to connect user devices.

IC693ALG222 supports single-ended channels (1 to 16 channels) and differential channels (1 to 8 channels). The module’s power requirement is 112mA from the 5V bus, and 41V from the 24V DC supply is required to power the converter. Two LED indicators reflect the status of the user’s power supply and the status of the module. The two leds are MODULE OK, which gives the status regarding power-on, and POWER SUPPLY OK, which checks if the power supply is above the minimum required level. The IC693ALG222 module can be configured through logic programming software or hand-held programming. If the user chooses to program the module through handheld programming, only the active channels can be edited, not the active scan channels. The module uses %AI data tables to record analog signals for use by programmable logic controllers.

Technical specification
Channel :1 to 16 single-ended or 1 to 8 differential channels
Input voltage range :0 ~ +10V or -10 ~ +10V
Calibration: Factory calibration to :2.5mV per count or 5mV per count
Update rate :6 ms (all 16) or 3 ms (all 8)
Input filter response :41hz or 82hz
Power consumption :112ma from +5VDC bus or 41mA from + 24vdc bus
