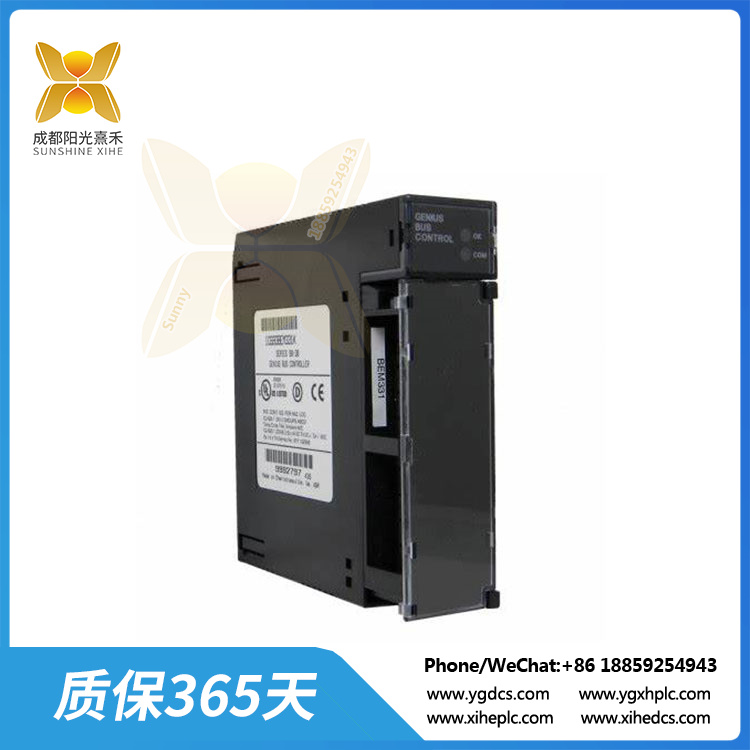

IC693BEM331D 总线控制器模块

Description

IC693BEM331D 总线控制器模块

IC693BEM331D是由GE Fanuc Automation制造的一款总线控制器模块，它是通用电气90-30可编程逻辑控制器（PLC）产品系列的一部分。这款模块的主要功能是将90-30系列PLC连接到专有的Genius/O总线，从而实现与Genius模块（如离散、模拟和特殊用途现场设备）的通信。

IC693BEM331D模块上配备了各种状态LED指示灯，包括正常和通信指示灯。这些指示灯可以为用户提供模块运行状态的直观反馈。例如，正常指示灯在模块正常运行时保持稳定亮起状态，而通信LED则在模块主动通信时稳定亮起，并在出现间歇性总线连接和错误时闪烁。

除了与Genius模块通信外，IC693BEM331D还支持与远程I/O分支的通信，包括通过远程I/O扫描仪模块连接的90-70系列I/O机架、通过总线接口单元的现场控制I/O站，以及Genius手持监视器和各种主机。在90-30系列PLC系统中，最多可以安装八个Genius总线控制器或增强型Genius通信模块。

此外，IC693BEM331D总线控制器能够处理总线上来自现场设备的最多128字节的输入和输出数据，这确保了高效且准确的通信。

总的来说，IC693BEM331D是一款功能强大、可靠的总线控制器模块，适用于需要精确控制和通信的工业自动化应用。为了确保最佳性能和长期稳定性，建议按照制造商的指南和建议进行安装、配置和维护。

IC693BEM331D 总线控制器模块

The IC693BEM331D is a bus controller module manufactured by GE Fanuc Automation as part of the General Electric 90-30 Programmable Logic Controller (PLC) product family. The main function of this module is to connect the 90-30 series PLC to the proprietary Genius/O bus for communication with Genius modules such as discrete, analog and special purpose field devices.

The IC693BEM331D module is equipped with various status LED indicators, including normal and communication indicators. These indicators provide the user with intuitive feedback on the operating status of the module. For example, the normal indicator lights up steadily when the module is operating normally, while the communication LED lights up steadily when the module is actively communicating, and blinks when intermittent bus connections and errors occur.

In addition to communicating with the Genius module, the IC693BEM331D also supports communication with remote I/O branches, including the 90-70 series I/O racks connected via the remote I/O scanner module, field control I/O stations via the bus interface unit, and Genius handheld monitors and various hosts. In the 90-30 series PLC system, up to eight Genius bus controllers or enhanced Genius communication modules can be installed.

In addition, the IC693BEM331D bus controller is capable of processing up to 128 bytes of input and output data from field devices on the bus, which ensures efficient and accurate communication.

Overall, the IC693BEM331D is a powerful and reliable bus controller module for industrial automation applications that require precise control and communication. To ensure optimum performance and long-term stability, it is recommended to install, configure, and maintain in accordance with the manufacturer’s guidelines and recommendations.
