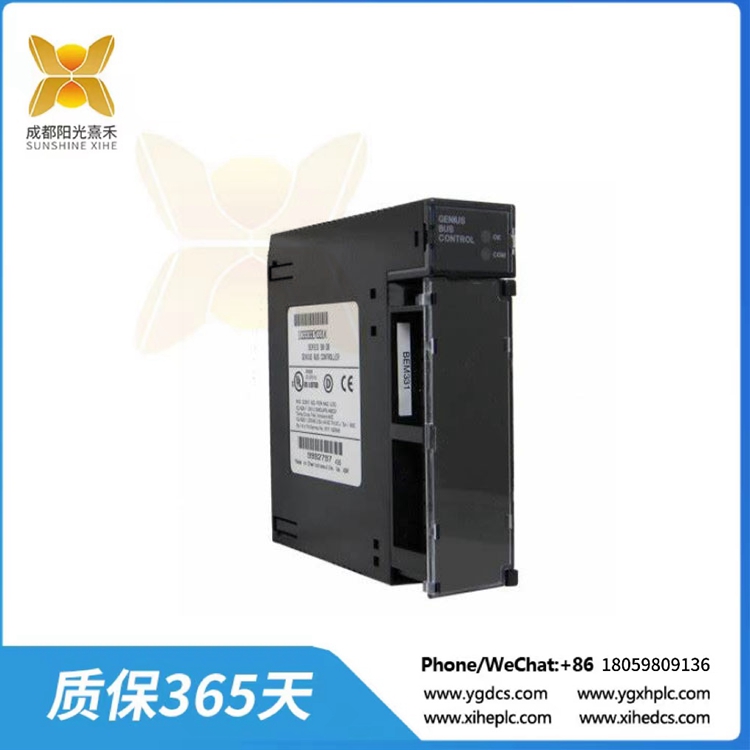

IC693BEM341 工厂仪表协议(FIP)兼容模块

Description

IC693BEM341 工厂仪表协议(FIP)兼容模块

IC693BEM341是一个工厂仪表协议(FIP)兼容模块，属于艾默生自动化的系列90-30可编程逻辑控制器(PLC)系列，以前由GE发那科自动化制造。该模块是对以前的总线控制器的升级，因为IC693BEM341具有2.5 MHz的数据速率。IC693BEM341特别具有三(3)个内置通信接口，两个(2)个9针d壳FIP总线连接器和一个(1)RS485通信接口，用于通过固件修改进行软件升级。该模块还安装了六(6)个LED状态指示灯，如模块OK，运行，载波检测通道1;信道2的载波检测信道1使能传输，信道2使能传输。该FIB总线控制器模块设计用于通过FIB总线到FIP总线接口与90-70系列PLC等各种设备进行接口;现场控制站通过现场控制I/O模块通过现场总线接口单元(BIU);远程I/O滴通过FIP远程I/O扫描模块和通用设备使用FIP接口模块。IC693BEM341需要一个8.0或更高版本的90-30系列CPU。对于配置，该模块需要使用手持编程器(HHP)， windows编程软件IC641CTLxxx Release 2.0或更高版本，或FBCLOAD配置实用程序来下载有效的配置到模块。该模块增加的功能包括显示固件版本、最多1024个布尔值的时间戳和模式30，其中包括冗余、从I/O设备管理、时间戳、消息传递服务、MIPS同步交换和外部配置接收。

IC693BEM341控制器是GE发那科公司设计制造的FIP总线控制器。该部件属于GE系列90-30。这种特定的控制器模型是对旧的总线控制器的升级，它包括不同的创新功能。当将该型号与GE 340控制器等旧型号进行比较时，除了新的IC693BEM341型号的网络速度有所提高外，它们在功能上是相同的。GE Fanuc IC693BEM341 FIP总线控制器是总线控制器的2.5兆赫版本。它也适用于固件版本3.01。该总线控制器需要任何版本8.10或更高版本的IC693 PLC CPU。该现场总线控制器的另一个配置要求是它需要一个手持编程器或HHP。本HHP有一个由Windows开发的编程软件，应该是2.0或更高版本。必须使用FBCLOAD配置实用程序来配置控制器，使其与网络一起正常运行。

GE Fanuc IC693BEM341 FIP Bus控制器支持Configuration Mode 30。该模式是先前总线控制器版本的配置模式11的扩展，它为从设备(包括I/O巢、驱动器、plc和控制站)添加了不同的功能，如冗余、管理和监控功能。它还可以为布尔值加上时间戳，并通过FIP网络处理消息传递服务和接收外部配置。GE Fanuc IC693BEM341 FIP总线控制器中提供的一些更正是为了解决先前的问题，该问题产生了模块丢失故障，当没有此类故障时，PLC CPU报告了该故障。另一个已经纠正的问题是PLC应用程序的状态经常被错误地确定。

IC693BEM341

IC693BEM341 工厂仪表协议(FIP)兼容模块

The IC693BEM341 is a Factory Instrumentation Protocol (FIP) compatible module that belongs to the Series 90-30 Programmable Logic Controller (PLC) series of Emerson Automation, formerly manufactured by GE Fanuc Automation. This module is an upgrade to the previous Bus Controller as the IC693BEM341 comes with a data rate of 2.5 MHz. The IC693BEM341 comes with Three (3) built-in communication interfaces particularly, Two (2) 9-pin D-shell FIP Bus connectors and One (1) RS485 communication interface that is used for software upgrade through firmware modification. This module is also installed with Six (6) LED status indicators such as Module OK, Run, Carrier Detection for Channel 1; Carrier Detection for Channel 2; Transmit Enable for Channel 1 and Transmit enabled for Channel 2. This FIB Bus controller module is designed to interface with a variety of devices such as Series 90-70 PLC via FIB bus to FIP bus interface; Field Control stations through Field control I/O modules via Filed Bus Interface Unit (BIU); Remote I/O drops via FIP Remote I/O scanner modules and Generic devices using FIP interface module. The IC693BEM341 requires a Series 90-30 CPU with release 8.0 version or greater. For configuration, the module requires the use of a Hand-Held Programmer (HHP), windows programming software IC641CTLxxx Release 2.0 or later, or the FBCLOAD configuration utility to download the valid configuration to the module. The added functionalities to this module include the capability of displaying Firmware version, timestamping of up to 1024 Boolean values, and mode 30 which includes redundancy, slave I/O device management, time stamping, messaging services, MIPS synchronous exchanges, and external configuration reception.

The IC693BEM341 controller is a FIP Bus controller that has been designed and manufactured by GE Fanuc. This part belongs to GE Series 90-30. This specific controller model is an upgrade for older Bus controllers and it includes different innovative features. When comparing this model to the old one like the GE 340 controller, they are functionally identical except that the speed of the network has been improved in the new IC693BEM341 model. The GE Fanuc IC693BEM341 FIP Bus controller is the 2.5-Megahertz version of the bus controller. It also works with firmware version 3.01. This Bus controller requires any IC693 PLC CPU that is version 8.10 or later. Another configuration requirement for this field bus controller is that it needs a Hand-Held Programmer or HHP. This HHP has a programming software developed by Windows and it should be version 2.0 or later. The FBCLOAD configuration utility must be used to configure the controller to operate properly with the networks.

The GE Fanuc IC693BEM341 FIP Bus controller supports Configuration Mode 30. This mode is an extension of Configuration Mode 11 from previous Bus controller versions and it adds different features such as redundancy, management, and monitoring functions for slave devices that include I/O nests, drives, PLCs, and control stations. It can also time-stamp the Boolean values and handle messaging services and the reception of external configurations through the FIP network. Some of the corrections provided in the GE Fanuc IC693BEM341 FIP Bus controller were made to address a previous problem that produced a loss of Module fault that was reported by the PLC CPU when there was no such fault. Another problem that has been corrected was one where the state of the PLC application was often determined incorrectly.
