IC693PBM200 Profibus主模块

Description

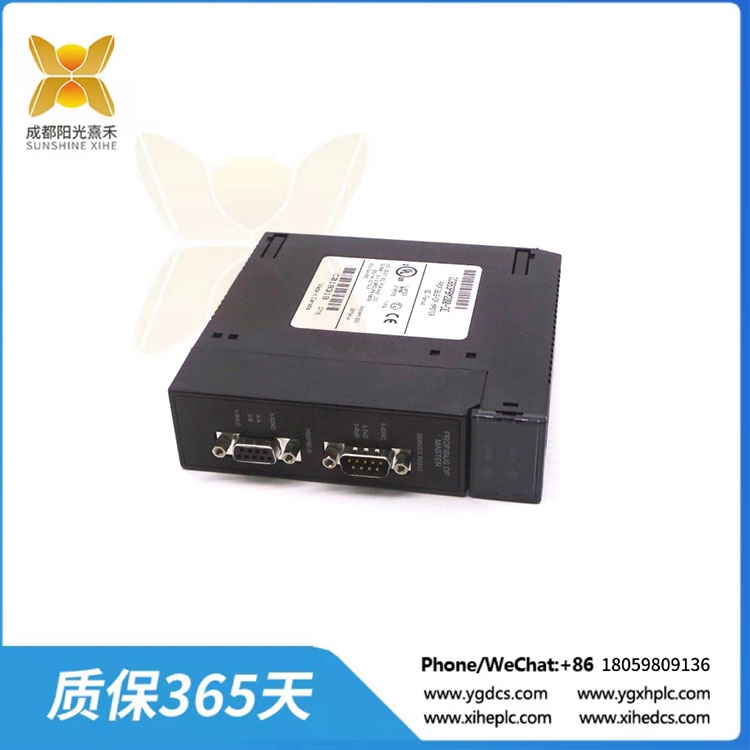

IC693PBM200 Profibus主模块

IC693BPM200是一款Profibus主模块，是GE发那科90-30系列控制器平台的一部分，现已被艾默生自动化收购。该模块是支持Profibus通信协议的可选通信模块。它带有一个(1)Profibus主端口，支持以菊花链拓扑与Profibus网络通信，另一个RS232服务端口可用于下载配置和固件升级。

IC693BPM200为单槽位模块，可安装在CPU底板、扩展底板或远程底板上。它支持多达125个Profibus DP从站的通信，使远程I/O架构的实现和通信到其他设备，如网关，HMI, SCADA和其他设备。对于远程I/O功能，每个Profibus从站能够接收244字节的输入数据并发送244字节的输出数据。它支持同步和冻结配置，并可配置到所有Profibus标准传输速率范围从9600 kaud到12MBaud。它遵循菊花链拓扑，因为该协议源自RS485电气标准，两端，特别是节点1和网络的最后一个节点，通过终端电阻关闭。它还配备了SYS和COM状态led，描绘了主动通信和设备操作。

使用2.6或更高版本的simplicity Machine Edition Logic Developer配置该模块。可与CPU 311/313/323、331、341,350、352,360、363,363、364等系列90-30 CPU配合使用。对于大多数应用和控制系统，该模块适用的CPU版本是V8.00，但是，如果打算在大规模应用中使用，可能需要CPU版本10.60或更高。

GE Fanuc IC693PBM200 Profibus DP主模块通信卡是一款固态通信卡，专为GE系列90-30可编程逻辑控制器而设计和制造。它作为PLC与PROFIBUS DP网络之间的主要通信接口，使PLC能够连接到网络中，并与现场设备、其他控制器、通信平台和许多其他类型的设备建立数据交换。通过使用该模块，可以从单个发那科PLC控制多达125个PROFIBUS DP从单元，该模块具有接收来自网络的244字节输入和发送244字节输出命令的能力。

说明配置IC693PBM200 GE Fanuc Profibus DP主模块通信卡时，用户需要具有Proficy Machine Edition Logic Developer软件的2.6及以上授权版本。Profibus DP Master Module卡可以安装在GE Fanuc 90-30底板的任何插槽中，除了1号槽位(通常为电源模块预留)。IC693PBM200 GE发那科Profibus DP主模块通信卡支持9.6K、19.2K、93.75K、187.5K、500K、1.5M、3M、6M和12M波特率。卡的工作温度范围为0℃~ 60℃。当工作环境中的温度在任何方向上超过这些极端温度时，重要的是要考虑在PLC和通信卡将要放置的外壳中使用气候控制系统。

IC693PBM200

IC693PBM200 Profibus主模块

The IC693BPM200 is a Profibus Master Module that is part of the Series 90-30 controller platform previously from GE Fanuc, now acquired by Emerson Automation. This module is an option communications module that support Profibus communication protocol. It comes with One (1) Profibus Master port that supports communication to Profibus network in daisy chain topology and another RS232 service port that can be used for downloading configuration and firmware upgrade.

The IC693BPM200 is a single slot module that installs to the CPU baseplate, expansion or remote baseplate. It supports communication of up to 125 Profibus DP slaves, enabling implementation of Remote I/O architecture and communication to other devices such as gateways, HMI, SCADA and other devices. For Remote I/O functionality, each Profibus slave is able to receive 244 Bytes of input data and send 244 Bytes of output data. It supports Synch and Freeze configuration and configurable to all Profibus standard transmission rates ranging from 9600 Kbaud to 12MBaud. It follows Daisy-chain topology as this protocol is derived from RS485 electrical standard with both ends, specifically, node 1 and the last node of the network, closed by means of a terminating resistor. It also comes with SYS and COM status LEDs depicting active communication and device operation.

This module is configured using the CIMPLICITY Machine Edition Logic Developer version 2.6 or later. It can be used with Series 90-30 CPUs such as CPU 311/313/323, 331, 341,350, 352,360,363,363 and 364. For most applications and control system, applicable CPU release for this module is V8.00 however, if intended to be used in large scale applications, CPU release 10.60 or later may be needed.

The GE Fanuc IC693PBM200 Profibus DP Master Module Communication Card is a solid-state communication card that is specifically designed and built for use in the GE Series 90-30 Programmable Logic Controllers. It serves as the main communication interface between the PLC and a PROFIBUS DP network, enabling the PLC to connect into the network and establish data exchanges with field devices, other controllers, communication platforms, and many other types of devices. Up to 125 PROFIBUS DP slave units can be controlled from a single Fanuc PLC by using this module, which has the capacity to receive 244 bytes of inputs from the network and to dispatch 244 bytes of output commands in response.

In order to configure the IC693PBM200 GE Fanuc Profibus DP Master Module Communication Card, the users should have licensed version 2.6 or later of the Proficy Machine Edition Logic Developer software. This Profibus DP Master Module card can be mounted in any slot of a GE Fanuc 90-30 baseplate, except for slot 1, which is usually reserved for the power source module. The IC693PBM200 GE Fanuc Profibus DP Master Module Communication Card is able to work at any of the standard data rates (9.6K, 19.2K, 93.75K, 187.5K, 500K, 1.5M, 3M, 6M, and 12M Baud). The operating temperature of the card ranges from 0 degrees Celsius to 60 degrees Celsius. When the temperature in the working environment surpasses these temperature extremes in any direction, it is important to consider the use of a climate control system for the enclosure where the PLC and the communication card is going to be placed.
