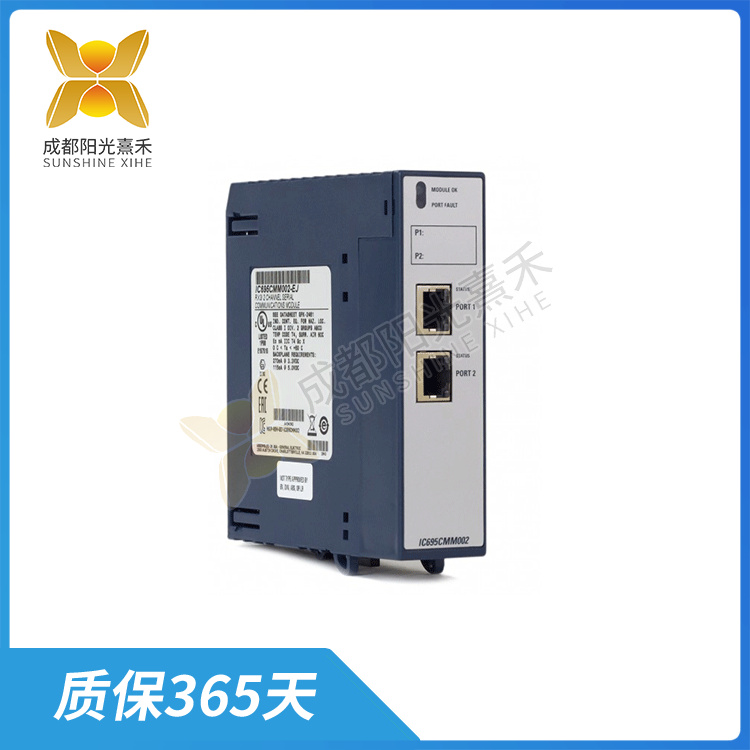

IC695CMM002 GE PACsystem RX3i串行通信模块

Description

IC695CMM002 GE PACsystem RX3i串行通信模块

IC695CMM002 是GE公司提供的一种串行通信模块。这个模块提供了包括Serial I/O、Modbus Master/Slave、CCM Slave、DNP3 Master/Slave和SPL在内的五种协议。这意味着它具有非常强大的通信能力，可以与多种不同的设备进行通信。

每个通信端口都支持64个通信任务，并且具有224个模块及通信状态位，这使得它在处理大量通信任务时非常高效。同时，它支持I、M、T区的使用，为通信任务提供了更多的灵活性和控制选项。

此外，IC695CMM002模块还提供了多种控制位的控制方式，包括一个任务完成后计时、同一计时在不同时间设置不同的通信任务控制位和位定时左（右）移动等方式。这些控制方式使得通信任务的管理和控制更加精细和灵活。

在发送和接收报文方面，该模块按照字节进行计算，每字节包括起始位、停止位和校验位，最大可以达到12位。同时，它还支持Modbus读数据发送报文，其长度是8字节，而应答报文的长度则根据读入数据的多少进行变化。

总的来说，IC695CMM002是一款功能强大、灵活可靠的串行通信模块，适用于各种需要串行通信的工业自动化和控制系统。它的多种协议支持和灵活的通信任务管理方式使得它成为一个非常实用的选择。

需要注意的是，具体的安装和使用方法应该遵循制造商提供的说明和建议。同时，为了确保模块的正常工作和可靠性，还需要遵守相关的安全规定和操作规程。例如，应该避免在超过模块额定电压或电流的情况下使用模块，避免模块受到机械损伤或高温等环境因素的影响。此外，还需要定期进行维护和检查，以确保模块的正常运行和延长其使用寿命。

IC695CMM002 GE PACsystem RX3i串行通信模块

IC695CMM002 is a serial communication module provided by GE. This module provides five protocols including Serial I/O, Modbus Master/Slave, CCM Slave, DNP3 Master/Slave, and SPL. This means that it has very strong communication capabilities and can communicate with many different devices.

Each communication port supports 64 communication tasks and has 224 modules and communication status bits, which makes it very efficient when handling a large number of communication tasks. At the same time, it supports the use of I, M, and T zones, providing more flexibility and control options for communication tasks.

In addition, the IC695CMM002 module also provides a variety of control bit control modes, including timing after a task is completed, setting different communication task control bits at different times for the same timing and moving left (right) and so on. These control methods make the management and control of communication tasks more precise and flexible.

In terms of sending and receiving packets, the module calculates them by byte. Each byte includes a start bit, a stop bit, and a check bit. The maximum number of bytes is 12. At the same time, it also supports the Modbus read data send message, its length is 8 bytes, while the length of the reply message varies according to the amount of data read.

Overall, the IC695CMM002 is a powerful, flexible and reliable serial communication module for a variety of industrial automation and control systems that require serial communication. Its multiple protocol support and flexible way of managing communication tasks make it a very practical choice.

It should be noted that the specific installation and use methods should follow the instructions and recommendations provided by the manufacturer. At the same time, in order to ensure the normal operation and reliability of the module, it is also necessary to comply with the relevant safety regulations and operating procedures. For example, the use of the module in excess of the rated voltage or current of the module should be avoided to avoid the module being affected by environmental factors such as mechanical damage or high temperature. In addition, regular maintenance and inspections are required to ensure the normal operation of the module and extend its service life.
