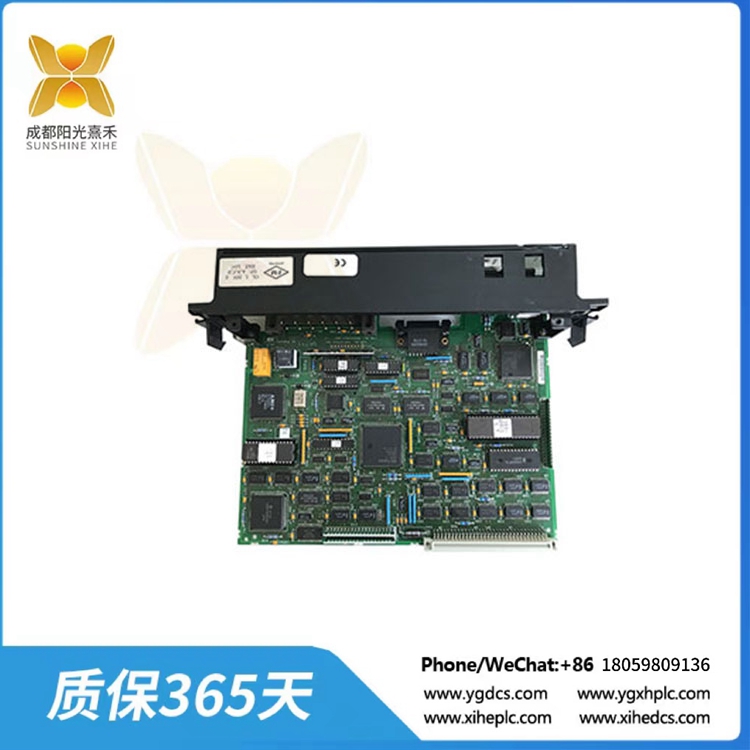

IC697BEM733 Genius 远程 I/O 扫描仪

Description

IC697BEM733 Genius 远程 I/O 扫描仪

IC697BEM733是90-7系列可编程逻辑控制器(PLC)系列的通信接口模块，原由GE发那科生产，现隶属于艾默生自动化。该模块是一个远程I/O扫描器，主要用于实现分布式I/O体系结构。该模块允许安装远程I/O站，可位于距离主控制器高达7500英尺或2275米的地方。它可以配置为处理离散I/O和模拟I/O的任何组合，最多可达1024个离散输入，1024个离散输出，64个模拟输入字和64个模拟输出字。与IC697BEM733通信的远程I/O站可以包含IC697离散模块、模拟模块和模拟扩展模块的实例。总线发送器，总线接收器，PCM和ADS模块。该模块建议与IC697模块一起使用，但是，IC66*模块，第三方plc和安装了远程I/O通信卡的计算机可以与IC697BEM733模块一起使用。IC697BEM733具有一个15针RS-422/485兼容串行端口和一个(1)9针IC66*手持监视器端口。它也有专用的IC66*总线终端，支持冗余。该模块适用于4.0或更高版本的手持显示器，目录号为IC660HHM501G;CPU固件版本2.0或更高版本，MS-DOS编程软件版本3.0或更高版本，总线控制器版本3.0或更高版本如果与IC697 PLC模块一起使用;CPU版本105或更高版本，MS-DOS编程软件版本4.02或更高版本，目录号为IC660CBB902或903的总线控制器必须是1.7或更高版本，如果与IC600 PLC系统一起使用;CPU版本4.0或更高版本，MS-DOS编程软件版本2.01或更高版本，任何版本总线控制器如果与IC655 PLC一起使用。计算机通信必须安装PCIM或QBIM卡。

来自GE发那科系统的IC697BEM733系列90-70天才远程I/O扫描模块。该模块安装在远程IC697 PLC机架上，提供IC697 I/O模块与IC66 Bus之间的接口。虽然IC697BEM733模块是为IC697系统设计的，但它也与所有IC66主机兼容，包括IC660可编程逻辑控制器，IC655可编程逻辑控制器，以及装有个人计算机接口模块(PCIM)， q总线接口模块(QBIM)或其他第三方基于geni的接口的主机。IC697BEM733模块可以支持多达1024个离散I/O或64个模拟I/O的IC697模拟/离散模块的混合，以及PCM和ADS设备。它还支持总线发送器，pcm, ADS和模拟扩展模块

IC697BEM733远程I/O扫描模块可以支持与主控制器的最大连接距离为2275米(7500英尺)。IC697BEM733远程I/O扫描模块和IC697模块的完整连接构成了远程传输系统。一个典型的远程drop由多达8个PLC机架组成，可以是5槽或9槽的IC697机架，通过总线发送器和总线接收模块连接在一起，最大远程连接距离为15米(50英尺)。IC697BEM733远程I/O扫描模块有3个LED指示灯显示模块的运行状态。它的上后端有一个9针连接器(公，d型)，用于连接IC66天才手持监视器，一个RS-422/RS-485串行端口，用于连接多点通信网络或串行编程器，以及16个IC66总线终端。

IC697BEM733

IC697BEM733 Genius 远程 I/O 扫描仪

The IC697BEM733 is a communication interface module from the Series 90-7 Programmable Logic Controller (PLC) Series, produced formerly by GE Fanuc now under Emerson Automation. This module is specifically a Remote I/O scanner, primarily used to implement distributed I/O architecture. This module allows the installation of remote I/O stations which can be located up to 7500 feet or 2275 meters from the host controller. It can be configured to handle any combination of discrete I/O and analog I/O up to a maximum quantity of 1024 Discrete inputs, 1024 Discrete outputs, 64 Analog input words, and 64 analog output words. A remote I/O station that is being communicated with the IC697BEM733 Remote I/O scanner module may contain instances of IC697 discrete modules, analog modules, and analog expander modules. Bus Transmitter, Bus Receiver, PCM, and ADS modules. This module is recommended for use with IC697 modules however, IC66* modules, 3rd party PLCs, and computers installed with Remote I/O communication cards may be used with the IC697BEM733 module. The IC697BEM733 has One 15-pin RS-422/485 compatible serial port, and One (1) 9-pin IC66* Hand-held Monitor port. It also has dedicated IC66* Bus terminals which supports redundancy. This module is compatible for use with version 4.0 or later Hand Held Monitor with catalog number IC660HHM501G; CPU firmware release 2.0 or later, MS-DOS programming software release 3.0 or later, Bus Controller release 3.0 or later if used with an IC697 PLC modules; CPU rev. 105 or later, MS-DOS programming software release 4.02 or later, Bus Controllers with catalog number IC660CBB902 or 903 must be version 1.7 or later if used with IC600 PLC system; CPU rev. 4.0 or later, MS-DOS programming software release 2.01 or later, any version Bus Controller if used with IC655 PLC. For computer communication, it must be installed with PCIM or QBIM card.

The IC697BEM733 Series 90-70 Genius Remote I/O Scanner Module from the GE Fanuc system. This module is installed on a remote IC697 PLC rack, and it provides an interface between the IC697 I/O modules and the IC66 Bus. Although the IC697BEM733 Module is designed for the IC697 system, it is also compatible with every IC66 host, including the IC660 Programmable Logic Controllers, IC655 Programmable Logic Controllers, and host computers fitted with a Personal Computer Interface Module (PCIM), a Q-bus Interface Module (QBIM), or other third-party GENI-based interfaces. The IC697BEM733 Module can support a mix of IC697 analog/discrete modules with up to 1024 discrete I/O or 64 analog I/O, and PCM and ADS devices. It also supports Bus transmitters, PCMs, ADS, and analog expander modules

The IC697BEM733 Remote I/O Scanner Module can support a maximum connection distance of 2275 meters (7,500 feet) from the host controller. A complete connection of the IC697BEM733 Remote I/O Scanner Module and the IC697 modules make up the remote drop system. A typical remote drop consists of up to 8 PLC racks that can be either 5-slot or 9-slot IC697 racks linked together by a bus transmitter and bus receiver modules over a maximum remote connection distance of 15 meters (50 feet). The IC697BEM733 Remote I/O Scanner Module has 3 LED indicators that show the module’s operation status. It comes with a 9-pin connector (male, D-type) on the upper rear-end for connecting to an IC66 genius handheld monitor, an RS-422/RS-485 serial port for connecting to a multidrop communications network or serial programmer, and 16 IC66 Bus terminals.
