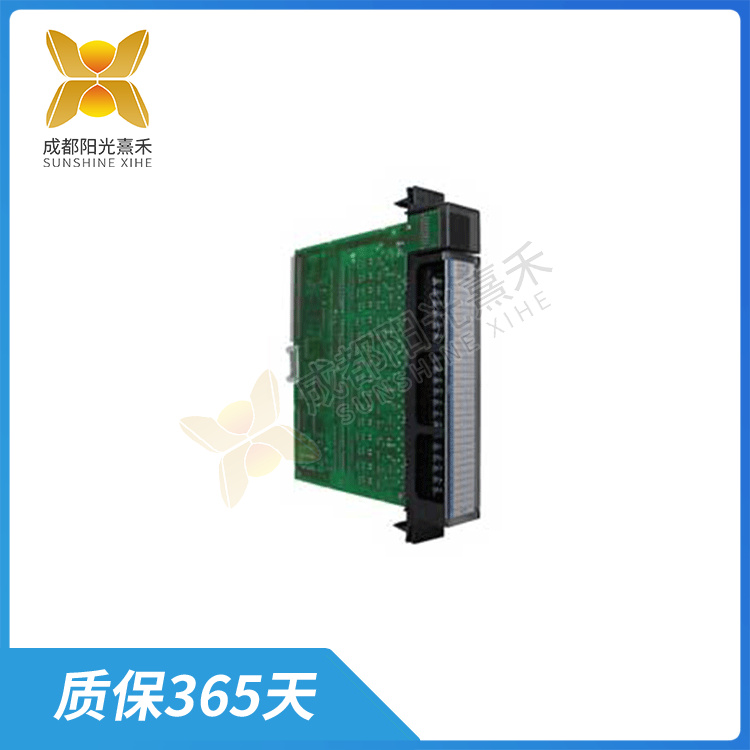

IC697MDL652 正负逻辑输入模块

Description

IC697MDL652 正负逻辑输入模块

IC697MDL652是一款正负逻辑输入模块，用于连接输入设备的模块，如按钮、限位开关、接近开关、辅助触点和其他类似设备。它可以接受特定范围内的外部电压信号，并将其转换为逻辑信号供控制系统使用。正负逻辑输入模块在工业自动化和控制系统中发挥着关键作用，能够确保系统对各种输入信号进行准确、可靠的检测和处理。

例如，GE Fanuc的IC697MDL652 90-30系列正/负逻辑输入模块，就是这样一个典型的应用。这款模块具有一个输入组和一个公共端子，可以接收范围在0-30 VDC的外部电压信号，其标称电压为24VDC。在额定电压下，它的输入电流要求为7mA。此外，这款模块还具备开启和关闭两种状态，无论是哪种状态，其开启响应时间均为7ms。

在使用正负逻辑输入模块时，IC697MDL652需要注意其额定电压、电流以及输入信号范围等参数，确保与输入设备以及整个控制系统的要求相匹配。同时，也需要按照相关的操作规范和安全标准进行安装和使用，以保证其正常运行和长期稳定性。

IC697MDL652 正负逻辑输入模块

The IC697MDL652 is a positive and negative logic input module for connecting input devices such as buttons, limit switches, proximity switches, auxiliary contacts, and other similar devices. It can accept external voltage signals within a specific range and convert them into logical signals for use by the control system. Positive and negative logic input modules play a key role in industrial automation and control systems to ensure accurate and reliable detection and processing of various input signals.

For example, GE Fanuc’s IC697MDL652 90-30 series positive/negative logic input module is a typical application. This module has an input group and a common terminal that can receive external voltage signals in the range of 0-30 VDC, with a nominal voltage of 24VDC. At rated voltage, its input current is required to be 7mA. In addition, the module also has two states of opening and closing, regardless of the state, its opening response time is 7ms.

When using the positive and negative logic input module, the IC697MDL652 needs to pay attention to its rated voltage, current and input signal range and other parameters to ensure that it matches the requirements of the input device and the entire control system. At the same time, it is also necessary to install and use in accordance with the relevant operating specifications and safety standards to ensure its normal operation and long-term stability.
