Description

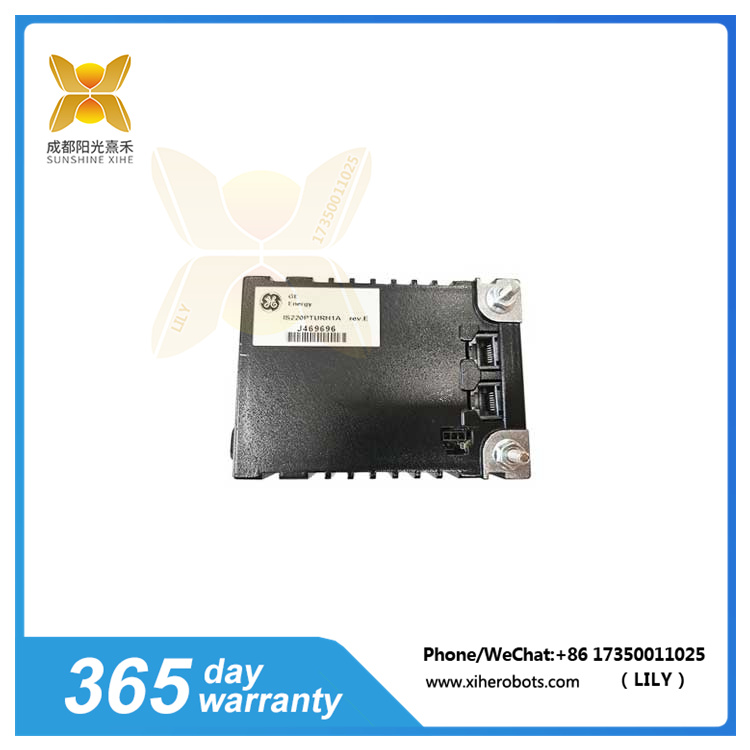

产品细节说明：IS220PTURH1A GE 涡轮控制模块

设计用途：专为 Mark VI 系统设计，作为涡轮控制模块，用于精确控制和监视燃气或蒸汽涡轮机的运行。
功能：作为一次汽轮机专用一次跳闸组件，提供汽轮机控制端子板和一个或两个以太网之间的电气接口。
接口：具备多个 LED 指示灯和红外端口，用于状态监控和配置。可能包含以太网、RS-232、RS-485 等多种通讯接口。
处理器和内存：可能搭载 PowerPC 604e 处理器，具备 333MHz 的处理速度和 256MB SDRAM 内存，以及 2MB 的闪存存储。
自动重新配置：支持自动从控制器下载 I/O 包，包括基本加载、引导加载、固件和参数，以实现自动重新配置。
冗余设计：采用冗余设计，确保系统的可靠运行。
模块化设计：易于维护和更换，具有高可维护性。

IS220PTURH1A

产品详情参数：IS220PTURH1A GE 涡轮控制模块

电源：24V DC
输入电压：20V 至 30V DC
输出电压：5V DC
输出电流：2A
工作温度：-40℃ 至 85℃
外形尺寸：100mm × 50mm × 30mm
重量：约 150g 至 1 公斤
安装类型：DIN 导轨
保护功能：具有过载保护和短路保护
接口：包括两个 10/100 以太网端口、RS-232、RS-485 等
内存与存储：包括 256MB SDRAM 和 2MB 闪存
处理器：采用 PowerPC 604e，333MHz
FPGA：是 Xilinx XC4000E-3S

IS220PTURH1A GE 应用领域：

该模块在燃气轮机和蒸汽轮机的控制应用中发挥着重要作用，能够执行速度控制、压力控制、温度控制、振动控制和故障监测等任务。它广泛应用于发电厂、船舶推进系统以及石油和天然气生产设施，提高生产效率和安全性。

Product Details: IS220PTURH1A GE Turbine Control Module
Design purpose: Designed specifically for Mark VI systems as a turbine control module for precise control and monitoring of the operation of gas or steam turbines.
Function: As a dedicated trip component for a steam turbine, it provides an electrical interface between the turbine control terminal board and one or two Ethernet networks.
Interface: Equipped with multiple LED indicator lights and infrared ports for status monitoring and configuration. It may include various communication interfaces such as Ethernet, RS-232, RS-485, etc.
Processor and Memory: It may be equipped with a PowerPC 604e processor, which has a processing speed of 333MHz, 256MB SDRAM memory, and 2MB flash storage.
Automatic reconfiguration: Supports automatic download of I/O packages from the controller, including basic loading, boot loading, firmware, and parameters, to achieve automatic reconfiguration.
Redundancy design: Adopting redundancy design to ensure the reliable operation of the system.
Modular design: easy to maintain and replace, with high maintainability.
Product details and parameters: IS220PTURH1A GE turbine control module
Power supply: 24V DC
Input voltage: 20V to 30V DC
Output voltage: 5V DC
Output current: 2A
Working temperature: -40 ℃ to 85 ℃
Dimensions: 100mm × 50mm × 30mm
Weight: Approximately 150g to 1kg
Installation type: DIN rail
Protection function: equipped with overload protection and short circuit protection
Interface: including two 10/100 Ethernet ports, RS-232, RS-485, etc
Memory and storage: including 256MB SDRAM and 2MB flash memory
Processor: PowerPC 604e, 333MHz
FPGA: It is Xilinx XC4000E-3S
IS220PTURH1A GE application areas:

This module plays an important role in the control applications of gas turbines and steam turbines, and can perform tasks such as speed control, pressure control, temperature control, vibration control, and fault monitoring. It is widely used in power plants, ship propulsion systems, and oil and gas production facilities to improve production efficiency and safety.

其他型号推荐：IS220PTURH1A GE 涡轮控制模块

购买咨询热线/Phone：18859254943
邮箱/Email：sales@ygdcs.com
地址：成都高新区天益街北巷52号附14号2层
