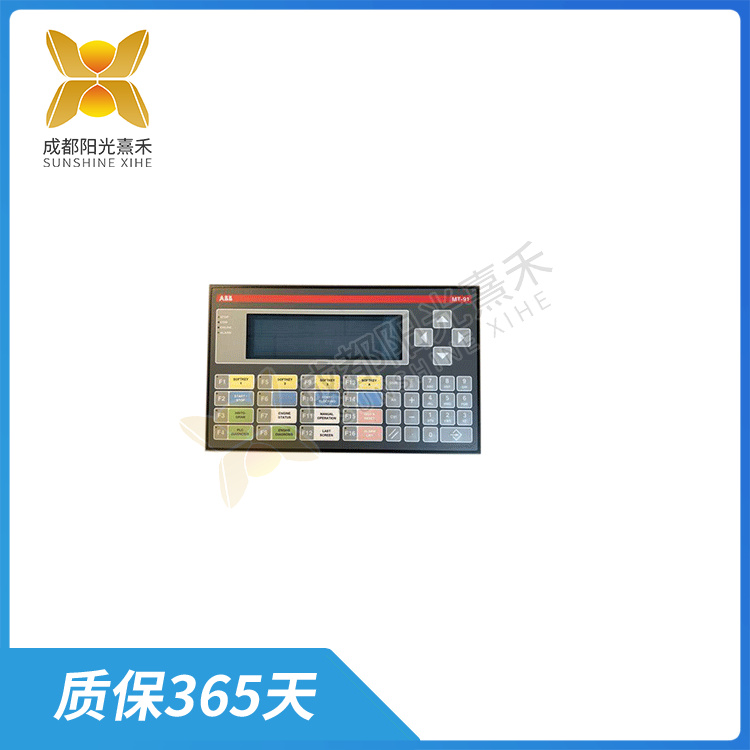

MT-91-ARC-FP-A-MT-91 常用于控制、监视或操作机器、设备或系统

描述

MT-91-ARC-FP-A-MT-91 常用于控制、监视或操作机器、设备或系统

操作面板MT-91-ARC-FP-A-MT-91是一种用户界面设备，通常用于控制、监视或操作机器、设备或系统。操作面板可以包括各种输入和输出设备，如按钮、开关、指示灯、显示屏等。

MT-91-ARC-FP-A-MT-91控制显示面板是一款专门用于机器人控制和显示的操作面板。它具有高清晰度的彩色触摸屏，提供直观、易用的操作界面，方便用户对机器人进行编程、操作和维护。同时，它还支持多种语言显示，适应不同国家和地区用户的需求。

在操作面板上，用户可以通过触摸屏幕进行各种操作，如选择菜单、输入参数、控制机器人运动等。操作面板还可以显示机器人的状态信息、错误信息、工作参数等，帮助用户了解机器人的运行情况和及时进行维护。

需要注意的是，不同厂家和型号的操作面板可能具有不同的功能和特点，用户在使用时需要参考相应的产品手册或操作指南，以确保正确、安全地操作设备。

MT-91-ARC-FP-A-MT-91是一款控制显示面板，由ABB生产。以下是其主要的规格参数：

尺寸：其规格尺寸为200×20×50mm。
耐压强度：在输入/输出/通讯之间，其耐压强度达到或超过1000V.AC，持续时间为1分钟。
绝缘阻抗：在输入/输出/通讯之间，其绝缘阻抗达到或超过100MΩ。
工作温度：其工作温度的范围为0～50℃。
相对湿度：其相对湿度的容忍度不超过85%RH。
装置方式：适用于35mmDIN导轨装置。
装置尺度：装置尺度为22.5×110×115mm（宽×高×深）。
测量精度：其测量精度为0.3%FS±1字。
响应时刻：其响应时刻不超过1秒。
重量：其重量约为150克。

MT-91-ARC-FP-A-MT-91 常用于控制、监视或操作机器、设备或系统

Operation Panel MT-91-ARC-FP-A-MT-91 is a user interface device typically used to control, monitor, or operate a machine, device, or system. The operating panel can include various input and output devices, such as buttons, switches, indicators, display screens, etc.

The MT-91-ARC-FP-A-MT-91 Control Display Panel is an operation panel specially designed for robot control and display. It features a high-definition color touch screen that provides an intuitive, easy-to-use interface for programming, operating and maintaining the robot. At the same time, it also supports multiple language display to adapt to the needs of users in different countries and regions.

On the operation panel, users can perform various operations by touching the screen, such as selecting menus, entering parameters, and controlling robot movements. The operation panel can also display the robot’s status information, error information, working parameters, etc., to help users understand the robot’s operation and timely maintenance.

It should be noted that different manufacturers and models of the operation panel may have different functions and characteristics, users need to refer to the corresponding product manual or operation guide when using to ensure the correct and safe operation of the device.

The MT-91-ARC-FP-A-MT-91 is a control display panel manufactured by ABB. The following are the main specifications:

Size: Its specification size is 200×20×50mm.
Compressive strength: between input/output/communication, the compressive strength reaches or exceeds 1000V.AC, and the duration is 1 minute.
Insulation impedance: between input/output/communication, its insulation impedance reaches or exceeds 100MΩ.
Operating temperature: Its operating temperature range is 0 ~ 50℃.
Relative humidity: Its relative humidity tolerance does not exceed 85%RH.
Device mode: Suitable for 35mmDIN rail device.
Device size: Device size is 22.5×110×115mm (width × height × depth).
Measurement accuracy: The measurement accuracy is 0.3%FS±1 word.
Response time: The response time does not exceed 1 second.
Weight: It weighs about 150 grams.
