MVI56E-61850S 服务器通信组件

Description

MVI56E-61850S 服务器通信组件

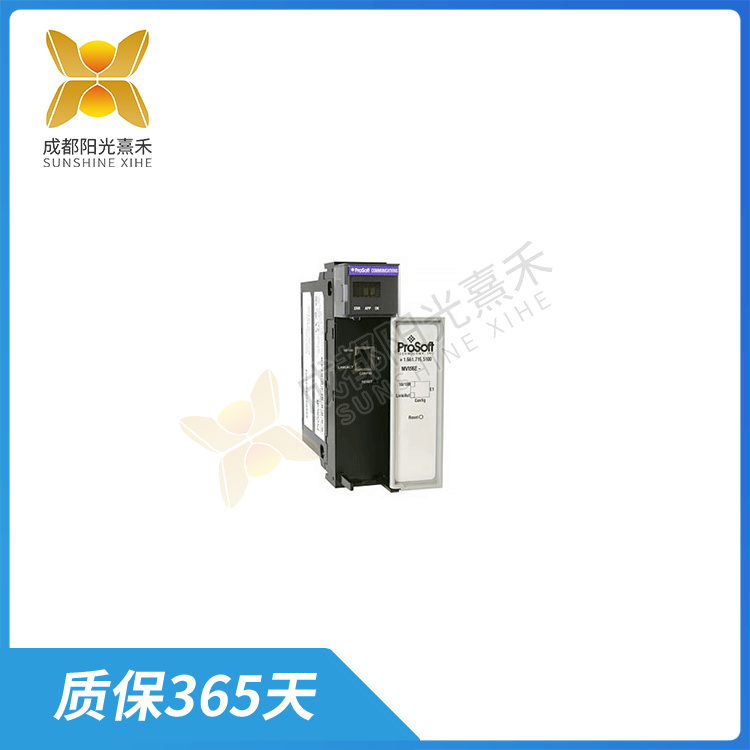

MVI56E-61850S是一款以太网通信模块，主要用于Rockwell Automation的ControlLogix PACs（可编程自动化控制器）与IEC 61850标准的以太网之间的通信。这使得非智能的变电站设备，如变压器和开关设备，可以将其数据作为IEC 61850 IED（智能电子设备）提供给SCADA（监控和数据采集）系统。

该模块具有多种通信功能，包括RS232、RS422、RS485等串口通信方式，以及有线和无线以太网通信。此外，它还支持GPRS、CDMA、GSM等移动网络标准。这使得MVI56E-61850S能够适应多种不同的通信环境和需求。

在开发方面，该模块提供了丰富的组件和控件，构成了强大的HMI（人机界面）开发系统。同时，它还支持面向对象编程方式，内置间接变量、中间变量、数据库变量，支持自定义函数和自定义菜单。这使得开发者能够更加方便、灵活地进行软件开发。

此外，MVI56E-61850S还具有开放性，其软件为开放式体系结构，支持DDE、OPC、ODBC/SQL、AcTIveX、DNA等标准。这使得该模块能够与其他系统进行无缝集成，提高了系统的互操作性和可扩展性。

在硬件方面，MVI56E-61850S的密度范围从4点到32点，模块率为IP20、I类、2/ZONE 2。某些模块还具有现场侧诊断、电子熔断或单独隔离的输入/输出功能。此外，该模块使用ControlLogix电源1756机箱直接提供1.2V、3.3V、5V和24V直流电源。

需要注意的是，虽然MVI56E-61850S具有多种功能和优点，但在实际应用中，还需要根据具体的需求和环境进行选择和配置。同时，也需要参考相应的产品手册或技术文档，以确保正确、安全地安装和使用。

MVI56E-61850S 服务器通信组件

The MVI56E-61850S is an Ethernet communication module for communication between Rockwell Automation’s ControlLogix PACs (Programmable Automation Controller) and IEC 61850 standard Ethernet. This allows non-intelligent substation equipment, such as transformers and switchgear, to feed their data to SCADA (Supervisory Control and Data Acquisition) systems as IEC 61850 IED (Intelligent Electronic Devices).

The module has a variety of communication functions, including RS232, RS422, RS485 and other serial communication modes, as well as wired and wireless Ethernet communication. In addition, it also supports GPRS, CDMA, GSM and other mobile network standards. This enables the MVI56E-61850S to adapt to many different communication environments and needs.

In terms of development, the module provides a wealth of components and controls that constitute a powerful HMI (Human machine interface) development system. At the same time, it also supports object-oriented programming, built-in indirect variables, intermediate variables, database variables, support for custom functions and custom menus. This makes it more convenient and flexible for developers to develop software.

In addition, the MVI56E-61850S also has an open software architecture, supporting DDE, OPC, ODBC/SQL, AcTIveX, DNA and other standards. This enables the module to be seamlessly integrated with other systems, improving the interoperability and scalability of the system.

In terms of hardware, the MVI56E-61850S has a density range from 4 points to 32 points, with module rates of IP20, Class I, 2/ZONE 2. Some modules also have input/output functions for field side diagnostics, electronic fusing, or separate isolation. In addition, the module uses the ControlLogix power Supply 1756 chassis to directly supply 1.2V, 3.3V, 5V, and 24V DC power supplies.

It should be noted that although the MVI56E-61850S has a variety of functions and advantages, in practical applications, it also needs to be selected and configured according to specific needs and environments. At the same time, you also need to refer to the corresponding product manual or technical documentation to ensure correct and safe installation and use.
