MVI56E-MNET Modbus TCP/IP通信模块

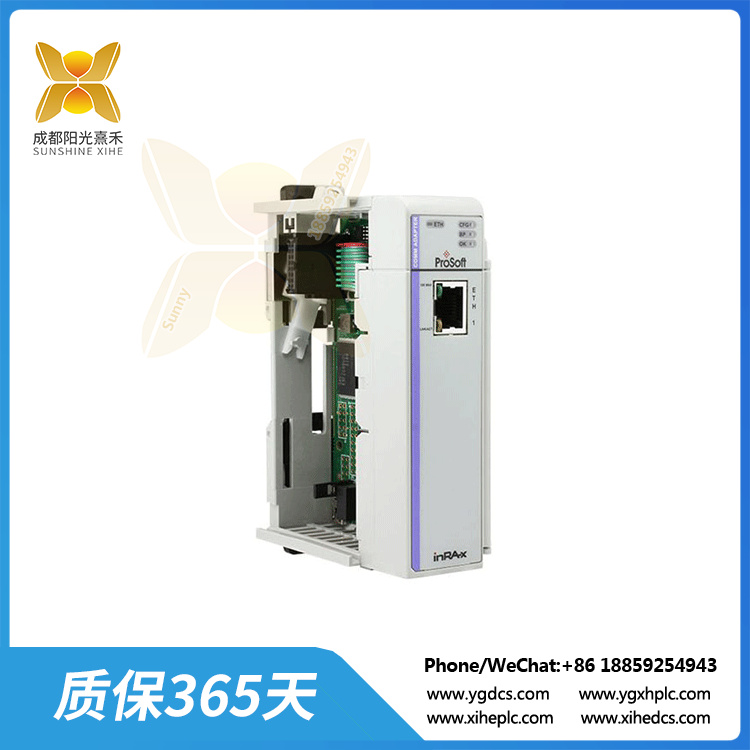

MVI56E-MNET是由ProSoft Technology发布的一种Modbus TCP/IP通信模块，专为Rockwell Automation的ControlLogix可编程自动化控制器（PACs）设计。这种模块的主要功能是简化使用Modbus TCP/IP协议的设备之间的连接，包括Modicon PAC以及各种仪器和设备。

具体来说，MVI56E-MNET模块具备多种功能和特性：

1. 兼容性与扩展性：该模块与现场现有的MVI56 Modbus TCP/IP通信模块共享梯形逻辑和模块配置文件，向后兼容，同时它使用小型I/O数据映像来扩展应用程序的I/O，非常适合模块位于远程机架中的ControlNet或以太网应用。
2. 多客户端/服务器支持：MVI56E-MNET模块支持多达30个MODBUS客户端和20个MODBUS服务器，并且在主服务器中，支持30个客户端与多达16个命令的连接，同时支持与多个服务器通信。
3. 数据处理能力：该模块能够处理读取数据和写入数据，一次可以对40个已注册的读取或写入数据块进行分页，总共能够处理600个读取数据寄存器和600个写入数据寄存器。
4. 硬件配置与工作环境：MVI56E-MNET模块占用ControlLogix机箱的单个插槽，功耗为5mA在800 VDC和24mA在3 VDC的可用电源下。其工作温度范围为32至140华氏度，存储温度范围为-40至185华氏度，并能承受5%到95%的相对湿度，而不会发生冷凝。
5. 配置与编程：为了配置该模块，需要使用ProSoft配置生成器（PCB）。此外，如果与附加指令（AOI）一起使用，则需要版本16或更高版本，而与提供的示例梯形图程序一起使用，则需要版本15或更高版本。

综上所述，MVI56E-MNET是一种功能强大且灵活的通信模块，非常适合在需要Modbus TCP/IP通信的工业自动化和控制系统中使用。

MVI56E-MNET Modbus TCP/IP通信模块

The MVI56E-MNET is a Modbus TCP/IP communication module released by ProSoft Technology and designed for Rockwell Automation’s ControlLogix Programmable Automation Controller (PACs). The main function of this module is to simplify the connection between devices using the Modbus TCP/IP protocol, including Modicon PAC and various instruments and devices.

Specifically, the MVI56E-MNET module has a variety of functions and features:

Compatibility and scalability: The module shares ladder logic and module configuration files with existing MVI56 Modbus TCP/IP communication modules in the field, is backward compatible, and it uses small I/O data images to extend the I/O of applications, making it ideal for ControlNet or Ethernet applications where the module is located in a remote rack.

Multi-client/Server support: The MVI56E-MNET module supports up to 30 MODBUS clients and 20 MODBUS servers, and in the main server, supports the connection of 30 clients with up to 16 commands, while supporting communication with multiple servers.

Data processing capability: The module can handle read and write data, and can page 40 registered read or write data blocks at a time, and can handle a total of 600 read data registers and 600 write data registers.

Hardware configuration and working environment: The MVI56E-MNET module occupies a single slot in the ControlLogix chassis and consumes 5mA at 800 VDC and 24mA at 3 VDC of available power. It operates in a temperature range of 32 to 140 degrees Fahrenheit, has a storage temperature range of -40 to 185 degrees Fahrenheit, and can withstand 5 to 95 percent relative humidity without condensation.

Configuration and Programming: In order to configure this module, you need to use the ProSoft Configuration Generator (PCB). In addition, version 16 or higher is required if used with Additional Instructions (AOI), and version 15 or higher is required when used with the provided example ladder diagram program.

In summary, the MVI56E-MNET is a powerful and flexible communication module that is ideal for use in industrial automation and control systems that require Modbus TCP/IP communication.
