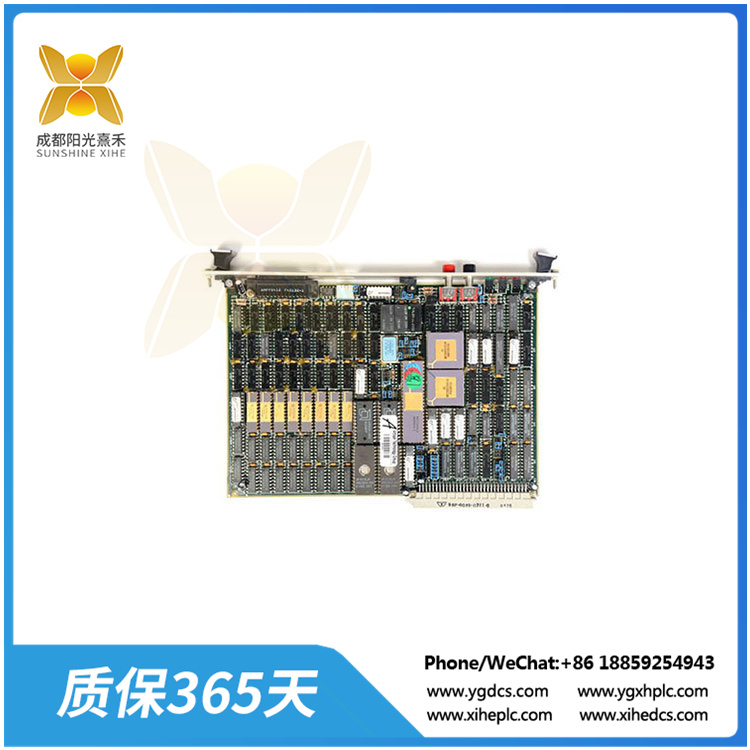

MVME120 VMEbus微处理器模块

Description

MVME120 VMEbus微处理器模块

MVME120 VMEbus微处理器模块

Configuration:
• Processor: MC68010, 10 MHz
• Floating Coprocessor: MC68451, 10 MHz
• Memory: 128 KB DRAM

Part Number: 01-W3293B 01

Features:
2 28-pin ROMEPROM sockets
Onboard two-port RAM with byte parity. Interrupt handler
Status and control registers. Programmable timer
.RS-232C serial debugging port
The Emerson/MOTOROLA MME120, MVME121, MME 122 and MME123 VMEbus microprocessor modules provide solutions for high-speed data processing, management and control applications.

The module contains an MC68010MPU, MC8451MMU, a logic instruction cache, a serial debug port, a programmable tick timer, dedicated ROM, and one When used together with a system controller module (MVMEO50 system controller or MMMEIO CPU module)- a large dynamic dual-port RAMRMPU module that can be loaded externally via VWMEbus, the system requirements range from simple, high-speed single-processor applications to complex multi-processor system architectures.
