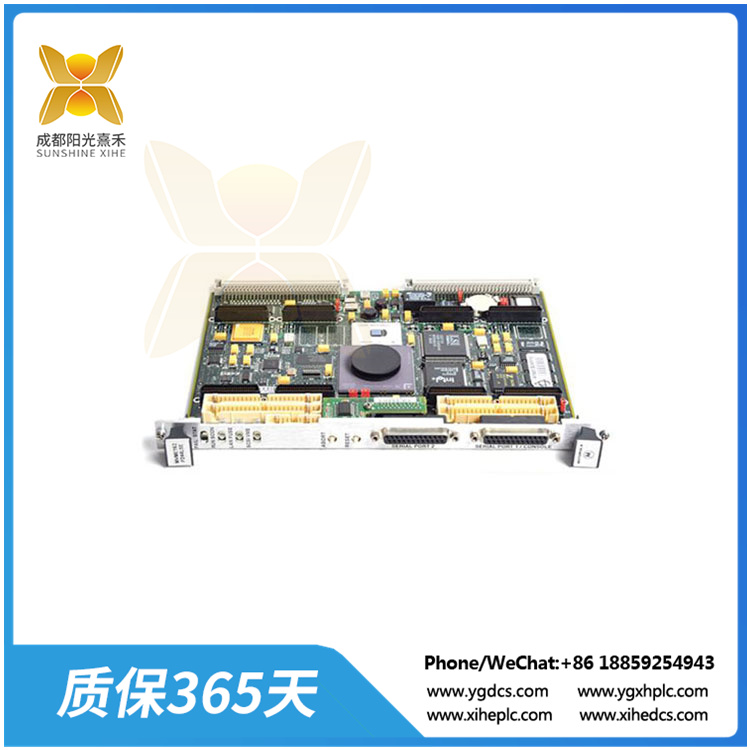

MVME162P-244LSE 嵌入式控制器

Description

MVME162-453 嵌入式控制 器串口控制器

MVME162-453 嵌入式控制 器串口控制器

Configuration:
• 25 MHz MC68LC040 Microprocessor
• First-Generation Petra ASIC Chip
• 16 MB DRAM
• 512 KB SRAM
• 1 MB Flash Memory
• (4) IndustryPack Ports
• (1) BIOS Chip Installed
• Serial Port B Interface: EIA-232-D (DCE) Serial Interface Module, Model Number: SIMM06

Part Number: 01-W3528F 51E

Features:
● Double height VME module
.MC68L C040 or MC68040 microprocessor
1MB, 4MB, or 8MB parity protection DRAM
●512KB SRAM
The Emerson/MOTOROLA MVME162P-244LSE is a dual-height VME module with the MC68LC040 or optional MC68040 microprocessor. (The MC68040 microprocessor has one floating point coprocessor;
The MC68LC040 does not.) The MVME162 has 1MB, 4MB or 8MB parity protection DRAM512KB SRAM(with spare battery); – One TOD clock (with spare battery); – One with DMA
Optional Ethernet transceiver interface, two serial ports (EIA-232-D and EIA-232-D/EIA-530); Six tick timers with see i] dog timers; Optional SCSI bus connection with DMA
Mouth; VMEbus interface (local bus to VMEbus/MEbus to local bus, with A16/A24/A32, D8/D16/D32 bus width and a VMEbus system controller).
