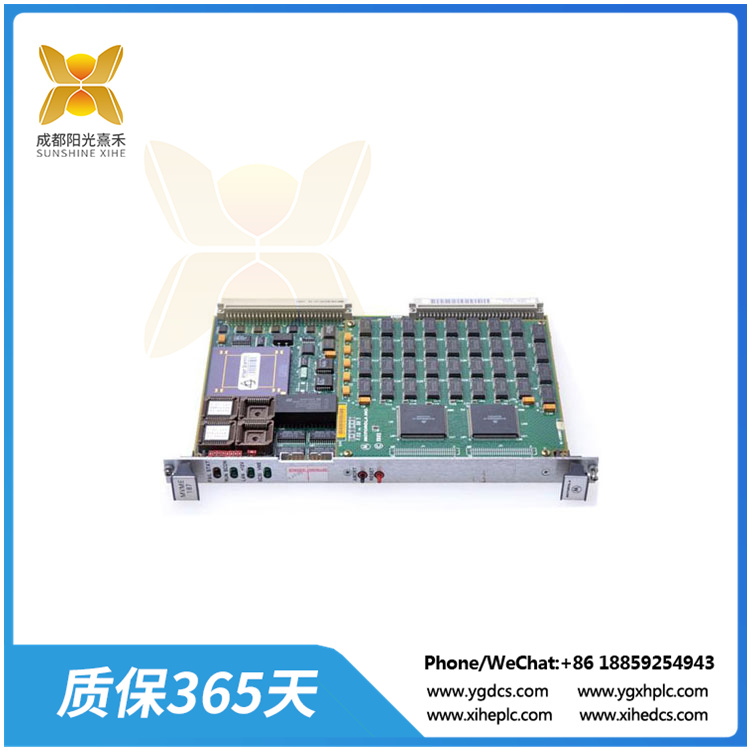

MVME187-004B RISC 单板计算机

Description

MVME187-004B RISC 单板计算机

MVME187-004B RISC 单板计算机

Configuration:
• 25 MHz Processor
• 32 MB DRAM
• (1) MC88100 MPU and (2) MC88200 CMMUs
• (4) 44-Pin PLCC ROM Sockets
• 128 KB Static RAM
• BIOS Version 2.3

Part Number: 01-W3827B 09A, 01-W3689B 04E
Daughtercard Part Number: 01-W3800B 04A, 01-W3690B 04D

Use Caution When Exposing or Handling the CRT：
Breakage of the Cathode-Ray Tube (CRT) causes a high-velocity scattering of glass fragments (implosion).
To prevent CRT implosion, avoid rough handling or jarring of the equipment. Handling of the CRT should
be done only by qualified maintenance personnel using approved safety mask and gloves.

Do Not Substitute Parts or Modify Equipment：
Because of the danger of introducing additional hazards, do not install substitute parts or perform any
unauthorized modification of the equipment. Contact your local Motorola representative for service and
repair to ensure that safety features are maintained.

Dangerous Procedure Warnings：
Warnings, such as the example below, precede potentially dangerous procedures throughout this manual.
Instructions contained in the warnings must be followed. You should also employ all other safety
precautions which you deem necessary for the operation of the equipment in your operating environment.
