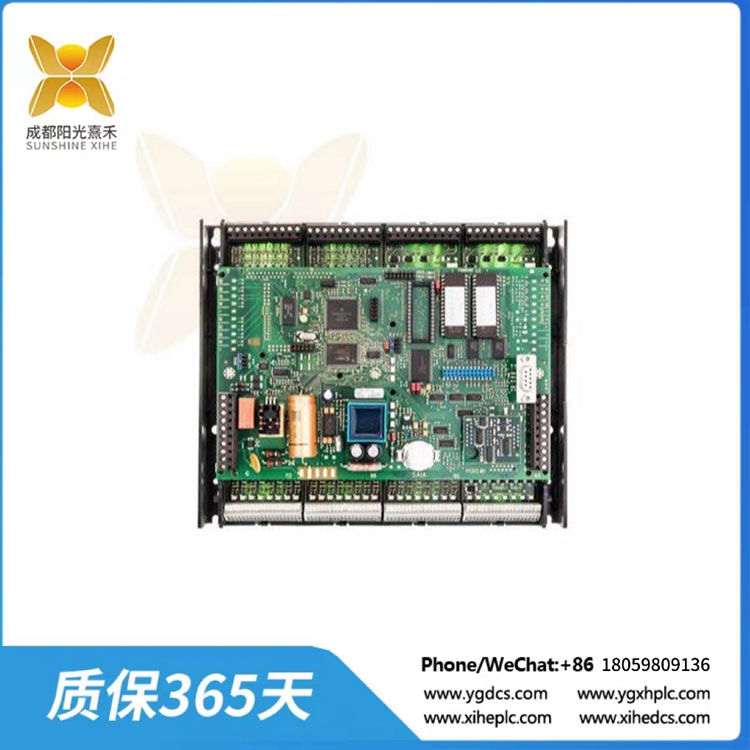

PCD2-M110-CPU 中央处理器

Description

PCD2-M110-CPU 中央处理器

图形索引从PCD1/PCD2系列的硬件手册中挑选出一些亮点，并允许您单击组件/连接器直接跳转到相应的部分。从目录跳转到任何部分的功能仍有待完成。

本手册涵盖了PCD1和PCD2组件的技术方面。经常使用的术语如下:
●CPU中央处理器:赛亚PCD®的核心
远程I/ o:通过Profibus等现场总线连接到CPU的输入和输出
本地I/O:通过I/O总线或RIO(即尽可能短的电缆)连接到CPU。
模块输入/输出元件，安装在外壳内，与PCD1/2系统相匹配
模块包含cpu、io或io，模块可以连接到这些模块上
概述部分的目的是介绍规划和安装具有PCD1/2组件的控制系统的要点。它包括以下主题:
●规划应用程序
●布线
硬件、软件、配置、维护和故障排除的详细信息将在单独的章节中描述。

在规划PCD1/2应用时应考虑以下几个方面:
●I/O模块从+ 5v和V+电源获取的内部负载电流不得超过cpu指定的最大电源电流
●CPU类型决定最大模块数量
●I/O总线的总长度受技术因素限制;越短越好在计划申请时，我们推荐以下程序:
请根据实际情况选择io模块。

PCD2-M110-CPU

PCD2-M110-CPU 中央处理器

The Graphic index picks out some highlights from the hardware manuals of the PCD1/PCD2 series and allows you to click components/connectors to jump directly to the corresponding section. The ability to jump from the table of contents to any section is still to be completed.

This manual covers the technical aspects of PCD1 and PCD2 components. The following terms are commonly used:
●CPU Central processing unit: the core of Saiya PCD®
Remote I/ o: The input and output connected to the CPU via a fieldbus such as Profibus
Local I/O: Connect to the CPU via the I/O bus or RIO(i.e. the shortest possible cable).
The module input/output element, which is mounted in the housing, matches the PCD1/2 system
The module contains the cpu, io, or io, to which the module can be attached
The purpose of the overview section is to introduce the essentials of planning and installing a control system with PCD1/2 components. It covers the following topics:
● Planning applications
● Wiring
Details of hardware, software, configuration, maintenance, and troubleshooting are described in separate sections.

The following aspects should be considered when planning PCD1/2 applications:
The internal load current obtained by the I/O module from the + 5v and V+ power supply shall not exceed the maximum power supply current specified by the cpu
●CPU type determines the maximum number of modules
● The total length of the I/O bus is limited by technical factors; The shorter the better when planning applications, we recommend the following procedures:
 Select the I/O module as required.
