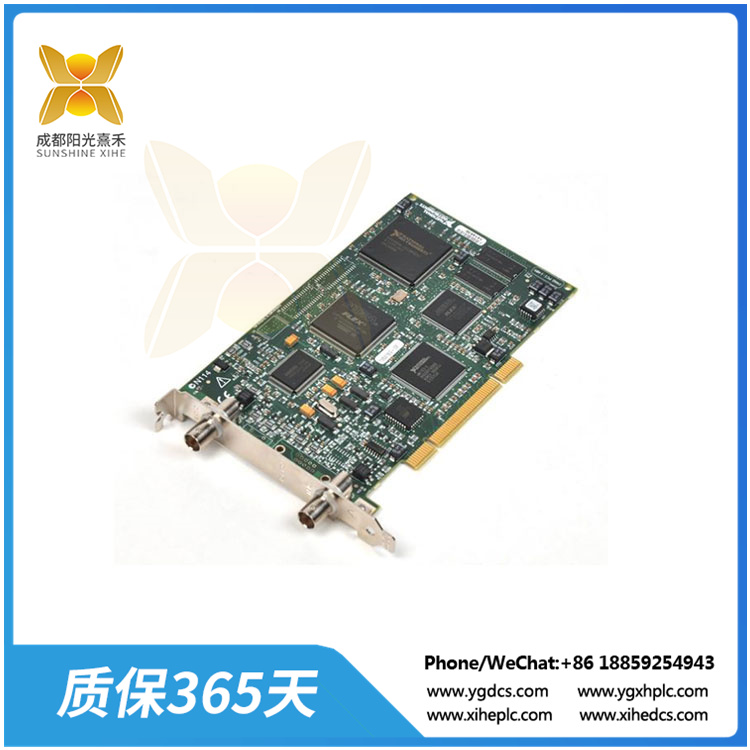

PCI-1405 帧接收器设备

Description

PCI-1405 帧接收器设备

PCI-1405 帧接收器设备

Configuration:
• PCI Card Voltage: 3.3/5 V

Part Number: 185816G-02

Single channel, color, or monochrome frame receiver device – The PCI-1405 is a PCI monochrome and color image acquisition device that supports a wide range of analog cameras offered by many camera companies. The NI 1405 captures images in real time and stores them in the on-board frame memory or transfers them directly to the system memory. The PCI-1405 supports the NTSC and PAL color standards as well as the RS-170 and CCIR monochrome standards. The PCI-1405 also provides an external input/output (I/O) line that you can use as a trigger or digital I/O line.

Features:
Color or Monochrome Acquisition
Partial Image Acquisition
On-board Programmable Region of Interest
Programmable Gain and Offset
The NI PCI-1405 / IMAQ PCI-1405 Single-Channel Color Image Acquisition Module comes with easy-to-use image acquisition driver software which allows the PCI-1405 / IMAQ PCI-1405 to acquire, save, and display images. Unlike multimedia “fame grabbers,” the PCI-1405 / IMAQ PCI-1405 features increased image processing throughput, such as partial image acquisition with programmable region of interest.
