PCI-4060 5.5位万用表(NI 4060)

Description

PCI-4060 5.5位万用表(NI 4060)

PCI-4060 5.5位万用表(NI 4060)

Probes sold separately.

Configuration:
• Voltage: Universal PCI 3.3V and 5V

Part Number: 184636J-01

Features:
DC Measurements – 20 mV to 250 VDC; 20 mA to 10 A
AC Measurements – 20 mVrms to 250 Vrms; 20 mArms to 10 Arms; true rms, 20 Hz to 25 kHz
60 Readings/s, Maximum
Resistance Measurements – 200 ohm to 200 Mohm

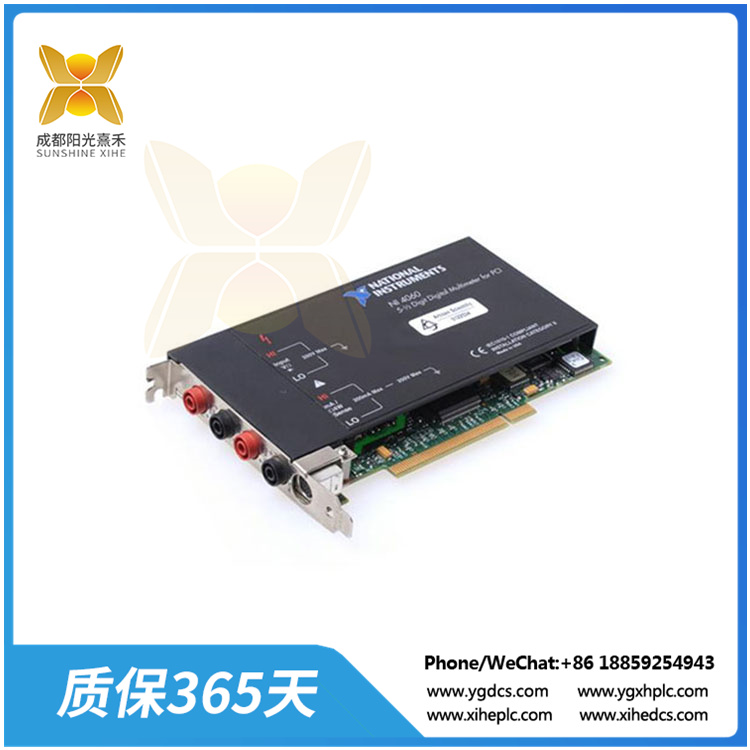

The National Instruments PCI-4060 / NI 4060 is a full-feature digital multimeter. It makes accurate 5 1/2-digit measurements of DC voltage and current, true rms AC voltage and current, and resistance (ohms). The NI PCI-4060 multimeter is ideal for use in automating production test, portable field test, and benchtop electronic test. When used with relay scanners, such as the NI PXI-2501, NI PXI-2503, or NI SCXI-1127, NI SCXI-1128, NI SCXI-1129, you can measure up to thousands of channels, consisting of, RTDs, thermistors, and current loops.
