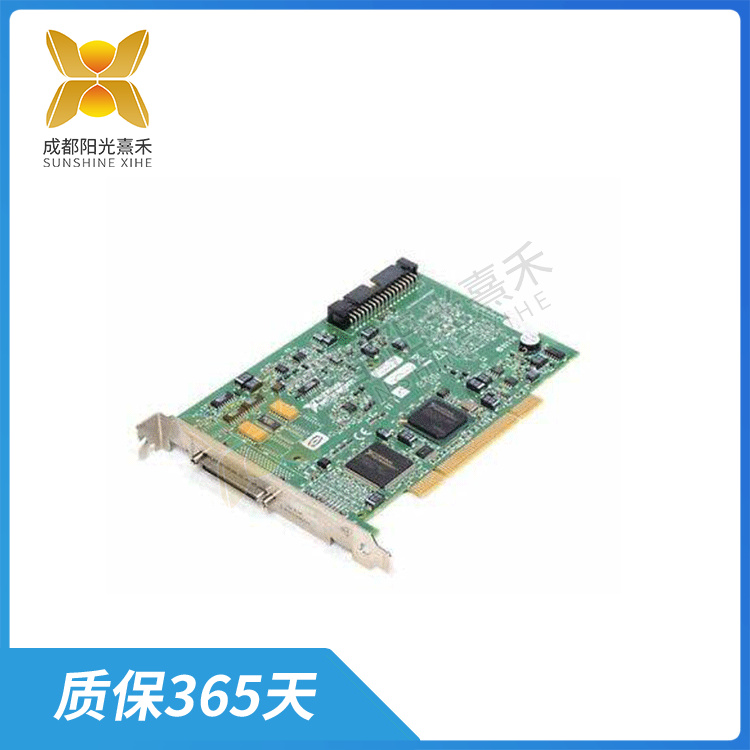

PCI-6220 多功能数据采集（DAQ）板卡

Description

PCI-6220 多功能数据采集（DAQ）板卡

PCI-6220是一款由美国国家仪器（National Instruments）生产的多功能数据采集（DAQ）板卡。它是一款16位、250 kS/s（每秒采样数）的采集卡，具备16路模拟输入。这种数据采集卡被广泛应用于各种需要精确数据采集和处理的场合，如电子设计、通信测试、射频应用以及自动化测试系统等。

PCI-6220具有许多显著的特点和功能。首先，它具备24路数字I/O，这意味着它可以同时处理大量的数字信号输入和输出。此外，它还包含32位计数器以及数字触发功能，这些特性都极大地增强了其数据采集和处理的能力。

其次，PCI-6220采用了NI-MCal校准技术，这种技术可以显著提高测量的精度。同时，它还具备关联（Correlated）DIO（8条时钟线，1 MHz）以及NIST校准认证书，这些特性都保证了数据采集的准确性和可靠性。

在硬件设计上，PCI-6220提供了5倍采样速率的高速M系列和4倍分辨率的高精度M系列两种选择，以满足不同应用场景的需求。此外，它还支持NI-DAQmx驱动软件和NI LabVIEW SignalExpress交互式数据记录软件，这使得用户可以更方便地进行数据采集、分析和记录。

总的来说，PCI-6220是一款功能强大、性能卓越的数据采集卡，适用于各种需要高精度数据采集和处理的场合。无论是电子工程师、科研人员还是自动化测试系统的开发者，都可以从PCI-6220中找到满足其需求的解决方案。

PCI-6220 多功能数据采集（DAQ）板卡

The PCI-6220 is a multi-function Data acquisition (DAQ) board manufactured by National Instruments. It is a 16-bit, 250 kS/s (samples per second) capture card with 16 analog inputs. This data acquisition card is widely used in various applications requiring accurate data acquisition and processing, such as electronic design, communication testing, RF applications, and automated test systems.

The PCI-6220 has a number of notable features and functions. First, it has 24-way digital I/O, which means it can handle a large number of digital signal inputs and outputs simultaneously. In addition, it includes 32-bit counters and digital trigger functions, which greatly enhance its data acquisition and processing capabilities.

Secondly, the PCI-6220 uses NI-MCal calibration technology, which can significantly improve the accuracy of the measurement. At the same time, it also had Correlated DIO (8 clock lines, 1 MHz) and NIST calibration certification, which guaranteed the accuracy and reliability of data acquisition.

In terms of hardware design, the PCI-6220 provides two options of high-speed M series with 5 times the sampling rate and high-precision M series with 4 times the resolution to meet the needs of different application scenarios. In addition, it also supports Ni-DAQMX driver software and NI LabVIEW SignalExpress interactive data logging software, which makes it easier for users to collect, analyze and record data.

Overall, the PCI-6220 is a powerful, high-performance data acquisition card suitable for a variety of applications requiring high-precision data acquisition and processing. Whether they are electronics engineers, researchers or developers of automated test systems, they can find solutions to meet their needs in the PCI-6220.
