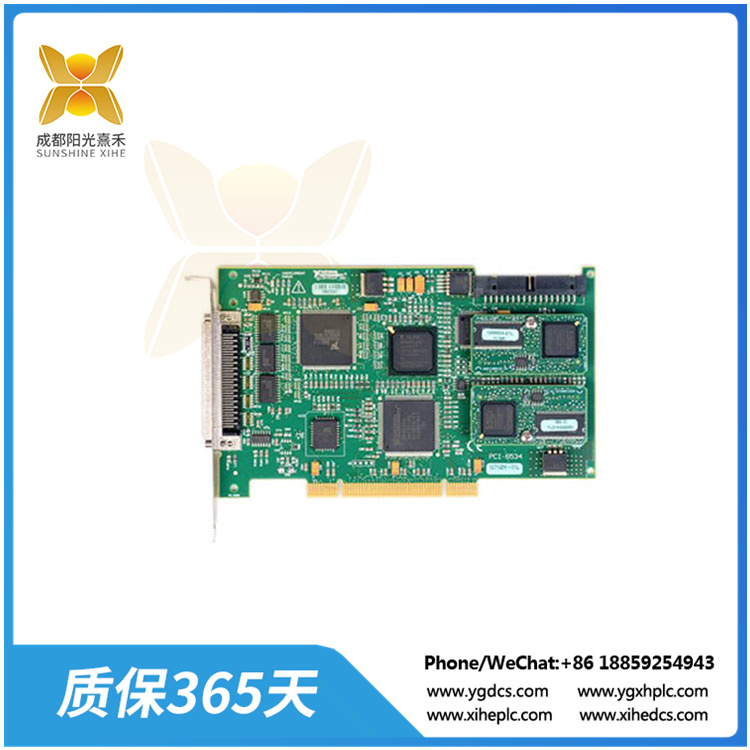

PCI-6534 高速模式I/O和握手PCI卡

Description

PCI-6534 高速模式I/O和握手PCI卡

PCI-6534 高速模式I/O和握手PCI卡

Configuration:
• Memory/Channel: 32 MB
• PCI Card Voltage: 3.3 / 5 V

Part Number: 187142H-01L, 187142F-01, 187142G-01, 187142H-01, 187144E-01, 187142E-01

Features:
80 MB/s Maximum Transfer Rate
8, 16, or 32-Bit Transfers
32 Digital I/O Lines (5 V TTL/CMOS)
Start and Stop Triggering, Pattern and Change Detection
32 MB RAM
The NI PCI-6534 is a high-speed, 32-bit, parallel, digital I/O interface for PCI, PXI, PCMCIA, and ISA. This card incorporates the NI DAQ-DIO ASIC, which is specifically designed to deliver high performance on plug-in DIO devices. It delivers digital I/O coupled with large onboard memory for high-speed pattern I/O at deterministic rates.

The PCI-6534 performs pattern I/O and high-speed data transfer using a wide range of handshaking protocols at speeds up to 80 MB/s. 32 lines can be operated as individually configurable single-line I/O or as 8, 16 or 32-bit ports for pattern I/O and handshaking.
