PCI-6703 模拟输出设备

Description

PCI-6703 模拟输出设备

PCI-6703 模拟输出设备

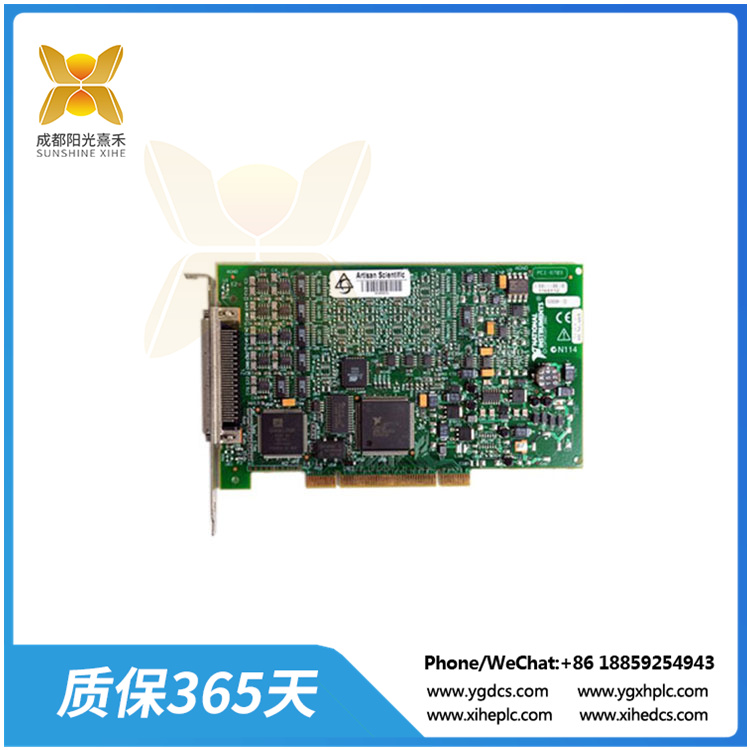

16-bit, channel, Static analog Output device The pci-6703 is a static analog output device for voltage output applications with software timing.

PCI-6703 (Part number :778316-01) is a static 16-voltage output channel analog output device with 16-bit resolution for software timing voltage output applications. Users can connect floating or grounded loads to NI PCI-6703 devices in the output channel. It does not require an external floating power supply to complete the control current loop. The user can control the current loop from 0.1 to 20.2 mA. The loop consistency ranges from 0v to 10vdc. Since each channel shares a ground wire with the voltage channel, the effect of the arrival current from the current channel on the voltage generated on the voltage channel is limited. For example, if a user generates 20 mA on a channel and restores that channel to NI PCI-6703, in a link with an impedance of 0.1Ω, the output voltage will drop by 2 mV on the voltage channel shared with the ground.

The analog output device features custom power-on status, ±10v range, 8 digital I/O lines, DC output coupling and independent, custom power-on status values. The PCI-6703 can be linked to many signal types such as leds, voltage and current excited precision transducers, electromechanical relays, optical isolators, solid state relays and I/O module mounts. The device can be used with NI-DAQ 7.4 or later, as well as without NI application software. net language, LabVIEW for Windows, ANSI C without NI application software, Measurement Studio and LabWindows/CVI for Windows. It comes with a 68-pin male I/O connector.

Users should be careful not to exceed the maximum rating of the output or input signal on the analog output device, as this may cause damage to the computer or device. The NI device is 3.9 x 6.9 inches in size. In the physical dimension. The recommended temperature ranges from 0 to 55 ° C, and the storage temperature ranges from -20 to 70 ° C.
