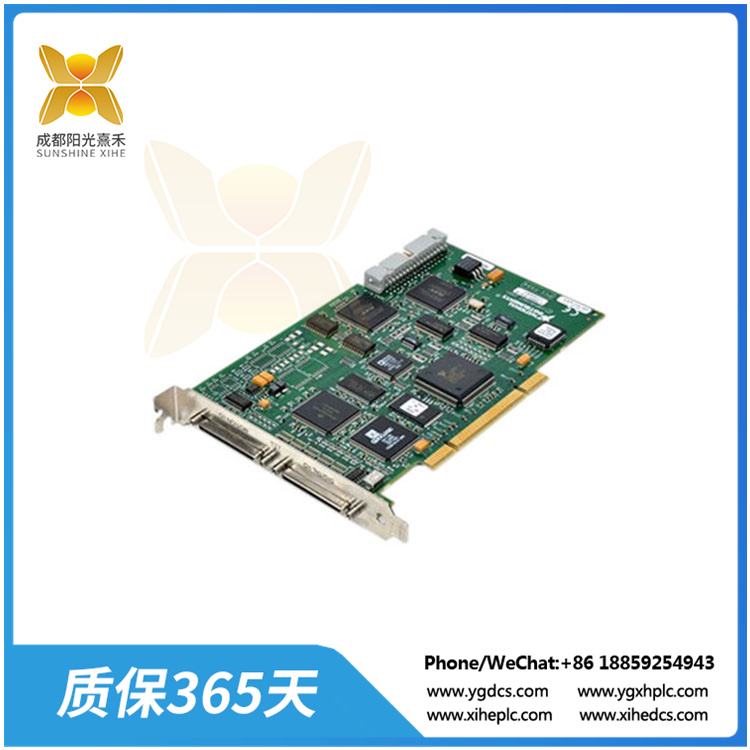

PCI-7334 4 轴 PCI 步进运动控制器

Description

PCI-7334 4 轴 PCI 步进运动控制器

PCI-7334 4 轴 PCI 步进运动控制器

The PCI-7334 can control stepper motors with up to 4 axes.

Part Number :186307C-03, 186307C-06, 190979C-04, 778417-01

Features:
Coordinate linear interpolation for multiple axes
Real-time system integration with data acquisition or image acquisition board
High performance stepper generator to ensure smooth movement at high speed
The NI 7330 controller features advanced motion control features with easy to use software tools and an additional motion VI library for LabVIEW. The 7330 controller is a stepper motor controller for PXI and PCI. The 7330 provides fully programmable motion control for up to four independent or coordinated motion axes, with dedicated motion I/O for limits and home switches, and additional I/O for general-purpose functions. You can use the 7330 motion controller for point-to-point and linear vector movement for stepper motor applications. The 7330 controller adds the ability to perform arbitrary and complex motion trajectories using stepper motors. The stepper shaft can be operated in open or closed loop mode. In closed loop mode, the stepper axis uses an orthogonal encoder or analog input for position and speed feedback (closed loop only) and provides step/direction or clockwise (CW)/counterclockwise (CCW) digital command output. All stepper axes support full step, half step and micro step applications.

The 7334 features an advanced dual-processor architecture that uses a 32-bit CPU, combined with a digital signal processor (DSP) and a custom field programmable gate array (fpga), making the controller a high-performance device. The first in first out (FIFO) bus interface and powerful feature set provide high-speed communication while offloading complex motion functions from the host PC for optimal command throughput and system performance.

NI pci – 7334
The PCI-7334 controller features advanced motion control features with easy-to-use software tools and an additional motion VI library for LabVIEW. The 7334 controller provides fully programmable motion control for up to four independent or coordinated motion axes, with dedicated motion I/O for limits and home switches and additional I/O for general-purpose functions. You can use the 7334 motion controller for point-to-point and straight-line vector movement for stepper motor applications.

4-axis stepper motion Controller device -pci‑7334 is designed for point-to-point motion applications. The PCI-7334 provides linear interpolation for coordinating motion across multiple axes, real-time system integration for direct communication with data acquisition or image acquisition hardware, and high-performance step generation for ensuring smooth motion at high speeds.
