PCI-7811R 高性能数据采集和控制模块

Description

PCI-7811R 高性能数据采集和控制模块

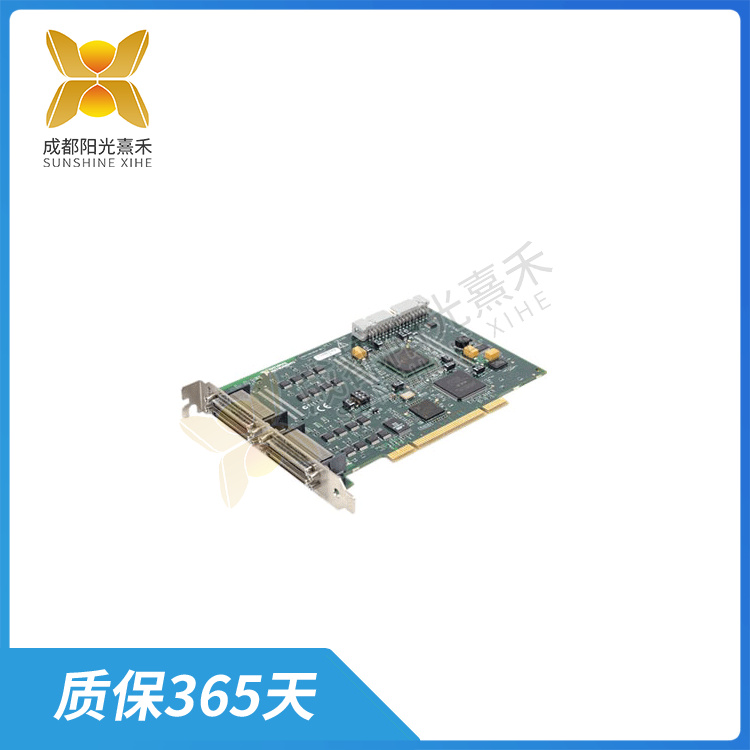

PCI-7811R是一款由美国国家仪器（National Instruments，简称NI）生产的数字RIO（Reconfigurable I/O，可重新配置输入/输出）板卡。这款板卡集成了可编程的FPGA（现场可编程门阵列）芯片，使其特别适合进行板载处理和灵活的I/O操作。

PCI-7811R板卡的主要特点包括：

1. 可编程FPGA芯片：FPGA芯片包含大量可重复编辑的逻辑块，用户可以通过NI LabVIEW图形化程序框图和NI LabVIEW FPGA模块，轻松配置各项功能，以适应不同的应用需求。这种可编程性使得PCI-7811R在处理复杂算法、实现高速数据处理以及进行实时控制等方面具有显著优势。
2. 高速I/O能力：PCI-7811R提供了丰富的I/O引脚（例如160个I/O引脚），以及高速的时钟信号（如40MHz的晶体振荡器），使其能够实现高速的数据传输和精确的定时控制。
3. 广泛的应用领域：PCI-7811R适用于多种应用场景，如高速波形生成、传感器仿真、硬件在环（HIL）测试、误码率测试等。此外，利用其精确控制、高速时钟和大量I/O的特点，PCI-7811R还可以被应用于LED控制等需要频繁快速点亮多个LED的场合。
4. 易于集成和配置：PCI-7811R板卡采用PCI接口，可以直接插入到支持PCI接口的计算机或工控机中。同时，借助NI提供的强大软件工具，用户可以轻松地对板卡进行配置和编程，实现与上位机的通信和数据交换。

总的来说，PCI-7811R是一款功能强大、性能卓越的数字RIO板卡，适用于各种需要高速数据处理、精确定时控制和灵活I/O操作的场合。无论是进行科学研究、工程开发还是工业控制，PCI-7811R都能为用户提供可靠且高效的解决方案。

PCI-7811R 高性能数据采集和控制模块

The PCI-7811R is a digital RIO (Reconfigurable I/O) board manufactured by National Instruments (NI). The board integrates a programmable FPGA (Field Programmable Gate Array) chip, making it particularly suitable for on-board processing and flexible I/O operations.

The main features of PCI-7811R board include:

Programmable FPGA chip: The FPGA chip contains a large number of repeatable logic blocks, and users can easily configure various functions through NI LabVIEW graphical program block diagram and NI LabVIEW FPGA module to adapt to different application needs. This programmability gives PCI-7811R significant advantages in handling complex algorithms, high-speed data processing, and real-time control.

High-speed I/O capability: The PCI-7811R offers a wealth of I/O pins (such as 160 I/O pins), as well as a high-speed clock signal (such as a 40MHz crystal oscillator), enabling high-speed data transmission and precise timing control.

Wide range of applications: The PCI-7811R is suitable for a variety of application scenarios, such as high-speed waveform generation, sensor simulation, hardware-in-the-loop (HIL) testing, bit error rate testing, and more. In addition, with its precise control, high-speed clock and large amount of I/O features, the PCI-7811R can also be used in LED control applications where multiple leds need to be lit frequently and quickly.

Easy to integrate and configure: The PCI-7811R board adopts PCI interface and can be directly inserted into a computer or industrial computer that supports PCI interface. At the same time, with the powerful software tools provided by NI, users can easily configure and program the board, and realize the communication and data exchange with the host computer.

Overall, the PCI-7811R is a powerful, high-performance digital RIO board for applications that require high-speed data processing, precise timing control, and flexible I/O operations. Whether conducting scientific research, engineering development or industrial control, the PCI-7811R provides users with reliable and efficient solutions.
