Description

产品细节说明：PFTL101B 10KN 3BSE004197R1 ABB 压磁式称重传感器

PFTL101B 10KN 3BSE004197R1作为压磁式传感器，其工作原理基于磁性材料在机械力作用下导磁率发生变化的原理。传感器由整块不锈钢制成，并在不锈钢体上冲有四个孔，通过这些孔缠绕有两组互成一定角度的线圈。当在初级线圈中通以交变电流时，会产生磁场。当在传感器的测量方向施加机械力时，初级线圈中的磁场传播方向发生变化，将次级线圈包容进磁场中，从而在次级线圈中产生感应电势。控制单元将这个感应电势转换成一个与被测力对应成比例的直流电压信号。

1. 高精度：传感器能够准确测量并转换被测力为电信号，确保测量结果的准确性。
2. 高稳定性：采用高质量材料和先进工艺制造，具有优异的稳定性和耐用性。
3. 宽测量范围：额定力量为10.0KN，适用于多种需要精确测量的工业应用。
4. 易于安装和集成：传感器设计紧凑，安装方便，并且可以轻松地与其他自动化设备和系统集成。

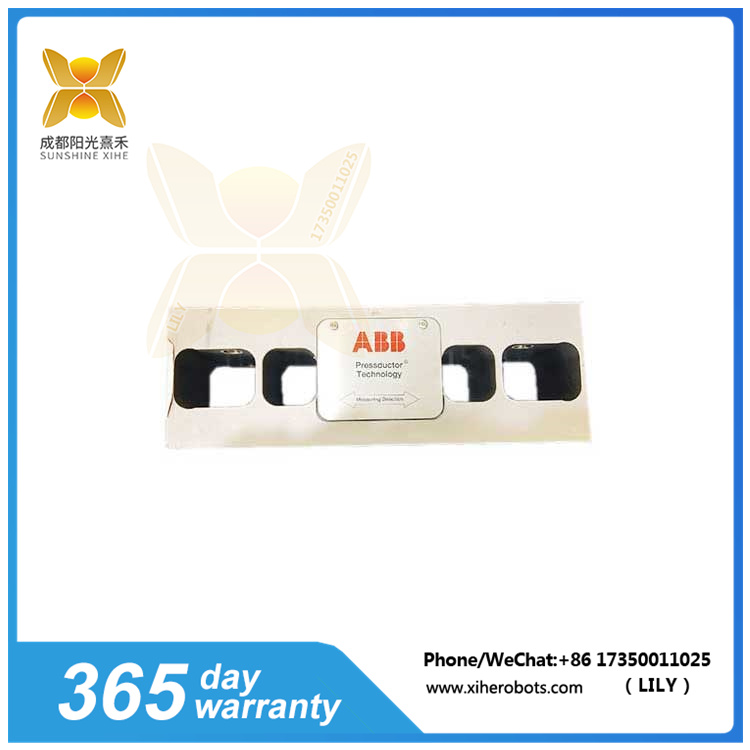

PFTL101B 10KN 3BSE004197R1

产品详情参数 ：PFTL101B 10KN 3BSE004197R1 ABB 压磁式称重传感器

• 型号：PFTL101B-10.0kN
• 产品编号：3BSE004197R1
• 额定力量：10.0KN（即1000公斤力）
• 测量范围：10.0KN
• 输出电压：直流电压信号，与被测力成比例
• 材质：不锈钢
• 连接方式：可能包括圆柱插头连接或固定电缆连接

PFTL101B 10KN 3BSE004197R1 ABB  应用领域：

PFTL101B 10KN 3BSE004197R1称重传感器广泛应用于需要精确测量和控制物料或产品张力的工业领域，如纺织、印刷、包装、纸张、金属加工等行业。在这些行业中，传感器用于确保生产过程中的稳定性和产品质量。

Product details: PFTL101B 10KN 3BSE004197R1 ABB pressure magnetic weighing sensor

The working principle of PFTL101B 10KN 3BSE004197R1 as a piezoelectric sensor is based on the change in magnetic permeability of magnetic materials under mechanical force. The sensor is made of a whole piece of stainless steel and has four holes punched in the stainless steel body. Two sets of coils are wound at a certain angle to each other through these holes. When an alternating current is passed through the primary coil, a magnetic field is generated. When mechanical force is applied in the measurement direction of the sensor, the direction of magnetic field propagation in the primary coil changes, enclosing the secondary coil in the magnetic field and generating induced potential in the secondary coil. The control unit converts this induced potential into a DC voltage signal proportional to the measured force.

High precision: The sensor can accurately measure and convert the measured force into an electrical signal, ensuring the accuracy of the measurement results.
High stability: Made with high-quality materials and advanced technology, it has excellent stability and durability.
Wide measurement range: rated force of 10.0KN, suitable for various industrial applications that require precise measurement.
Easy to install and integrate: The sensor design is compact, easy to install, and can be easily integrated with other automation devices and systems.
Product details and parameters: PFTL101B 10KN 3BSE004197R1 ABB pressure magnetic weighing sensor
Model: PFTL101B-10.0kN
Product Code: 3BSE004197R1
Rated force: 10.0KN (i.e. 1000 kg force)
Measurement range: 10.0KN
Output voltage: DC voltage signal, proportional to the measured force
Material: Stainless steel
Connection method: may include cylindrical plug connection or fixed cable connection
PFTL101B 10KN 3BSE004197R1 ABB application areas:

The PFTL101B 10KN 3BSE004197R1 weighing sensor is widely used in industrial fields that require precise measurement and control of material or product tension, such as textiles, printing, packaging, paper, metal processing, and other industries. In these industries, sensors are used to ensure stability and product quality during the production process.
