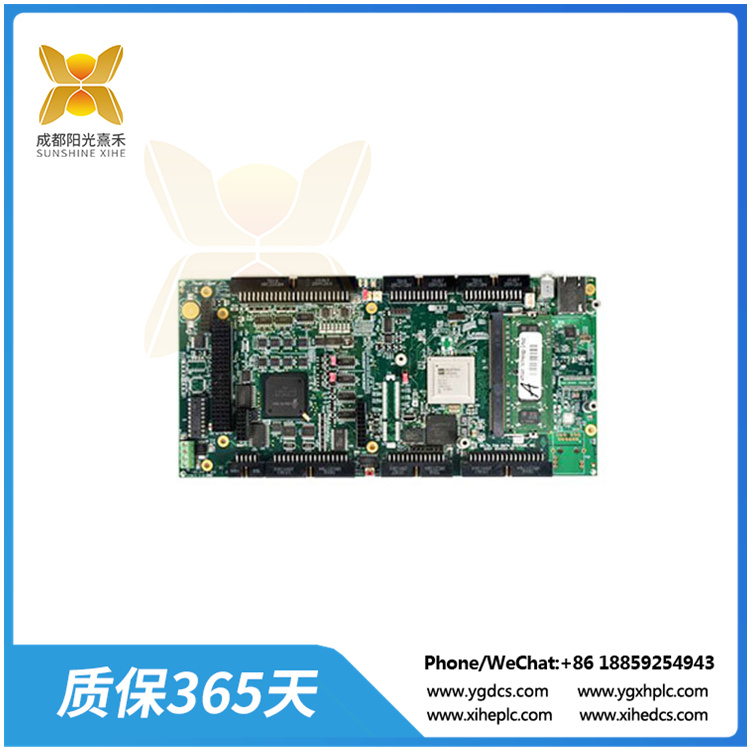

PMAC-Clipper 涡轮快剪运动控制器

Description

PMAC-Clipper 涡轮快剪运动控制器

该PMAC快船控制器是一个全功能的涡轮PMAC设计极为成本敏感的应用程序。这款功能强大，但紧凑且经济高效的多轴控制器标配以太网和RS232通信端口以及内置I/O。Clipper控制器提供了一个完整的Turbo PMAC2 CPU，并提供多达32轴的伺服或步进控制与32个数字I/O点。

特点:
80mhz DSP56303 Turbo PMAC CPU
256k × 24用户SRAM
1M × 8闪存用于用户备份和固件
最新发布固件版本
RS-232串行接口
100mbps以太网接口
4路轴接口电路，每路包括:
-12位+10V模拟输出
-脉冲方向数字输出
-3通道差分/单端编码器输入
-5个输入标志，2个输出标志
-UVW ttl级“大厅”输入

PMAC-Clipper

PMAC-Clipper 涡轮快剪运动控制器

The PMAC Clipper Controller is a full featured Turbo PMAC designed for extremely cost sensitive applications. This powerful, but compact and cost-effective, multi-axis controller comes standard with Ethernet and RS232 communication ports and built in I/O. The Clipper Controller offers a full Turbo PMAC2 CPU and provides up to 32 axes of servo or stepper control with 32 digital I/O points.

Features：
80 MHz DSP56303 Turbo PMAC CPU
256k x 24 user SRAM
1M x 8 flash memory for user backup & firmware
Latest released firmware version
RS-232 serial interface
100 Mbps Ethernet interface
4 channels axis-interface circuitry, each including:
-12-bit +10V analog output
-Pulse-&-direction digital outputs
-3-channel differential/single-ended encoder input
-5 input flags, 2 output flags
-UVW TTL-level “hall” inputs
