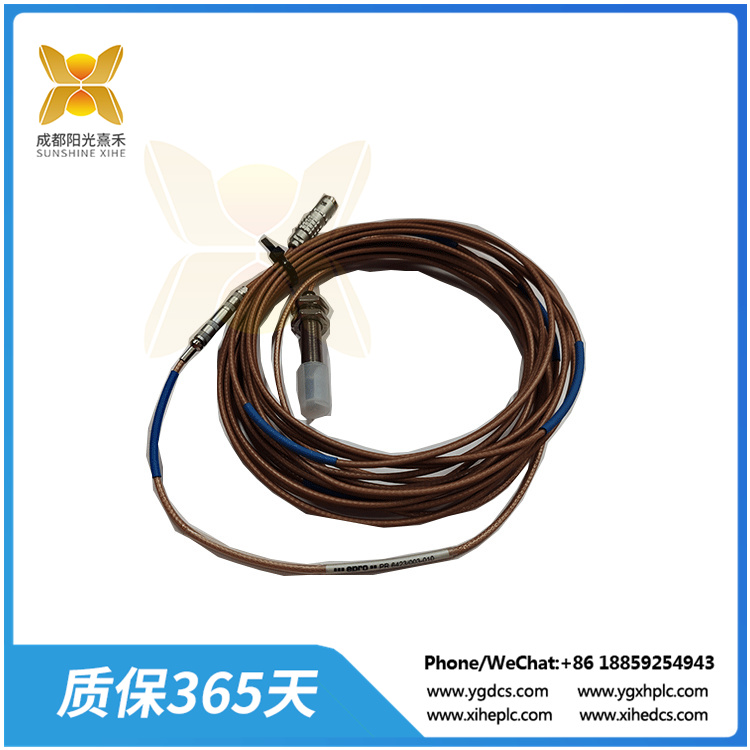

PR6423-003-010 8mm涡流传感器

Description

PR6423-003-010 8mm涡流传感器

非接触式传感器设计用于关键涡轮机械应用，如蒸汽，燃气和水轮机，压缩机，齿轮箱，泵和风扇，以测量径向和轴向动态位移;位置、偏心和速度。

线性测量范围:2mm (80 mils)
初始气隙:0.5 mm (20mils)
增量缩放系数(ISF):ISO: 8 V/mm (203.2 mV/mil)±5%@温度范围0至45°C(+32至+113°F)
偏离最佳拟合直线(DSL):±0.025 mm(±1 mil)@温度范围0至45°C(+32至+113°F)
最小轴直径:25毫米(0.79“)

PR6423-003-010

PR6423-003-010 8mm涡流传感器

Non-contact sensor designed for critical turbomachinery applications such as steam,gas and hydro turbines, compressors, gearboxes, pumps and fans to measure radialand axial shaft dynamic displacement; position, eccentricity and speed.

Linear Measurement Range ：2 mm (80 mils)
Initial Air Gap： 0.5 mm (20 mils)
Incremental Scale Factor (ISF) ：ISO: 8 V/mm (203.2 mV/mil) ± 5%@ temperature range 0 to 45°C(+32 to +113°F)
Deviation from best fit straight line (DSL) ：± 0.025 mm (± 1 mil)@ temperature range 0 to 45°C(+32 to +113°F)
Minimum Shaft Diameter：25 mm (0.79”)
