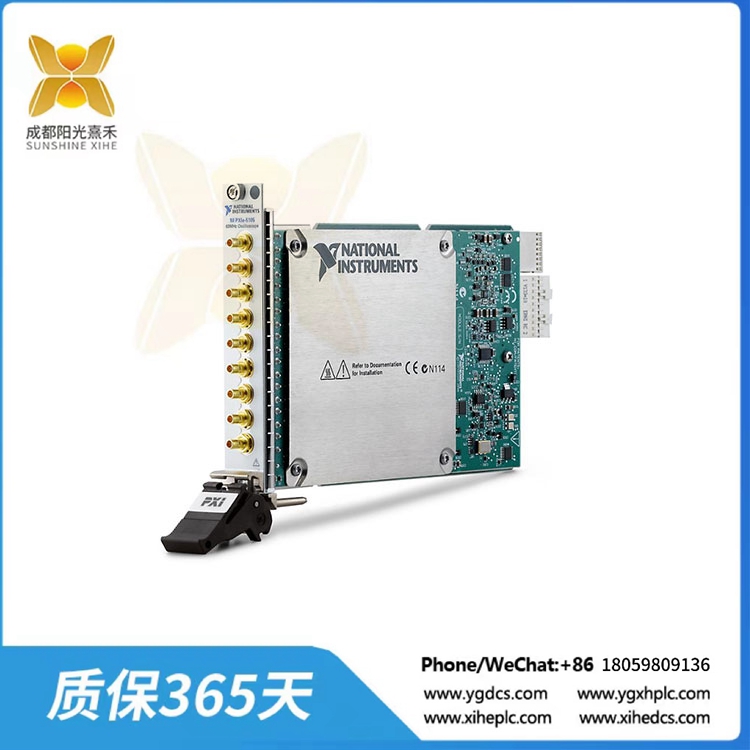

PX1-5105 12位PX示波器

Description

PX1-5105 12位PX示波器

PXle-5105高密度PX示波器具有八个同步采样通道，提供了灵活的耦合、阻抗、电压范围和滤波设置。Px示波器还具有 多个触发模式、高容量板载内存和一一个包含数据流和分析功能的仪器驱动程序。该设备非常适用于需要高达60 MS /s或60 MHz模拟带宽的多通道应用。
PXle-5105还具有高级PX同步和数据流功能。

作为​PXI​系统​的​一部分，​采集​并​分析​时​域​和​频​域​模拟​信号。

PXI​示波器​是​灵活​的​软件​定义​仪器，​通用​于​时​域​和​频​域​测量，​具有​PXI​平台​的​优势。​它们​具有​多​达​8​个​通道，​采样​速率​可​高达​12.5 GS/​s，​模拟​带​宽​为​5 GHz。​基于​PXI​平台，​您​能够​以​皮​秒​级​精度​将​多个​示波器​与​其他​仪器​同步，​满足​高​通道​数​及​混合​信号​应用​的​需求。​这些​仪器​还​具有​多种​触发​模式、​深​层​板​载​内存​以及​包含​数据​流​和​分析​功能​的​驱动​程序​软件​API。

PX1-5105

PX1-5105 12位PX示波器

The PXle-5105 high-density PX oscilloscope features eight synchronous sampling channels, providing flexible coupling, impedance, voltage range, and filtering Settings. The Px oscilloscope also features multiple trigger modes, high capacity onboard memory, and an instrument driver that includes data streaming and analysis functions. The device is ideal for multi-channel applications that require up to 60 MS /s or 60 MHz analog bandwidth.
The PXle-5105 also has advanced PX synchronization and data streaming capabilities.

As part of the PXI system, time domain and frequency domain analog signals are collected and analyzed.
PXI oscilloscope is a flexible software defined instrument, gm in time domain and frequency domain measurement, have the advantage of PXI platform. They have up to eight more channels, the sampling rate can be as high as 12.5 GS/s, analog band width for 5 GHz. Based on PXI platform, you can stay in picosecond level accuracy, multiple oscillograph synchronization with other instruments, meet the needs of high channel number and mixed signal applications. The instrument also has a variety of trigger mode, the deep layer of on-board memory, and contains the data flow and analysis function driver software API.
