PXI-5412 波形发生器设备

Description

PXI-5412 波形发生器设备

PXI-5412 波形发生器设备

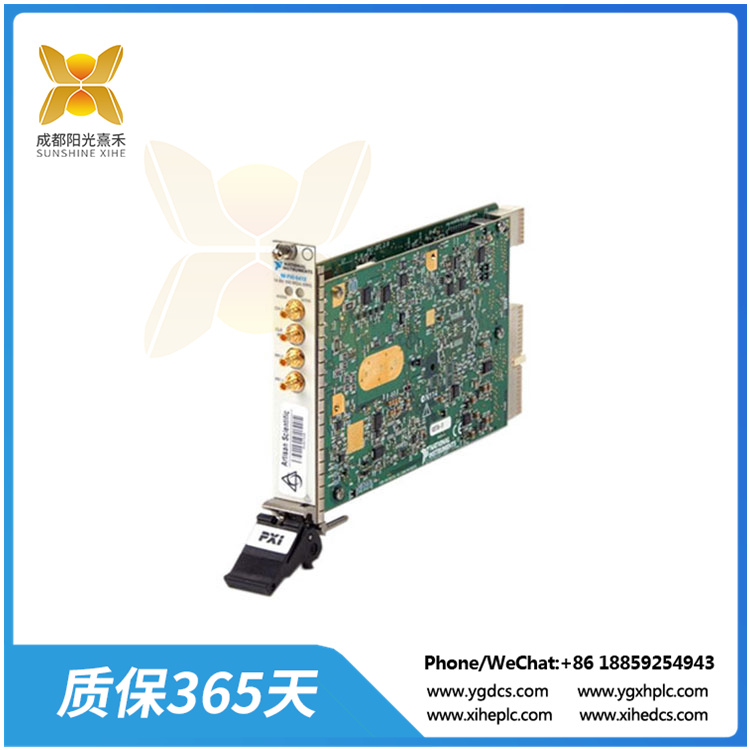

The 100 MS/s, 14-bit waveform generator device pci-5412 can generate any user-defined waveform and standard functions, including sine, square, triangular and sawtooth waves. This arbitrary waveform generator generates signals from 6v to + 6v and uses direct digital synthesis (dds) to precisely generate the waveform.

Settings:
•8mb of onboard memory

Part Number :192274B-01, 192274C-01, 192274E-01L, 779176-01

Features:
14-Bit resolution
Sampling rate: 100ms /s
20mhz analog bandwidth
Function generator simulation mode
The NI PXI-5412 Arbitrary Waveform Generator is a 100 MS/s arbitrary waveform generator with 14-bit resolution and up to 256 MB of on-board memory, in a compact 1-slot 3U PXI module or a single PCI board. Because the NI 5412 uses a PCI bus to communicate with the host, waveforms can be downloaded at speeds of up to 84 MB/s, much faster than traditional GPIB-based instruments. With the NI 5412 generator’s synchronization and Storage Core (SMC) architecture, users can create mixed-signal test systems by synchronizing the generator with digitizers and digital waveform generators/analyzers, or by synchronizing multiple arbitrary waveform generators to form a phase-coherent multichannel generator.
