PXIE-4082 6.5位，1.8 MS/s最大采样率，数字万用表

Description

PXIE-4082 6.5位，1.8 MS/s最大采样率，数字万用表

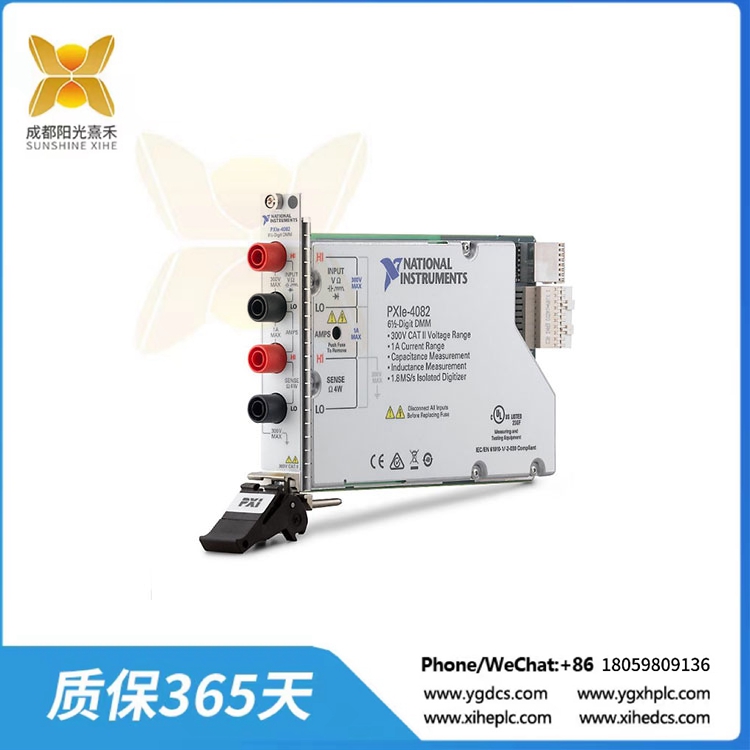

美国国家仪器公司PXIe-4082 PXI数字万用表

美国国家仪器公司PXIe-4082(部件号:783131-01)是一个6½位，±300 V，板载1.8 MS/s隔离数字万用表。该万用表具有高分辨率DMM和数字化仪的典型测量功能。作为DMM, NI PXIe – 4082提供快速，精确的AC/DC电压，AC/DC电流，2线或4线电阻，频率/周期测量和二极管测试。在高压、隔离数字化模式下，PXIe – 4082可以以1.8 MS/s的采样率获取波形。该设备的频率范围为15赫兹至500千赫。

NI PXIe – 4082具有10至23位通用分辨率，电压测量高达300 VDC (300 Vrms)，电流测量高达1 a，电阻测量高达100 MΩ，以及基本电容和电感测量功能。它的功耗为+ 12v负载，最大0.55 a， +3.3 V负载，最大0.55 a。

对于隔离式数字化仪，美国国家仪器公司PXIe – 4082 PXI数字万用表的电压范围为±100 mV至±300 V(直流或交流耦合)，电流范围为±20 mA至±1 A，采样率范围为10 S/ S至1.8 MS/ S。该设备的前面板有4个覆盖的香蕉插头连接器。

NI PXIe-4082 PXI数字万用表推荐的工作温度范围为0℃~ 55℃，存储环境温度范围为-40℃~ 71℃，工作环境相对湿度范围为10% ~ 90%(不凝结)，环境温度25℃时最大工作海拔2000m。NI设备重12盎司，尺寸为8.5 x 0.8 x 5.1英寸。在物理维度上。它的工作和非工作随机振动分别为0.3克和2.4克，频率范围为5赫兹到500赫兹。

PXIe-4082的推荐预热时间为60分钟，达到额定精度，应在2年内至少进行一次外部校准。支持NI-DMM 15.2及以上版本的驱动软件，兼容LabVIEW、LabWindows/CVI、Measurement Studio等软件包或ade。

PXIE-4082

PXIE-4082 6.5位，1.8 MS/s最大采样率，数字万用表

National Instruments PXIe-4082 PXI Digital Multimeter

The National Instruments PXIe-4082 (Part Number: 783131-01) is a 6½-Digit, ±300 V, Onboard 1.8 MS/s Isolated Digital Multimeter. This Multimeter provides the typical measurement capabilities found in a high-resolution DMM and a digitizer. As a DMM, the NI PXIe‑4082 delivers speedy, precise AC/DC voltage, AC/DC current, 2‑ or 4‑wire resistance, and frequency/period measurements, and diode tests. In the high-voltage, isolated digitizer mode, the PXIe‑4082 can acquire waveforms at sample rates of 1.8 MS/s maximum. The device has a frequency range of 15 Hz to 500 kHz.

The NI PXIe‑4082 features a 10 to 23-bit versatile resolution, voltage measurements up to 300 VDC (300 Vrms), current measurements up to 1 A, resistance measurements up to 100 MΩ, and basic capacitance and inductance measurement capabilities. It has a power consumption of +12 V load at 0.55 A maximum, and +3.3 V load at 0.55 A max.

For the isolated digitizer, the voltage of the National Instruments PXIe‑4082 PXI Digital Multimeter ranges from ±100 mV to ±300 V (DC or AC coupled), the current ranges from ±20 mA to ±1 A, and the sample rate range is 10 S/s to 1.8 MS/s. The front panel of the device has 4 shrouded banana plug connectors.

The NI PXIe-4082 PXI Digital Multimeter has a recommended operating temperature range of 0 0C to 55 0 C, a storage ambient temperature range of -40 °C to 71 °C, a relative humidity range of 10% to 90% (noncondensing) in an operating environment, and a maximum altitude is 2,000 m (800mbar) at 25 °C ambient temperature. The NI device weighs 12 oz, and measures 8.5 x 0.8 x 5.1 in. in physical dimensions. It has operating and non-operating random vibrations of 0.3 grms and 2.4 grms respectively – all at a frequency range of 5 Hz to 500 Hz.

The PXIe-4082 has a recommended warm-up time of 60 minutes to rated accuracy, and should be calibrated externally at least once In 2 years. It is run using the NI-DMM 15.2 or later driver software which is compatible with software packages or application development environments (ADEs) such as LabVIEW, LabWindows/CVI, or Measurement Studio.
