PXIE-4139 PXI源测量单元

Description

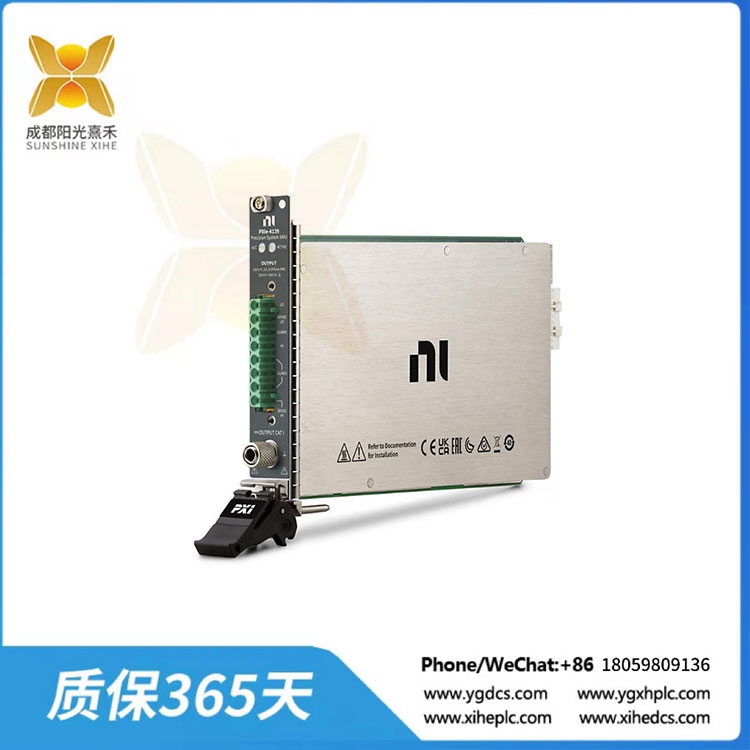

PXIE-4139 PXI源测量单元

PXIe-4139是一款高精度, 系统源测量单元 (SMU), 具有四象限工作能力, 可提供40 W DC电源。该模块配有模数转换器, 确保高精度测量性能, 100 pA电流分辨率, 每条通道的采集率可达1.8 MS/s。该模块采用SourceAdapt技术, 最大限度地提高稳定性和测量精度, 用户可以使用该技术来调整瞬态响应, 以匹配任何负载。PXIe-4139适用于广泛的应用, 包括生产测试, 板级测试, 实验室表征应用, 可用于表征IC, 例如电源管理IC (PMIC), RFIC, LED, 光电收发器等。

PXIE-4139

PXIE-4139 PXI源测量单元

The PXIe-4139 is a high-precision, system Source measurement unit (SMU) with four-quadrant operating capability that delivers 40 W DC power. The module is equipped with an analog-to-digital converter, ensuring high precision measurement performance, 100 pA current resolution, and acquisition rates of up to 1.8 MS/s per channel. The module uses SourceAdapt technology to maximize stability and measurement accuracy, which users can use to adjust the transient response to match any load. The PXIe-4139 is suitable for a wide range of applications including production testing, board level testing, laboratory characterization applications and can be used to characterize ics such as power management ics (PMIC), RFIC, leds, photoelectric transceivers, etc.
