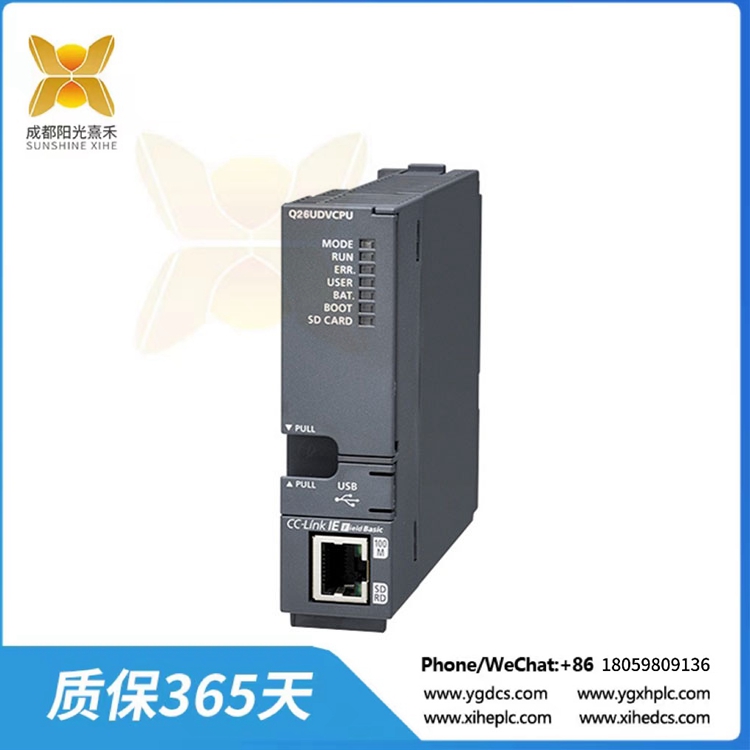

Q03UDVCPU 通用型高速CPU 30K步

Description

Q03UDVCPU 通用型高速CPU 30K步

[控制方式] 存储程序重复运算
[输入输出控制方式] 刷新方式(通过指定直接访问方式输入输出(DX□、DY□)时，可以进行直接访问方式的输入输出 )
[程序语言(顺控程序控制语言)] 继电器符号语言、逻辑符号语言、MELSAP3(SFC)、MELSAP-L、功能块、结构化文本 (ST)
[处理速度(顺控程序指令)] LD X0 1.9ns；MOV D0 D1 3.9ns
[恒定扫描(用于保持扫描时间恒定的功能)] 0.5~2000ms(可以以0.1ms为单位进行设置)(根据参数设置)
[程序容量] 30K步(120K字节)
[存储器容量]
. 程序存储器(驱动器0)：120K字节
. 存储卡(SD)(驱动器2)：可安装SD存储卡(SD/SDHC)容量(最大32G字节 )
. 标准RAM(驱动器3)
未使用扩展SRAM卡盒时：192K字节
使用扩展SRAM卡盒时：未使用扩展SRAM卡盒时的容量+扩展SRAM卡盒的容量(扩展SRAM卡盒最大8M字节 )
.标准ROM(驱动器4)：1025.5K字节
.CPU共享存储器：8K字节
多CPU间高速通信区域：32K字节
[最大存储文件个数]
. 程序存储器：124
. 存储卡(SD)
SD：根文件夹最多512个、子目录最多65534个
SDHC：根文件夹最多65535个、子目录最多65534个
. 标准RAM：使用/未使用扩展SRAM卡盒时都为323
. 标准ROM：256
[智能功能模块参数最多设置个数] 初始设置4096，刷新时2048
[程序存储器的写入次数] 最多10万次
[标准 ROM 的写入次数] 最多10万次
[输入输出软元件点数(程序上可使用点数)] 8192点(X/Y0~1FFF)
[输入输出点数(实际输入输出模块的可访问点数)] 4096点(X/Y0~FFF)
[CPU内置以太网端口的规格]
. 数据传送速度：100/10Mbps
. 通信模式：全双工/半双工
. 传送方法：基带
. 集线器与节点的最长距离：100m
. 最大节点数/连接：10BASE-T串联连接最多4级、100BASE-TX串联连接最多2级
. 连接数：套接字通信、MELSOFT连接及MC协议合计16个，FTP用1个
[锁存(停点保持 )范围] L0~8191(默认值8192点)(可以为B、F、V、T、ST、C、D、W设置锁存范围)(通过参数设置)
[RUN/PAUSE触点] 可以在X0~1FFF中设置RUN/PAUSE触点各1点(通过参数设置 )
[允许瞬停时间] 0.58A(CPU模块本体)/0.6A(安装扩展SRAM卡盒时)
[外形尺寸H*W*D] 98*27.4*115mm
[重量] 0.2kg

Q03UDVCPU

Q03UDVCPU 通用型高速CPU 30K步

[Control mode] Stored program repeat operation
[Input/Output control mode] Refresh mode (by specifying direct access to input/output (DX□, DY□), you can perform direct access to input/output)
Relay symbol language, Logic symbol Language, MELSAP3(SFC), MELSAP-L, Function block, Structured text (ST)
[Processing speed (compliant program instruction)] LD X0 1.9ns; MOV D0 D1 3.9ns
[Constant scan (used to keep the scanning time constant)] 0.5~2000ms(can be set in 0.1ms)(according to the parameter setting)
[Program capacity] 30K steps (120K bytes)
[Memory capacity]
Program memory (drive 0) : 120K bytes
.Memory Card (SD)(Drive 2) : Can be installed SD memory card (SD/SDHC) capacity (up to 32GB bytes)
.Standard RAM(Drive 3)
When the extended SRAM cartridge is not used: 192K bytes
When using extended SRAM cartridges: Capacity without using extended SRAM cartridges + Capacity of extended SRAM cartridges (maximum 8M bytes of extended SRAM cartridges)
Standard ROM(Drive 4) : 1025.5K bytes
CPU shared memory: 8K bytes
High-speed communication area between multiple cpus: 32K bytes
[Maximum number of stored files]
Program memory: 124
.Memory Card (SD)
SD: A maximum of 512 root folders and 65534 subdirectories
SDHC: contains a maximum of 65,535 root folders and 65,534 subdirectories
Standard RAM: 323 when using/not using extended SRAM cartridges
Standard ROM: 256
[Maximum number of smart function module parameters] The value is 4096 at the initial stage and 2048 when refreshed
[Number of writes to program memory] up to 100,000 times
[Write times of standard ROM] up to 100,000 times
[I/O soft component points (program points available)] 8192 points (X/Y0~1FFF)
[I/O points (accessible points of actual I/O modules)] 4096 points (X/Y0~FFF)
[CPU built-in Ethernet port specifications]
Data transfer speed: 100/10Mbps
Communication mode: full duplex/Half duplex
Transmission method: Baseband
The maximum distance between the hub and the node: 100m
Maximum node number/connection: 10BASE-T series connection up to 4 levels, 100BASE-TX series connection up to 2 levels
Number of connections: socket communication, MELSOFT connection and MC protocol total 16, FTP with 1
[Latch (stop hold) range] L0~8191(default 8192 points)(can set the latch range for B, F, V, T, ST, C, D, W)(by parameter setting)
[RUN/PAUSE contact] You can set 1 point for each RUN/PAUSE contact in X0 to 1FFF (by parameter setting).
[Allowed quick stop time] 0.58A(CPU module body)/0.6A(when installing expansion SRAM card box)
[Dimensions H*W*D] 98*27.4*115mm
[Weight] 0.2kg
