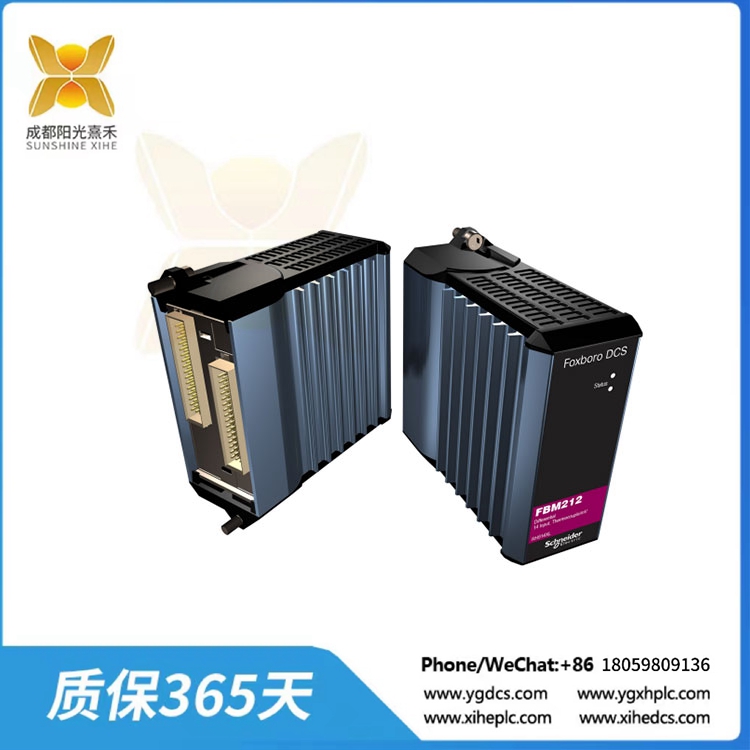

RH914XL-FBM212 热电偶/mV差分输入模块

Description

RH914XL-FBM212 热电偶/mV差分输入模块

概述
差分热电偶/mV输入模块(FBM212)包含14个差分隔离热电偶输入通道，和一个差分隔离RTD参考结温度补偿通道(用于终端温度传感)。每个热电偶/mV通道接受各种温度范围的标准热电偶，每个热电偶都提供烧坏检测(上量程)。每个通道都有一个差分输入，以允许通道之间的电压差异而不会引入检测到的错误。
该模块执行将来自现场传感器的电气输入信号连接到可选冗余现场总线所需的信号转换。它执行模拟输入应用程序，该程序为转换时间和变化率限制提供可配置选项。

特性
•14通道输入热电偶信号
•1隔离RTD参考结补偿通道(用于终端温度传感)
•每个通道有一个差分输入
•坚固耐用的设计适用于G3(恶劣)环境的外壳
•执行模拟输入应用程序，提供转换时间和可配置的变化率限制选项
•通过每个通道的sigma-delta数据转换实现高精度
•终端组件(TAs)用于本地或远程连接现场布线到fbm212

RH914XL-FBM212

RH914XL-FBM212 热电偶/mV差分输入模块

Overview
The Differential Thermocouple/mV Input Module (FBM212) contains 14 differentiallyisolated thermocouple input channels, and one differentially isolated RTD referencejunction temperature compensation channel (for terminal temperature sensing). Eachthermocouple/mV channel accepts standard thermocouples for various temperatureranges, and each provides thermocouple burnout detection (up-scale). Each channelhas a differential input to allow voltage differences between channels withoutintroducing detected errors.
The module performs the signal conversion required to interface the electrical inputsignals from the field sensors to the optionally redundant Fieldbus. It executes ananalog input application program, which provides configurable options for ConversionTime and Rate of Change Limits.

Features
• 14 channels for input of thermocouple signals
• 1 isolated RTD reference junction compensation channel (for terminaltemperature sensing)
• Each channel has a differential input
• Rugged design suitable for enclosure in Class G3 (harsh) environments
• Execution of an analog input application program that provides conversion timeand configurable options for Rate of Change Limits
• High accuracy achieved by sigma-delta data conversions for each channel
• Termination Assemblies (TAs) for locally or remotely connecting field wiring to theFBM212
