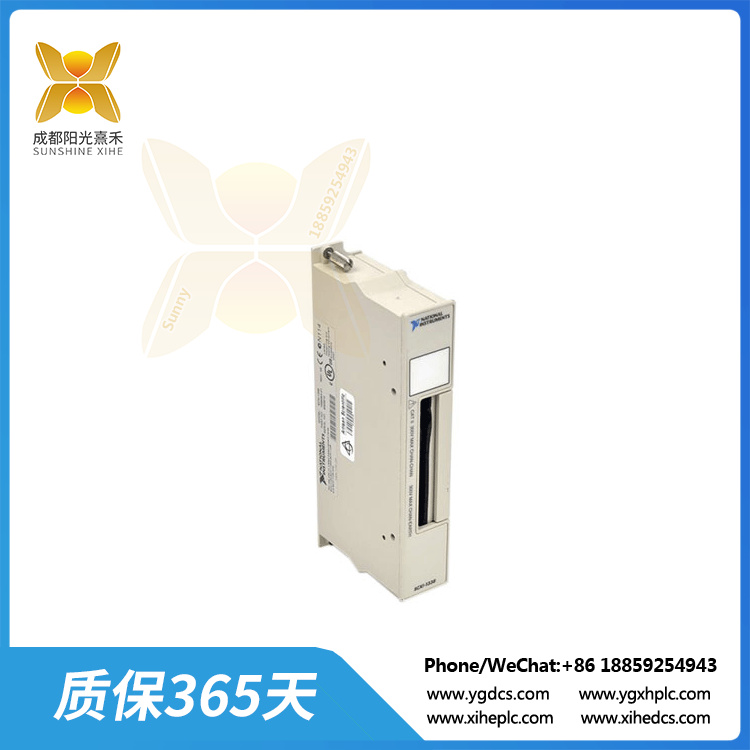

SCXI-1338 输入输出模块

Description

SCXI-1338 输入输出模块

SCXI-1338是National Instruments（美国国家仪器公司，简称NI）生产的SCXI（Signal Conditioning for the Compact FieldPoint and CompactRIO Systems）系列信号调理模块之一。SCXI系列模块用于CompactRIO和Compact FieldPoint系统，为各种传感器和信号源提供所需的信号调理功能。

具体来说，SCXI-1338模块通常用作差分电压输入模块，用于接收差分信号并将其转换为适合后续处理的信号。差分输入方式对于减少共模噪声和提高信号质量非常有效。

该模块可能具有以下特点：

1. 差分输入：能够接收差分信号，这有助于减少电气噪声的干扰。
2. 高共模抑制比：能够有效地抑制共模噪声，提高信号的信噪比。
3. 高分辨率：可能提供较高的分辨率，以精确测量输入信号。
4. 可编程设置：可能允许用户通过软件配置输入范围、增益等参数。
5. 紧凑设计：SCXI系列模块通常设计为紧凑型，便于在有限的空间内安装和使用。

在使用SCXI-1338模块时，用户需要根据具体的应用需求配置模块参数，并将其与CompactRIO或Compact FieldPoint系统连接，以实现信号的采集、调理和传输。

SCXI-1338 输入输出模块

SCXI-1338 is a product of National Instruments, SCXI (Signal Conditioning for the Compact FieldPoint and CompactRIO Systems) series of signal conditioning modules produced by NI. The SCXI series modules are used in CompactRIO and Compact FieldPoint systems to provide the required signal conditioning capabilities for a variety of sensors and signal sources.

Specifically, the SCXI-1338 module is typically used as a differential voltage input module to receive differential signals and convert them into signals suitable for subsequent processing. The differential input method is very effective for reducing common mode noise and improving signal quality.

The module may have the following characteristics:

Differential input: The ability to receive differential signals, which helps reduce electrical noise interference.
High common mode rejection ratio: It can effectively suppress common mode noise and improve the signal-to-noise ratio of the signal.
High resolution: High resolution is possible to accurately measure the input signal.
Programmable Settings: May allow users to configure parameters such as input range, gain, etc. through software.
Compact design: SCXI series modules are typically designed to be compact and easy to install and use in a limited space.

When using the SCXI-1338 module, the user needs to configure the module parameters according to the specific application requirements, and connect it to the CompactRIO or Compact FieldPoint system to achieve signal acquisition, conditioning and transmission.
