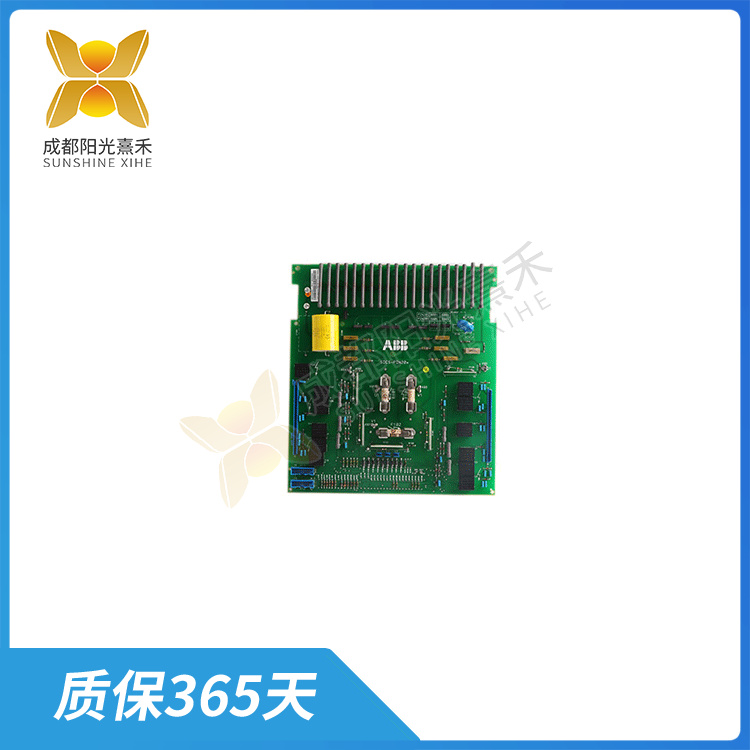

SDCS-PIN-205B 数字控制器 采用了4000V的防雷设计

Description

SDCS-PIN-205B 数字控制器 采用了4000V的防雷设计

SDCS-PIN-205B是一款模块，具体属于PLC（可编程逻辑控制器）的输入接口电路模块。PLC的输入接口电路是其与外部设备通信的关键部分，负责将现场的开关量信号（如按钮、开关、行程开关等无源触点信号）转换成PLC内部处理的标准信号。

SDCS-PIN-205B这样的输入接口电路模块通常具有多种特性和功能，以满足不同的应用需求。首先，它支持标准规范中的预定通信速率，这意味着它可以与多种设备和系统进行高速、稳定的数据传输。此外，该模块还提供了拨码开关手动设置功能，用户可以通过拨码开关手动设置其通信速率，或者选择速率自适应模式，让模块自动选择最适合的通信速率。

除了通信功能外，SDCS-PIN-205B还具有出色的电气性能。它采用了4000V的防雷设计，可以有效地保护模块免受雷电等电气干扰的影响。同时，该模块还具有1.5A的过流保护和600W的浪涌保护功能，可以进一步提高系统的稳定性和可靠性。

在电源和保护方面，SDCS-PIN-205B采用了DC9-36V的宽冗余双电源设计，这意味着它可以在较宽的电压范围内正常工作，提高了模块的适应性和稳定性。此外，该模块还提供了DC1500V的电源隔离和反接保护功能，进一步增强了系统的安全性。

总的来说，SDCS-PIN-205B是一款功能强大、性能稳定的PLC输入接口电路模块。它支持多种通信速率、具有出色的电气性能和电源保护功能，可以广泛应用于各种工业自动化和控制系统领域。在使用时，需要按照相关的说明和规范进行正确的安装和配置，以保证其正常工作和稳定性。同时，也需要根据具体的应用场景选择合适的通信协议和接口，以满足系统的需求。

SDCS-PIN-205B 数字控制器 采用了4000V的防雷设计

Sdss-pin-205b is a module, specifically belonging to the PLC (programmable logic controller) input interface circuit module. The PLC input interface circuit is a key part of its communication with external devices, which is responsible for converting the on-site switching signals (such as passive contact signals such as buttons, switches, travel switches) into the standard signals processed within the PLC.

Input interface circuit modules such as SDSS-PIN-205B usually have a variety of characteristics and functions to meet different application requirements. First, it supports a predetermined communication rate in the standard specification, which means that it can carry out high-speed, stable data transmission with a variety of devices and systems. In addition, the module also provides the dip switch manual setting function, the user can manually set their communication rate through the dip switch, or select the rate adaptive mode, so that the module automatically selects the most suitable communication rate.

In addition to the communication function, the SDCS PIN-205B also has excellent electrical performance. It uses a 4000V lightning protection design, which can effectively protect the module from electrical interference such as lightning. At the same time, the module also has 1.5A overcurrent protection and 600W surge protection functions, which can further improve the stability and reliability of the system.

In terms of power supply and protection, the SDCS-PIN-205B uses a wide redundant dual power supply design of DC9-36V, which means that it can operate properly over a wide voltage range, improving the module’s adaptability and stability. In addition, the module also provides DC1500V power isolation and reverse protection functions, further enhancing the safety of the system.

In general, SDSS-PIN-205B is a powerful and stable PLC input interface circuit module. It supports multiple communication rates, has excellent electrical performance and power protection functions, and can be widely used in various industrial automation and control systems. When in use, it is necessary to correctly install and configure it according to the relevant instructions and specifications to ensure its normal operation and stability. At the same time, you also need to select appropriate communication protocols and interfaces based on specific application scenarios to meet the system requirements.
